gem5::ProbePoint Class Reference

ProbePoint base class; again used to simplify use of ProbePoints in containers and used as to define interface for adding removing listeners to the ProbePoint. More...

#include <probe.hh>

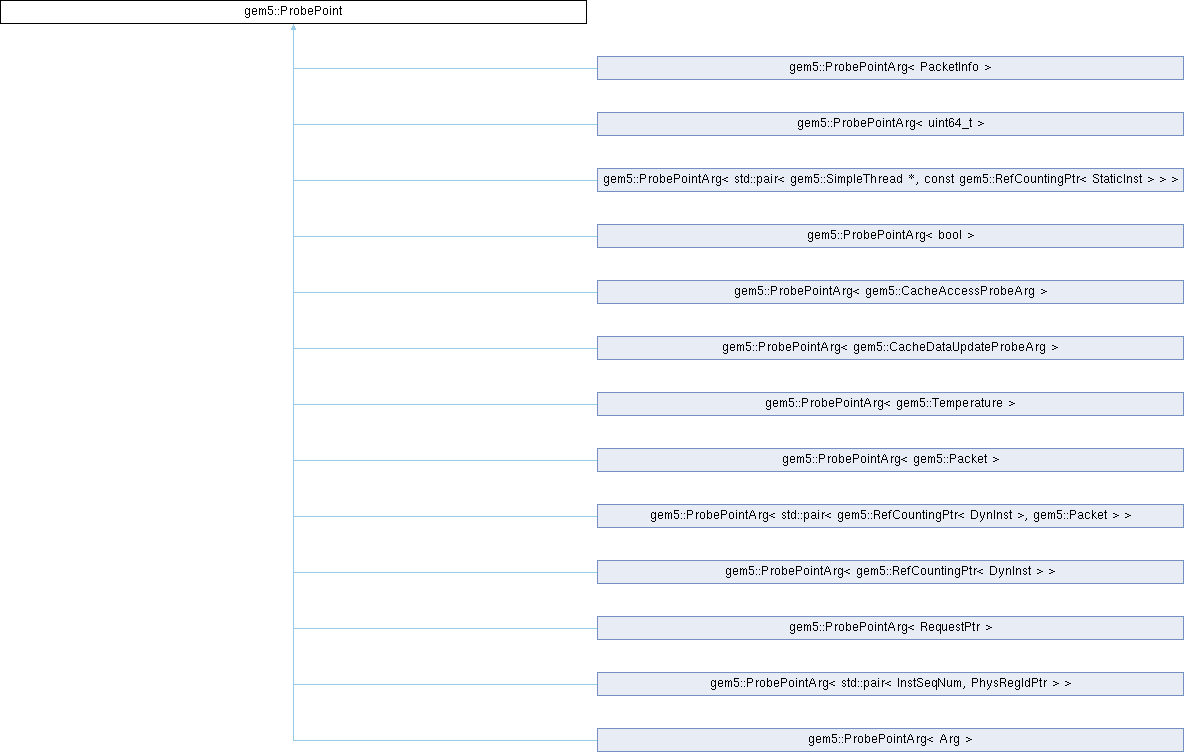

Inheritance diagram for gem5::ProbePoint:

Public Member Functions
	ProbePoint (ProbeManager *manager, const std::string &name)
virtual	~ProbePoint ()
virtual void	addListener (ProbeListener *listener)=0
virtual void	removeListener (ProbeListener *listener)=0
const std::string &	getName () const

Protected Attributes
const std::string	name

Detailed Description

ProbePoint base class; again used to simplify use of ProbePoints in containers and used as to define interface for adding removing listeners to the ProbePoint.

Definition at line 122 of file probe.hh.

Constructor & Destructor Documentation

ProbePoint()

gem5::ProbePoint::ProbePoint	(	ProbeManager *	manager,
		const std::string &	name )

Definition at line 48 of file probe.cc.

References gem5::ProbeManager::addPoint(), and name.

Referenced by gem5::ProbePointArg< PacketInfo >::ProbePointArg().

~ProbePoint()

virtual gem5::ProbePoint::~ProbePoint ( )

inlinevirtual

Definition at line 128 of file probe.hh.

Member Function Documentation

addListener()

virtual void gem5::ProbePoint::addListener ( ProbeListener * listener )

pure virtual

Implemented in gem5::ProbePointArg< Arg >, gem5::ProbePointArg< bool >, gem5::ProbePointArg< gem5::CacheAccessProbeArg >, gem5::ProbePointArg< gem5::CacheDataUpdateProbeArg >, gem5::ProbePointArg< gem5::Packet >, gem5::ProbePointArg< gem5::RefCountingPtr< DynInst > >, gem5::ProbePointArg< gem5::Temperature >, gem5::ProbePointArg< PacketInfo >, gem5::ProbePointArg< PacketInfo >, gem5::ProbePointArg< RequestPtr >, gem5::ProbePointArg< std::pair< gem5::RefCountingPtr< DynInst >, gem5::Packet > >, gem5::ProbePointArg< std::pair< gem5::SimpleThread *, const gem5::RefCountingPtr< StaticInst > > >, gem5::ProbePointArg< std::pair< InstSeqNum, PhysRegIdPtr > >, gem5::ProbePointArg< uint64_t >, and gem5::ProbePointArg< uint64_t >.

getName()

const std::string & gem5::ProbePoint::getName ( ) const

inline

Definition at line 132 of file probe.hh.

References name.

Referenced by gem5::ProbeManager::addPoint(), and gem5::ArmISA::PMU::RegularEvent::enable().

removeListener()

virtual void gem5::ProbePoint::removeListener ( ProbeListener * listener )

pure virtual

Implemented in gem5::ProbePointArg< Arg >, gem5::ProbePointArg< bool >, gem5::ProbePointArg< gem5::CacheAccessProbeArg >, gem5::ProbePointArg< gem5::CacheDataUpdateProbeArg >, gem5::ProbePointArg< gem5::Packet >, gem5::ProbePointArg< gem5::RefCountingPtr< DynInst > >, gem5::ProbePointArg< gem5::Temperature >, gem5::ProbePointArg< PacketInfo >, gem5::ProbePointArg< PacketInfo >, gem5::ProbePointArg< RequestPtr >, gem5::ProbePointArg< std::pair< gem5::RefCountingPtr< DynInst >, gem5::Packet > >, gem5::ProbePointArg< std::pair< gem5::SimpleThread *, const gem5::RefCountingPtr< StaticInst > > >, gem5::ProbePointArg< std::pair< InstSeqNum, PhysRegIdPtr > >, gem5::ProbePointArg< uint64_t >, and gem5::ProbePointArg< uint64_t >.

Member Data Documentation

name

const std::string gem5::ProbePoint::name

protected

Definition at line 125 of file probe.hh.

Referenced by gem5::ProbePointArg< PacketInfo >::addListener(), getName(), ProbePoint(), gem5::ProbePointArg< PacketInfo >::ProbePointArg(), and gem5::ProbePointArg< PacketInfo >::removeListener().

---

The documentation for this class was generated from the following files:

• sim/probe/probe.hh
• sim/probe/probe.cc
