Semihosting for RV32 and RV64. More...

#include <semihosting.hh>

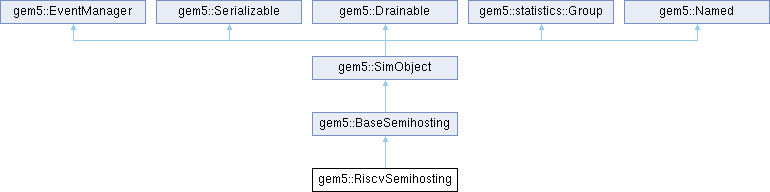

Inheritance diagram for gem5::RiscvSemihosting:

Classes
struct	Abi32

struct	Abi64

struct	RiscvSemihostingAbi

Public Types
enum class	Opcode : uint32_t { Prefix = 0x01f01013 , EBreak = 0x00100073 , Suffix = 0x40705013 }

enum	Operation { SYS_OPEN = 0x01 , SYS_CLOSE = 0x02 , SYS_WRITEC = 0x03 , SYS_WRITE0 = 0x04 , SYS_WRITE = 0x05 , SYS_READ = 0x06 , SYS_READC = 0x07 , SYS_ISERROR = 0x08 , SYS_ISTTY = 0x09 , SYS_SEEK = 0x0A , SYS_FLEN = 0x0C , SYS_TMPNAM = 0x0D , SYS_REMOVE = 0x0E , SYS_RENAME = 0x0F , SYS_CLOCK = 0x10 , SYS_TIME = 0x11 , SYS_SYSTEM = 0x12 , SYS_ERRNO = 0x13 , SYS_GET_CMDLINE = 0x15 , SYS_HEAPINFO = 0x16 , SYS_EXIT = 0x18 , SYS_EXIT_EXTENDED = 0x20 , SYS_ELAPSED = 0x30 , SYS_TICKFREQ = 0x31 , MaxStandardOp = 0xFF , SYS_GEM5_PSEUDO_OP = 0x100 }

using	SemiCall = SemiCallBase<RiscvSemihosting, Abi32, Abi64>

Public Types inherited from gem5::BaseSemihosting
typedef std::pair< uint64_t, SemiErrno >	RetErrno

Public Types inherited from gem5::SimObject
typedef SimObjectParams	Params

Public Member Functions
PortProxy &	portProxy (ThreadContext *tc) const override

ByteOrder	byteOrder (ThreadContext *tc) const override

	RiscvSemihosting (const RiscvSemihostingParams &p)

bool	isSemihostingEBreak (ExecContext *xc)
	Perform a RISC-V Semihosting call.

bool	call (ThreadContext *tc)

Public Member Functions inherited from gem5::BaseSemihosting
void	serialize (CheckpointOut &cp) const override
	Serialize an object.

void	unserialize (CheckpointIn &cp) override
	Unserialize an object.

RetErrno	callOpen (ThreadContext *tc, const Addr name_base, int fmode, size_t name_size)

RetErrno	callClose (ThreadContext *tc, Handle handle)

RetErrno	callWriteC (ThreadContext *tc, InPlaceArg c)

RetErrno	callWrite0 (ThreadContext *tc, InPlaceArg str)

RetErrno	callWrite (ThreadContext *tc, Handle handle, Addr buffer, size_t size)

RetErrno	callRead (ThreadContext *tc, Handle handle, Addr buffer, size_t size)

RetErrno	callReadC (ThreadContext *tc)

RetErrno	callIsError (ThreadContext *tc, int64_t status)

RetErrno	callIsTTY (ThreadContext *tc, Handle handle)

RetErrno	callSeek (ThreadContext *tc, Handle handle, uint64_t pos)

RetErrno	callFLen (ThreadContext *tc, Handle handle)

RetErrno	callTmpNam (ThreadContext *tc, Addr buffer, uint64_t id, size_t size)

RetErrno	callRemove (ThreadContext *tc, Addr name_base, size_t name_size)

RetErrno	callRename (ThreadContext *tc, Addr from_addr, size_t from_size, Addr to_addr, size_t to_size)

RetErrno	callClock (ThreadContext *tc)

RetErrno	callTime (ThreadContext *tc)

RetErrno	callSystem (ThreadContext *tc, Addr cmd_addr, size_t cmd_size)

RetErrno	callErrno (ThreadContext *tc)

RetErrno	callGetCmdLine (ThreadContext *tc, Addr addr, InPlaceArg size_arg)

void	gatherHeapInfo (ThreadContext *tc, bool aarch64, Addr &heap_base, Addr &heap_limit, Addr &stack_base, Addr &stack_limit)

RetErrno	callHeapInfo32 (ThreadContext *tc, Addr block_addr)

RetErrno	callHeapInfo64 (ThreadContext *tc, Addr block_addr)

RetErrno	callExit32 (ThreadContext *tc, InPlaceArg code)

RetErrno	callExit64 (ThreadContext *tc, uint64_t code, uint64_t subcode)

RetErrno	callExitExtended (ThreadContext *tc, uint64_t code, uint64_t subcode)

RetErrno	callElapsed32 (ThreadContext *tc, InPlaceArg low, InPlaceArg high)

RetErrno	callElapsed64 (ThreadContext *tc, InPlaceArg ticks)

RetErrno	callTickFreq (ThreadContext *tc)

template<typename Abi>
void	unrecognizedCall (ThreadContext tc, const char format, uint64_t op)

Public Member Functions inherited from gem5::SimObject
const Params &	params () const

	SimObject (const Params &p)

virtual	~SimObject ()

virtual void	init ()
	init() is called after all C++ SimObjects have been created and all ports are connected.

virtual void	loadState (CheckpointIn &cp)
	loadState() is called on each SimObject when restoring from a checkpoint.

virtual void	initState ()
	initState() is called on each SimObject when not restoring from a checkpoint.

virtual void	regProbePoints ()
	Register probe points for this object.

virtual void	regProbeListeners ()
	Register probe listeners for this object.

ProbeManager *	getProbeManager ()
	Get the probe manager for this object.

virtual Port &	getPort (const std::string &if_name, PortID idx=InvalidPortID)
	Get a port with a given name and index.

virtual void	startup ()
	startup() is the final initialization call before simulation.

DrainState	drain () override
	Provide a default implementation of the drain interface for objects that don't need draining.

virtual void	memWriteback ()
	Write back dirty buffers to memory using functional writes.

virtual void	memInvalidate ()
	Invalidate the contents of memory buffers.

void	serialize (CheckpointOut &cp) const override
	Serialize an object.

void	unserialize (CheckpointIn &cp) override
	Unserialize an object.

Public Member Functions inherited from gem5::EventManager
EventQueue *	eventQueue () const

void	schedule (Event &event, Tick when)

void	deschedule (Event &event)

void	reschedule (Event &event, Tick when, bool always=false)

void	schedule (Event *event, Tick when)

void	deschedule (Event *event)

void	reschedule (Event *event, Tick when, bool always=false)

void	wakeupEventQueue (Tick when=(Tick) -1)
	This function is not needed by the usual gem5 event loop but may be necessary in derived EventQueues which host gem5 on other schedulers.

void	setCurTick (Tick newVal)

	EventManager (EventManager &em)
	Event manger manages events in the event queue.

	EventManager (EventManager *em)

	EventManager (EventQueue *eq)

Public Member Functions inherited from gem5::Serializable
	Serializable ()

virtual	~Serializable ()

void	serializeSection (CheckpointOut &cp, const char *name) const
	Serialize an object into a new section.

void	serializeSection (CheckpointOut &cp, const std::string &name) const

void	unserializeSection (CheckpointIn &cp, const char *name)
	Unserialize an a child object.

void	unserializeSection (CheckpointIn &cp, const std::string &name)

Public Member Functions inherited from gem5::Drainable
DrainState	drainState () const
	Return the current drain state of an object.

virtual void	notifyFork ()
	Notify a child process of a fork.

Public Member Functions inherited from gem5::statistics::Group
	Group (Group parent, const char name=nullptr)
	Construct a new statistics group.

virtual	~Group ()

virtual void	regStats ()
	Callback to set stat parameters.

virtual void	resetStats ()
	Callback to reset stats.

virtual void	preDumpStats ()
	Callback before stats are dumped.

void	addStat (statistics::Info *info)
	Register a stat with this group.

const std::map< std::string, Group * > &	getStatGroups () const
	Get all child groups associated with this object.

const std::vector< Info * > &	getStats () const
	Get all stats associated with this object.

void	addStatGroup (const char name, Group block)
	Add a stat block as a child of this block.

const Info *	resolveStat (std::string name) const
	Resolve a stat by its name within this group.

void	mergeStatGroup (Group *block)
	Merge the contents (stats & children) of a block to this block.

	Group ()=delete

	Group (const Group &)=delete

Group &	operator= (const Group &)=delete

Public Member Functions inherited from gem5::Named
	Named (std::string_view name_)

virtual	~Named ()=default

virtual std::string	name () const

Static Public Member Functions
static PortProxy &	portProxyImpl (ThreadContext *tc)

Static Public Member Functions inherited from gem5::BaseSemihosting
static FILE *	getSTDIO (const char stream_name, const std::string &name, const char mode)

Static Public Member Functions inherited from gem5::SimObject
static void	serializeAll (const std::string &cpt_dir)
	Create a checkpoint by serializing all SimObjects in the system.

static SimObject *	find (const char *name)
	Find the SimObject with the given name and return a pointer to it.

static void	setSimObjectResolver (SimObjectResolver *resolver)
	There is a single object name resolver, and it is only set when simulation is restoring from checkpoints.

static SimObjectResolver *	getSimObjectResolver ()
	There is a single object name resolver, and it is only set when simulation is restoring from checkpoints.

Static Public Member Functions inherited from gem5::Serializable
static const std::string &	currentSection ()
	Gets the fully-qualified name of the active section.

static void	generateCheckpointOut (const std::string &cpt_dir, std::ofstream &outstream)
	Generate a checkpoint file so that the serialization can be routed to it.

Protected Member Functions
bool	call64 (ThreadContext *tc)

bool	call32 (ThreadContext *tc)

Protected Member Functions inherited from gem5::BaseSemihosting
	BaseSemihosting (const BaseSemihostingParams &p)

unsigned	calcTickShift () const

uint64_t	semiTick (Tick tick) const

void	semiExit (uint64_t code, uint64_t subcode)

std::optional< std::string >	readString (ThreadContext *tc, Addr ptr, size_t len)

Protected Member Functions inherited from gem5::Drainable
	Drainable ()

virtual	~Drainable ()

virtual void	drainResume ()
	Resume execution after a successful drain.

void	signalDrainDone () const
	Signal that an object is drained.

Static Protected Attributes
static const std::map< uint32_t, SemiCall >	calls

Additional Inherited Members
Public Attributes inherited from gem5::BaseSemihosting
uint16_t	tmpNameIndex = 0

Static Public Attributes inherited from gem5::BaseSemihosting
static const std::vector< const char * >	fmodes

static const std::map< uint64_t, const char * >	exitCodes

static const std::array< uint8_t, 5 >	features

static const std::map< const std::string, FILE * >	stdioMap

Protected Types inherited from gem5::BaseSemihosting
typedef uint64_t	SemiErrno

using	Handle = size_t

Static Protected Member Functions inherited from gem5::BaseSemihosting
static RetErrno	retError (SemiErrno e)

static RetErrno	retOK (uint64_t r)

Protected Attributes inherited from gem5::BaseSemihosting
const std::string	cmdLine

const Addr	memReserve

const Addr	stackSize

const time_t	timeBase
	Base time when the simulation started.

const unsigned	tickShift
	Number of bits to right shift gem5 ticks to fit in a uint32_t.

SemiErrno	semiErrno

std::string	filesRootDir

std::vector< std::unique_ptr< FileBase > >	files

FILE *	stdin

FILE *	stdout

FILE *	stderr

Protected Attributes inherited from gem5::SimObject
const SimObjectParams &	_params
	Cached copy of the object parameters.

Protected Attributes inherited from gem5::EventManager
EventQueue *	eventq
	A pointer to this object's event queue.

Detailed Description

Semihosting for RV32 and RV64.

Definition at line 55 of file semihosting.hh.

Member Typedef Documentation

◆ SemiCall

using gem5::RiscvSemihosting::SemiCall = SemiCallBase<RiscvSemihosting, Abi32, Abi64>

Definition at line 134 of file semihosting.hh.

Member Enumeration Documentation

◆ Opcode

enum class gem5::RiscvSemihosting::Opcode : uint32_t

strong

Enumerator
Prefix
EBreak
Suffix

Definition at line 58 of file semihosting.hh.

◆ Operation

enum gem5::RiscvSemihosting::Operation

Enumerator
SYS_OPEN
SYS_CLOSE
SYS_WRITEC
SYS_WRITE0
SYS_WRITE
SYS_READ
SYS_READC
SYS_ISERROR
SYS_ISTTY
SYS_SEEK
SYS_FLEN
SYS_TMPNAM
SYS_REMOVE
SYS_RENAME
SYS_CLOCK
SYS_TIME
SYS_SYSTEM
SYS_ERRNO
SYS_GET_CMDLINE
SYS_HEAPINFO
SYS_EXIT
SYS_EXIT_EXTENDED
SYS_ELAPSED
SYS_TICKFREQ
MaxStandardOp
SYS_GEM5_PSEUDO_OP

Definition at line 102 of file semihosting.hh.

Constructor & Destructor Documentation

◆ RiscvSemihosting()

gem5::RiscvSemihosting::RiscvSemihosting ( const RiscvSemihostingParams & p )

explicit

Definition at line 100 of file semihosting.cc.

References gem5::BaseSemihosting::BaseSemihosting(), and gem5::MipsISA::p.

Referenced by gem5::RiscvSemihosting::RiscvSemihostingAbi< ArgType >::State::State().

Member Function Documentation

◆ byteOrder()

ByteOrder gem5::RiscvSemihosting::byteOrder ( ThreadContext * tc ) const

inlineoverridevirtual

Implements gem5::BaseSemihosting.

Definition at line 73 of file semihosting.hh.

◆ call()

bool gem5::RiscvSemihosting::call ( ThreadContext * tc )

Definition at line 144 of file semihosting.cc.

References call32(), call64(), gem5::ThreadContext::getIsaPtr(), and panic_if.

Referenced by call32(), and call64().

◆ call32()

bool gem5::RiscvSemihosting::call32 ( ThreadContext * tc )

protected

Definition at line 124 of file semihosting.cc.

References gem5::RiscvISA::int_reg::A0, call(), calls, DPRINTF, gem5::ArmISA::err, gem5::ThreadContext::getReg(), gem5::X86ISA::op, gem5::BaseSemihosting::semiErrno, and gem5::BaseSemihosting::unrecognizedCall().

Referenced by call().

◆ call64()

bool gem5::RiscvSemihosting::call64 ( ThreadContext * tc )

protected

Definition at line 105 of file semihosting.cc.

References gem5::RiscvISA::int_reg::A0, call(), calls, DPRINTF, gem5::ArmISA::err, gem5::ThreadContext::getReg(), gem5::ArmISA::mask, gem5::X86ISA::op, gem5::BaseSemihosting::semiErrno, and gem5::BaseSemihosting::unrecognizedCall().

Referenced by call().

◆ isSemihostingEBreak()

bool gem5::RiscvSemihosting::isSemihostingEBreak ( ExecContext * xc )

Perform a RISC-V Semihosting call.

Definition at line 162 of file semihosting.cc.

References DPRINTF, EBreak, gem5::gtoh(), gem5::PCStateBase::instAddr(), gem5::RiscvISA::PageBytes, gem5::ExecContext::pcState(), portProxyImpl(), Prefix, gem5::roundDown(), Suffix, gem5::ExecContext::tcBase(), and gem5::PortProxy::tryReadBlob().

◆ portProxy()

PortProxy & gem5::RiscvSemihosting::portProxy ( ThreadContext * tc ) const

inlineoverridevirtual

Implements gem5::BaseSemihosting.

Definition at line 68 of file semihosting.hh.

References portProxyImpl().

◆ portProxyImpl()

PortProxy & gem5::RiscvSemihosting::portProxyImpl ( ThreadContext * tc )

static

Definition at line 152 of file semihosting.cc.

References gem5::FullSystem.

Referenced by isSemihostingEBreak(), and portProxy().

Member Data Documentation

◆ calls

const std::map< uint32_t, RiscvSemihosting::SemiCall > gem5::RiscvSemihosting::calls

staticprotected

Definition at line 144 of file semihosting.hh.
