#include <sc_signed.hh>

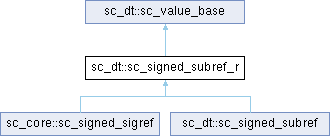

Inheritance diagram for sc_dt::sc_signed_subref_r:

Public Member Functions
virtual	~sc_signed_subref_r ()

	sc_signed_subref_r (const sc_signed_subref_r &a)

int	length () const

	operator sc_unsigned () const

int	to_int () const

unsigned int	to_uint () const

long	to_long () const

unsigned long	to_ulong () const

int64	to_int64 () const

uint64	to_uint64 () const

double	to_double () const

const std::string	to_string (sc_numrep numrep=SC_DEC) const

const std::string	to_string (sc_numrep numrep, bool w_prefix) const

virtual int	concat_length (bool *xz_present_p) const

virtual uint64	concat_get_uint64 () const

virtual bool	concat_get_ctrl (sc_digit *dst_p, int low_i) const

virtual bool	concat_get_data (sc_digit *dst_p, int low_i) const

bool	and_reduce () const

bool	nand_reduce () const

bool	or_reduce () const

bool	nor_reduce () const

bool	xor_reduce () const

bool	xnor_reduce () const

void	print (::std::ostream &os=::std::cout) const

Public Member Functions inherited from sc_dt::sc_value_base
virtual	~sc_value_base ()

Protected Member Functions
	sc_signed_subref_r ()

void	initialize (const sc_signed *obj_p, int left_, int right_)

Protected Attributes
int	m_left

sc_signed *	m_obj_p

int	m_right

Private Member Functions
const sc_signed_subref_r &	operator= (const sc_signed_subref_r &)

Friends
class	sc_signed

class	sc_signed_signal

class	sc_unsigned

Detailed Description

Definition at line 814 of file sc_signed.hh.

Constructor & Destructor Documentation

◆ sc_signed_subref_r() [1/2]

sc_dt::sc_signed_subref_r::sc_signed_subref_r ( )

inlineprotected

Definition at line 822 of file sc_signed.hh.

References m_left, m_obj_p, and m_right.

Referenced by operator=(), sc_core::sc_signed_sigref::sc_signed_sigref(), sc_dt::sc_signed_subref::sc_signed_subref(), sc_dt::sc_signed_subref::sc_signed_subref(), and sc_signed_subref_r().

◆ ~sc_signed_subref_r()

virtual sc_dt::sc_signed_subref_r::~sc_signed_subref_r ( )

inlinevirtual

Definition at line 835 of file sc_signed.hh.

◆ sc_signed_subref_r() [2/2]

sc_dt::sc_signed_subref_r::sc_signed_subref_r ( const sc_signed_subref_r & a )

inline

Definition at line 838 of file sc_signed.hh.

References a, m_left, m_obj_p, m_right, and sc_signed_subref_r().

Member Function Documentation

◆ and_reduce()

bool sc_dt::sc_signed_subref_r::and_reduce ( ) const

inline

Definition at line 2376 of file sc_signed.hh.

References m_left, m_obj_p, m_right, sc_signed, and sc_dt::sc_signed::test().

◆ concat_get_ctrl()

bool sc_dt::sc_signed_subref_r::concat_get_ctrl	(	sc_digit *	dst_p,
		int	low_i ) const

virtual

Reimplemented from sc_dt::sc_value_base.

Definition at line 57 of file sc_signed.cc.

◆ concat_get_data()

bool sc_dt::sc_signed_subref_r::concat_get_data	(	sc_digit *	dst_p,
		int	low_i ) const

virtual

Reimplemented from sc_dt::sc_value_base.

Definition at line 65 of file sc_signed.cc.

◆ concat_get_uint64()

uint64 sc_dt::sc_signed_subref_r::concat_get_uint64 ( ) const

virtual

Reimplemented from sc_dt::sc_value_base.

Definition at line 49 of file sc_signed.cc.

◆ concat_length()

virtual int sc_dt::sc_signed_subref_r::concat_length ( bool * xz_present_p ) const

inlinevirtual

Reimplemented from sc_dt::sc_value_base.

Definition at line 868 of file sc_signed.hh.

References m_left, and m_right.

◆ initialize()

void sc_dt::sc_signed_subref_r::initialize	(	const sc_signed *	obj_p,
		int	left_,
		int	right_ )

inlineprotected

Definition at line 826 of file sc_signed.hh.

References m_left, m_obj_p, m_right, and sc_signed.

Referenced by sc_dt::sc_signed::operator()(), sc_dt::sc_signed::operator()(), sc_dt::sc_signed::range(), and sc_dt::sc_signed::range().

◆ length()

int sc_dt::sc_signed_subref_r::length ( ) const

inline

Definition at line 845 of file sc_signed.hh.

References m_left, and m_right.

Referenced by sc_core::sc_signed_sigref::operator=(), sc_dt::sc_signed_subref::operator=(), and sc_dt::sc_signed_subref::operator=().

◆ nand_reduce()

bool sc_dt::sc_signed_subref_r::nand_reduce ( ) const

inline

Definition at line 2386 of file sc_signed.hh.

References sc_signed_subref_r::and_reduce().

◆ nor_reduce()

bool sc_dt::sc_signed_subref_r::nor_reduce ( ) const

inline

Definition at line 2402 of file sc_signed.hh.

References sc_signed_subref_r::or_reduce().

◆ operator sc_unsigned()

sc_dt::sc_signed_subref_r::operator sc_unsigned ( ) const

Definition at line 73 of file sc_signed.cc.

◆ operator=()

const sc_signed_subref_r & sc_dt::sc_signed_subref_r::operator= ( const sc_signed_subref_r & )

private

References sc_signed_subref_r().

◆ or_reduce()

bool sc_dt::sc_signed_subref_r::or_reduce ( ) const

inline

Definition at line 2392 of file sc_signed.hh.

References m_left, m_obj_p, m_right, sc_signed, and sc_dt::sc_signed::test().

◆ print()

void sc_dt::sc_signed_subref_r::print ( ::std::ostream & os = ::std::cout ) const

inline

Definition at line 888 of file sc_signed.hh.

References sc_dt::SC_DEC, sc_dt::sc_io_base(), sc_io_show_base(), and to_string().

◆ to_double()

double sc_dt::sc_signed_subref_r::to_double ( ) const

Definition at line 123 of file sc_signed.cc.

◆ to_int()

int sc_dt::sc_signed_subref_r::to_int ( ) const

Definition at line 81 of file sc_signed.cc.

◆ to_int64()

int64 sc_dt::sc_signed_subref_r::to_int64 ( ) const

Definition at line 109 of file sc_signed.cc.

◆ to_long()

long sc_dt::sc_signed_subref_r::to_long ( ) const

Definition at line 95 of file sc_signed.cc.

◆ to_string() [1/2]

const std::string sc_dt::sc_signed_subref_r::to_string	(	sc_numrep	numrep,
		bool	w_prefix ) const

Definition at line 140 of file sc_signed.cc.

◆ to_string() [2/2]

const std::string sc_dt::sc_signed_subref_r::to_string ( sc_numrep numrep = SC_DEC ) const

Definition at line 132 of file sc_signed.cc.

Referenced by print().

◆ to_uint()

unsigned int sc_dt::sc_signed_subref_r::to_uint ( ) const

Definition at line 88 of file sc_signed.cc.

◆ to_uint64()

uint64 sc_dt::sc_signed_subref_r::to_uint64 ( ) const

Definition at line 116 of file sc_signed.cc.

◆ to_ulong()

unsigned long sc_dt::sc_signed_subref_r::to_ulong ( ) const

Definition at line 102 of file sc_signed.cc.

◆ xnor_reduce()

bool sc_dt::sc_signed_subref_r::xnor_reduce ( ) const

inline

Definition at line 2419 of file sc_signed.hh.

References sc_signed_subref_r::xor_reduce().

◆ xor_reduce()

bool sc_dt::sc_signed_subref_r::xor_reduce ( ) const

inline

Definition at line 2408 of file sc_signed.hh.

References m_left, m_obj_p, m_right, sc_signed, and sc_dt::sc_signed::test().

Friends And Related Symbol Documentation

◆ sc_signed

friend class sc_signed

friend

Definition at line 816 of file sc_signed.hh.

References sc_signed.

Referenced by and_reduce(), sc_core::sc_signed_sigref::concat_set(), initialize(), or_reduce(), sc_signed, and xor_reduce().

◆ sc_signed_signal

friend class sc_signed_signal

friend

Definition at line 817 of file sc_signed.hh.

References sc_signed_signal.

Referenced by sc_signed_signal.

◆ sc_unsigned

friend class sc_unsigned

friend

Definition at line 818 of file sc_signed.hh.

References sc_unsigned.

Referenced by sc_core::sc_signed_sigref::concat_set(), sc_core::sc_signed_sigref::concat_set(), sc_dt::sc_signed_subref::operator=(), and sc_unsigned.

Member Data Documentation

◆ m_left

int sc_dt::sc_signed_subref_r::m_left

protected

◆ m_obj_p

sc_signed* sc_dt::sc_signed_subref_r::m_obj_p

protected

Definition at line 895 of file sc_signed.hh.

Referenced by and_reduce(), sc_core::sc_signed_sigref::initialize(), initialize(), or_reduce(), sc_signed_subref_r(), sc_signed_subref_r(), and xor_reduce().

◆ m_right

int sc_dt::sc_signed_subref_r::m_right

protected

The documentation for this class was generated from the following files:

systemc/ext/dt/int/sc_signed.hh
systemc/dt/int/sc_signed.cc
