sc_semaphore Class Reference

#include <sc_semaphore.hh>

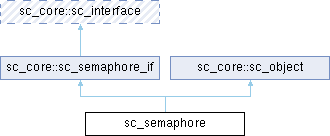

Inheritance diagram for sc_semaphore:

Public Member Functions
	sc_semaphore (int)
	sc_semaphore (const char *name, int)
virtual int	wait ()
virtual int	trywait ()
virtual int	post ()
virtual int	get_value () const
virtual const char *	kind () const
Public Member Functions inherited from sc_core::sc_interface
virtual void	register_port (sc_port_base &, const char *)
virtual const sc_event &	default_event () const
virtual	~sc_interface ()
Public Member Functions inherited from sc_core::sc_object
const char *	name () const
const char *	basename () const
virtual void	print (std::ostream &=std::cout) const
virtual void	dump (std::ostream &=std::cout) const
virtual const std::vector< sc_object * > &	get_child_objects () const
virtual const std::vector< sc_event * > &	get_child_events () const
sc_object *	get_parent_object () const
bool	add_attribute (sc_attr_base &)
sc_attr_base *	get_attribute (const std::string &)
sc_attr_base *	remove_attribute (const std::string &)
void	remove_all_attributes ()
int	num_attributes () const
sc_attr_cltn &	attr_cltn ()
const sc_attr_cltn &	attr_cltn () const
sc_simcontext *	simcontext () const

Private Member Functions
	sc_semaphore (const sc_semaphore &)
sc_semaphore &	operator= (const sc_semaphore &)

Private Attributes
int	_value
sc_gem5::InternalScEvent	posted

Additional Inherited Members
Protected Member Functions inherited from sc_core::sc_semaphore_if
	sc_semaphore_if ()
Protected Member Functions inherited from sc_core::sc_interface
	sc_interface ()
Protected Member Functions inherited from sc_core::sc_object
	sc_object ()
	sc_object (const char *)
	sc_object (const sc_object &)
sc_object &	operator= (const sc_object &)
virtual	~sc_object ()

Detailed Description

Definition at line 38 of file sc_semaphore.hh.

Constructor & Destructor Documentation

sc_semaphore() [1/3]

sc_core::sc_semaphore::sc_semaphore ( int value )

explicit

Definition at line 38 of file sc_semaphore.cc.

sc_semaphore() [2/3]

sc_core::sc_semaphore::sc_semaphore	(	const char *	name,
		int	value )

Definition at line 42 of file sc_semaphore.cc.

sc_semaphore() [3/3]

sc_core::sc_semaphore::sc_semaphore ( const sc_semaphore & )

inlineprivate

Definition at line 53 of file sc_semaphore.hh.

Member Function Documentation

get_value()

int sc_core::sc_semaphore::get_value ( ) const

virtual

Implements sc_core::sc_semaphore_if.

Definition at line 77 of file sc_semaphore.cc.

kind()

virtual const char * sc_core::sc_semaphore::kind ( ) const

inlinevirtual

Reimplemented from sc_core::sc_object.

Definition at line 49 of file sc_semaphore.hh.

operator=()

sc_semaphore & sc_core::sc_semaphore::operator= ( const sc_semaphore & )

inlineprivate

Definition at line 57 of file sc_semaphore.hh.

post()

int sc_core::sc_semaphore::post ( )

virtual

Implements sc_core::sc_semaphore_if.

Definition at line 70 of file sc_semaphore.cc.

trywait()

int sc_core::sc_semaphore::trywait ( )

virtual

Implements sc_core::sc_semaphore_if.

Definition at line 60 of file sc_semaphore.cc.

wait()

int sc_core::sc_semaphore::wait ( )

virtual

Implements sc_core::sc_semaphore_if.

Definition at line 52 of file sc_semaphore.cc.

Member Data Documentation

_value

int sc_core::sc_semaphore::_value

private

Definition at line 59 of file sc_semaphore.hh.

posted

sc_gem5::InternalScEvent sc_core::sc_semaphore::posted

private

Definition at line 60 of file sc_semaphore.hh.

---

The documentation for this class was generated from the following files:

• systemc/ext/channel/sc_semaphore.hh
• systemc/channel/sc_semaphore.cc
