sc_fifo_in_if< T > Class Template Reference

#include <sc_fifo_in_if.hh>

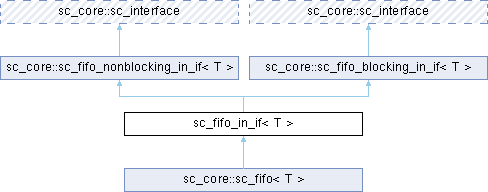

Inheritance diagram for sc_fifo_in_if< T >:

Public Member Functions
virtual int	num_available () const=0
Public Member Functions inherited from sc_core::sc_fifo_nonblocking_in_if< T >
virtual bool	nb_read (T &)=0
virtual const sc_event &	data_written_event () const =0
Public Member Functions inherited from sc_core::sc_interface
virtual void	register_port (sc_port_base &, const char *)
virtual const sc_event &	default_event () const
virtual	~sc_interface ()
Public Member Functions inherited from sc_core::sc_fifo_blocking_in_if< T >
virtual void	read (T &)=0
virtual T	read ()=0

Protected Member Functions
	sc_fifo_in_if ()
Protected Member Functions inherited from sc_core::sc_interface
	sc_interface ()

Private Member Functions
	sc_fifo_in_if (const sc_fifo_in_if< T > &)
sc_fifo_in_if< T > &	operator= (const sc_fifo_in_if< T > &)

Detailed Description

template<class T>
class sc_fifo_in_if< T >

Definition at line 55 of file sc_fifo_in_if.hh.

Constructor & Destructor Documentation

sc_fifo_in_if() [1/2]

template<class T>

sc_core::sc_fifo_in_if< T >::sc_fifo_in_if ( )

inlineprotected

Definition at line 62 of file sc_fifo_in_if.hh.

sc_fifo_in_if() [2/2]

template<class T>

sc_core::sc_fifo_in_if< T >::sc_fifo_in_if ( const sc_fifo_in_if< T > & )

private

Member Function Documentation

num_available()

template<class T>

virtual int sc_core::sc_fifo_in_if< T >::num_available ( ) const

pure virtual

operator=()

template<class T>

sc_fifo_in_if< T > & sc_core::sc_fifo_in_if< T >::operator= ( const sc_fifo_in_if< T > & )

inlineprivate

Definition at line 67 of file sc_fifo_in_if.hh.

---

The documentation for this class was generated from the following file:

• systemc/ext/channel/sc_fifo_in_if.hh
