#include <atomic.hh>

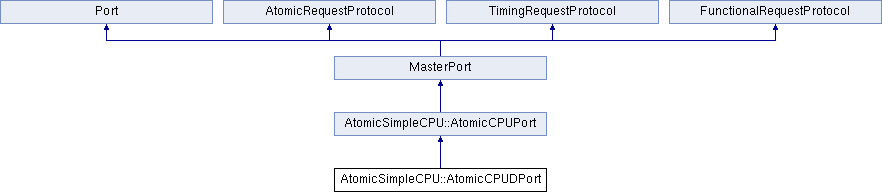

Inheritance diagram for AtomicSimpleCPU::AtomicCPUDPort:

Public Member Functions
	AtomicCPUDPort (const std::string &_name, BaseSimpleCPU *_cpu)

bool	isSnooping () const
	Determine if this master port is snooping or not. More...

Public Member Functions inherited from AtomicSimpleCPU::AtomicCPUPort
	AtomicCPUPort (const std::string &_name, BaseSimpleCPU *_cpu)

Public Member Functions inherited from MasterPort
	MasterPort (const std::string &name, SimObject *_owner, PortID id=InvalidPortID)
	Master port. More...

virtual	~MasterPort ()

void	bind (Port &peer) override
	Bind this master port to a slave port. More...

void	unbind () override
	Unbind this master port and the associated slave port. More...

AddrRangeList	getAddrRanges () const
	Get the address ranges of the connected slave port. More...

void	printAddr (Addr a)
	Inject a PrintReq for the given address to print the state of that address throughout the memory system. More...

Tick	sendAtomic (PacketPtr pkt)
	Send an atomic request packet, where the data is moved and the state is updated in zero time, without interleaving with other memory accesses. More...

Tick	sendAtomicBackdoor (PacketPtr pkt, MemBackdoorPtr &backdoor)
	Send an atomic request packet like above, but also request a backdoor to the data being accessed. More...

void	sendFunctional (PacketPtr pkt) const
	Send a functional request packet, where the data is instantly updated everywhere in the memory system, without affecting the current state of any block or moving the block. More...

bool	sendTimingReq (PacketPtr pkt)
	Attempt to send a timing request to the slave port by calling its corresponding receive function. More...

bool	tryTiming (PacketPtr pkt) const
	Check if the slave can handle a timing request. More...

bool	sendTimingSnoopResp (PacketPtr pkt)
	Attempt to send a timing snoop response packet to the slave port by calling its corresponding receive function. More...

virtual void	sendRetryResp ()
	Send a retry to the slave port that previously attempted a sendTimingResp to this master port and failed. More...

Public Member Functions inherited from Port
virtual	~Port ()
	Virtual destructor due to inheritance. More...

Port &	getPeer ()
	Return a reference to this port's peer. More...

const std::string	name () const
	Return port name (for DPRINTF). More...

PortID	getId () const
	Get the port id. More...

bool	isConnected () const
	Is this port currently connected to a peer? More...

void	takeOverFrom (Port *old)
	A utility function to make it easier to swap out ports. More...

Public Attributes
Addr	cacheBlockMask

Protected Member Functions
virtual Tick	recvAtomicSnoop (PacketPtr pkt)
	Receive an atomic snoop request packet from our peer. More...

virtual void	recvFunctionalSnoop (PacketPtr pkt)
	Receive a functional snoop request packet from the peer. More...

Protected Member Functions inherited from AtomicSimpleCPU::AtomicCPUPort
bool	recvTimingResp (PacketPtr pkt)
	Receive a timing response from the peer. More...

void	recvReqRetry ()
	Called by the peer if sendTimingReq was called on this peer (causing recvTimingReq to be called on the peer) and was unsuccessful. More...

Protected Member Functions inherited from MasterPort
virtual void	recvRangeChange ()
	Called to receive an address range change from the peer slave port. More...

Tick	recvAtomicSnoop (PacketPtr pkt) override
	Default implementations. More...

void	recvFunctionalSnoop (PacketPtr pkt) override
	Receive a functional snoop request packet from the peer. More...

void	recvTimingSnoopReq (PacketPtr pkt) override
	Receive a timing snoop request from the peer. More...

void	recvRetrySnoopResp () override
	Called by the peer if sendTimingSnoopResp was called on this protocol (causing recvTimingSnoopResp to be called on the peer) and was unsuccessful. More...

Protected Member Functions inherited from Port
	Port (const std::string &_name, PortID _id)
	Abstract base class for ports. More...

Protected Member Functions inherited from AtomicRequestProtocol
Tick	send (AtomicResponseProtocol *peer, PacketPtr pkt)
	Send an atomic request packet, where the data is moved and the state is updated in zero time, without interleaving with other memory accesses. More...

Tick	sendBackdoor (AtomicResponseProtocol *peer, PacketPtr pkt, MemBackdoorPtr &backdoor)
	Send an atomic request packet like above, but also request a backdoor to the data being accessed. More...

Protected Member Functions inherited from TimingRequestProtocol
bool	sendReq (TimingResponseProtocol *peer, PacketPtr pkt)
	Attempt to send a timing request to the peer by calling its corresponding receive function. More...

bool	trySend (TimingResponseProtocol *peer, PacketPtr pkt) const
	Check if the peer can handle a timing request. More...

bool	sendSnoopResp (TimingResponseProtocol *peer, PacketPtr pkt)
	Attempt to send a timing snoop response packet to it's peer by calling its corresponding receive function. More...

void	sendRetryResp (TimingResponseProtocol *peer)
	Send a retry to the peer that previously attempted a sendTimingResp to this protocol and failed. More...

Protected Member Functions inherited from FunctionalRequestProtocol
void	send (FunctionalResponseProtocol *peer, PacketPtr pkt) const
	Send a functional request packet, where the data is instantly updated everywhere in the memory system, without affecting the current state of any block or moving the block. More...

Protected Attributes
BaseSimpleCPU *	cpu

Protected Attributes inherited from MasterPort
SimObject &	owner

Protected Attributes inherited from Port
const PortID	id
	A numeric identifier to distinguish ports in a vector, and set to InvalidPortID in case this port is not part of a vector. More...

Port *	_peer
	A pointer to this port's peer. More...

bool	_connected
	Whether this port is currently connected to a peer port. More...

Detailed Description

Definition at line 138 of file atomic.hh.

Constructor & Destructor Documentation

◆ AtomicCPUDPort()

AtomicSimpleCPU::AtomicCPUDPort::AtomicCPUDPort	(	const std::string &	_name,
		BaseSimpleCPU *	_cpu
	)

inline

Definition at line 142 of file atomic.hh.

Member Function Documentation

◆ isSnooping()

bool AtomicSimpleCPU::AtomicCPUDPort::isSnooping ( ) const

inlinevirtual

Determine if this master port is snooping or not.

The default implementation returns false and thus tells the neighbour we are not snooping. Any master port that wants to receive snoop requests (e.g. a cache connected to a bus) has to override this function.

Returns: true if the port should be considered a snooper

Reimplemented from MasterPort.

Definition at line 148 of file atomic.hh.

◆ recvAtomicSnoop()

Tick AtomicSimpleCPU::AtomicCPUDPort::recvAtomicSnoop ( PacketPtr pkt )

protectedvirtual

Receive an atomic snoop request packet from our peer.

Implements AtomicRequestProtocol.

Definition at line 284 of file atomic.cc.

References Packet::cmdString(), DPRINTF, Packet::getAddr(), TheISA::handleLockedSnoop(), Packet::isInvalidate(), Packet::isWrite(), and BaseSimpleCPU::wakeup().

◆ recvFunctionalSnoop()

void AtomicSimpleCPU::AtomicCPUDPort::recvFunctionalSnoop ( PacketPtr pkt )

protectedvirtual

Receive a functional snoop request packet from the peer.

Implements FunctionalRequestProtocol.

Definition at line 314 of file atomic.cc.

References Packet::cmdString(), DPRINTF, Packet::getAddr(), TheISA::handleLockedSnoop(), Packet::isInvalidate(), and BaseSimpleCPU::wakeup().

Member Data Documentation

◆ cacheBlockMask

Addr AtomicSimpleCPU::AtomicCPUDPort::cacheBlockMask

Definition at line 150 of file atomic.hh.

Referenced by AtomicSimpleCPU::threadSnoop(), and AtomicSimpleCPU::writeMem().

◆ cpu

BaseSimpleCPU* AtomicSimpleCPU::AtomicCPUDPort::cpu

protected

Definition at line 152 of file atomic.hh.

The documentation for this class was generated from the following files:

cpu/simple/atomic.hh
cpu/simple/atomic.cc
