GenericISA::SimplePCState< MachInst > Class Template Reference

#include <types.hh>

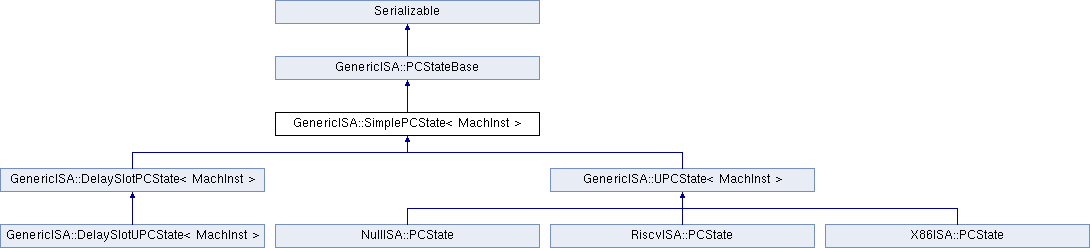

Inheritance diagram for GenericISA::SimplePCState< MachInst >:

Public Member Functions
Addr	pc () const
void	pc (Addr val)
Addr	npc () const
void	npc (Addr val)
void	set (Addr val)
void	setNPC (Addr val)
	SimplePCState ()
	SimplePCState (Addr val)
bool	branching () const
void	advance ()
Public Member Functions inherited from GenericISA::PCStateBase
Addr	instAddr () const
	Returns the memory address the bytes of this instruction came from. More...
Addr	nextInstAddr () const
	Returns the memory address the bytes of the next instruction came from. More...
MicroPC	microPC () const
	Returns the current micropc. More...
void	set (Addr val)
	Force this PC to reflect a particular value, resetting all its other fields around it. More...
bool	operator== (const PCStateBase &opc) const
bool	operator!= (const PCStateBase &opc) const
void	serialize (CheckpointOut &cp) const override
	Serialize an object. More...
void	unserialize (CheckpointIn &cp) override
	Unserialize an object. More...
Public Member Functions inherited from Serializable
	Serializable ()
virtual	~Serializable ()
void	serializeSection (CheckpointOut &cp, const char *name) const
	Serialize an object into a new section. More...
void	serializeSection (CheckpointOut &cp, const std::string &name) const
void	unserializeSection (CheckpointIn &cp, const char *name)
	Unserialize an a child object. More...
void	unserializeSection (CheckpointIn &cp, const std::string &name)

Protected Types
typedef PCStateBase	Base

Additional Inherited Members
Static Public Member Functions inherited from Serializable
static const std::string &	currentSection ()
	Get the fully-qualified name of the active section. More...
static void	serializeAll (const std::string &cpt_dir)
static void	unserializeGlobals (CheckpointIn &cp)
Static Public Attributes inherited from Serializable
static int	ckptCount = 0
static int	ckptMaxCount = 0
static int	ckptPrevCount = -1
Protected Member Functions inherited from GenericISA::PCStateBase
	PCStateBase ()
	PCStateBase (Addr val)
Protected Attributes inherited from GenericISA::PCStateBase
Addr	_pc
Addr	_npc

Detailed Description

template<class MachInst>
class GenericISA::SimplePCState< MachInst >

Definition at line 141 of file types.hh.

Member Typedef Documentation

Base

template<class MachInst >

typedef PCStateBase GenericISA::SimplePCState< MachInst >::Base

protected

Definition at line 144 of file types.hh.

Constructor & Destructor Documentation

SimplePCState() [1/2]

template<class MachInst >

GenericISA::SimplePCState< MachInst >::SimplePCState ( )

inline

Definition at line 167 of file types.hh.

SimplePCState() [2/2]

template<class MachInst >

GenericISA::SimplePCState< MachInst >::SimplePCState ( Addr  val )

inline

Definition at line 168 of file types.hh.

References X86ISA::val.

Member Function Documentation

advance()

template<class MachInst >

void GenericISA::SimplePCState< MachInst >::advance ( )

inline

Definition at line 178 of file types.hh.

References GenericISA::PCStateBase::_npc, and GenericISA::PCStateBase::_pc.

Referenced by RiscvISA::RiscvStaticInst::advancePC(), AlphaISA::advancePC(), AlphaISA::buildRetPC(), and RiscvISA::buildRetPC().

branching()

template<class MachInst >

bool GenericISA::SimplePCState< MachInst >::branching ( ) const

inline

Definition at line 171 of file types.hh.

References MipsISA::pc.

npc() [1/2]

template<class MachInst >

Addr GenericISA::SimplePCState< MachInst >::npc ( ) const

inline

Definition at line 151 of file types.hh.

References GenericISA::PCStateBase::_npc.

Referenced by RiscvISA::PCState::branching(), SparcISA::buildRetPC(), MipsISA::buildRetPC(), RiscvISA::buildRetPC(), Trace::SparcNativeTrace::check(), RiscvISA::Decoder::decode(), SparcISA::doNormalFault(), SparcISA::doREDFault(), SparcISA::RemoteGDB::SPARCGdbRegCache::getRegs(), MipsISA::haltThread(), SparcISA::SparcFaultBase::invoke(), SparcISA::PowerOnReset::invoke(), MipsISA::MipsFaultBase::setExceptionState(), SparcISA::RemoteGDB::SPARCGdbRegCache::setRegs(), SparcISA::RemoteGDB::SPARC64GdbRegCache::setRegs(), X86ISA::I386LinuxProcess::syscall(), and X86ISA::Decoder::updateNPC().

npc() [2/2]

template<class MachInst >

void GenericISA::SimplePCState< MachInst >::npc ( Addr  val )

inline

Definition at line 152 of file types.hh.

References GenericISA::PCStateBase::_npc, and X86ISA::val.

pc() [1/2]

template<class MachInst >

Addr GenericISA::SimplePCState< MachInst >::pc ( ) const

inline

Definition at line 148 of file types.hh.

References GenericISA::PCStateBase::_pc.

Referenced by RiscvISA::PCState::branching(), SparcISA::buildRetPC(), MipsISA::buildRetPC(), RiscvISA::buildRetPC(), SparcISA::doNormalFault(), SparcISA::doREDFault(), SparcISA::RemoteGDB::SPARCGdbRegCache::getRegs(), MipsISA::haltThread(), SparcProcess::handleTrap(), AlphaISA::AlphaFault::invoke(), SparcISA::SparcFaultBase::invoke(), X86ISA::X86FaultBase::invoke(), SparcISA::PowerOnReset::invoke(), AlphaISA::Decoder::moreBytes(), RiscvISA::Decoder::moreBytes(), MipsISA::MipsFaultBase::setExceptionState(), SparcISA::RemoteGDB::SPARCGdbRegCache::setRegs(), SparcISA::RemoteGDB::SPARC64GdbRegCache::setRegs(), X86ISA::I386LinuxProcess::syscall(), RiscvISA::BreakpointFault::trap_value(), and X86ISA::Decoder::updateNPC().

pc() [2/2]

template<class MachInst >

void GenericISA::SimplePCState< MachInst >::pc ( Addr  val )

inline

Definition at line 149 of file types.hh.

References GenericISA::PCStateBase::_pc, and X86ISA::val.

set()

template<class MachInst >

void GenericISA::SimplePCState< MachInst >::set ( Addr  val )

inline

Definition at line 155 of file types.hh.

References MipsISA::pc, and X86ISA::val.

Referenced by AlphaISA::AlphaFault::invoke(), and AlphaISA::skipFunction().

setNPC()

template<class MachInst >

void GenericISA::SimplePCState< MachInst >::setNPC ( Addr  val )

inline

Definition at line 162 of file types.hh.

---

The documentation for this class was generated from the following file:

• arch/generic/types.hh
