Declaration of the crossbar master port type, one will be instantiated for each of the slave ports connecting to the crossbar. More...

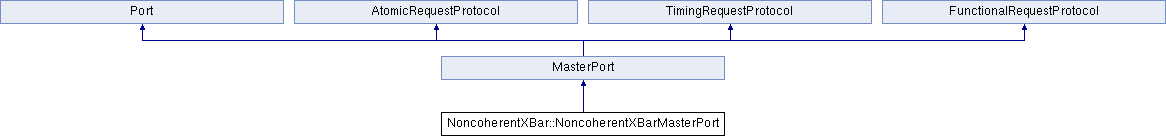

#include <noncoherent_xbar.hh>
Public Member Functions | |
| NoncoherentXBarMasterPort (const std::string &_name, NoncoherentXBar &_xbar, PortID _id) | |
 Public Member Functions inherited from MasterPort | |
| MasterPort (const std::string &name, SimObject *_owner, PortID id=InvalidPortID) | |
| Master port. More... | |
| virtual | ~MasterPort () |
| void | bind (Port &peer) override |
| Bind this master port to a slave port. More... | |
| void | unbind () override |
| Unbind this master port and the associated slave port. More... | |
| virtual bool | isSnooping () const |
| Determine if this master port is snooping or not. More... | |
| AddrRangeList | getAddrRanges () const |
| Get the address ranges of the connected slave port. More... | |
| void | printAddr (Addr a) |
| Inject a PrintReq for the given address to print the state of that address throughout the memory system. More... | |
| Tick | sendAtomic (PacketPtr pkt) |
| Send an atomic request packet, where the data is moved and the state is updated in zero time, without interleaving with other memory accesses. More... | |
| Tick | sendAtomicBackdoor (PacketPtr pkt, MemBackdoorPtr &backdoor) |
| Send an atomic request packet like above, but also request a backdoor to the data being accessed. More... | |
| void | sendFunctional (PacketPtr pkt) const |
| Send a functional request packet, where the data is instantly updated everywhere in the memory system, without affecting the current state of any block or moving the block. More... | |
| bool | sendTimingReq (PacketPtr pkt) |
| Attempt to send a timing request to the slave port by calling its corresponding receive function. More... | |
| bool | tryTiming (PacketPtr pkt) const |
| Check if the slave can handle a timing request. More... | |
| bool | sendTimingSnoopResp (PacketPtr pkt) |
| Attempt to send a timing snoop response packet to the slave port by calling its corresponding receive function. More... | |
| virtual void | sendRetryResp () |
| Send a retry to the slave port that previously attempted a sendTimingResp to this master port and failed. More... | |
| Public Member Functions inherited from Port | |
| virtual | ~Port () |
| Virtual destructor due to inheritance. More... | |
| Port & | getPeer () |
| Return a reference to this port's peer. More... | |
| const std::string | name () const |
| Return port name (for DPRINTF). More... | |
| PortID | getId () const |
| Get the port id. More... | |
| bool | isConnected () const |
| Is this port currently connected to a peer? More... | |
| void | takeOverFrom (Port *old) |
| A utility function to make it easier to swap out ports. More... | |
Protected Member Functions | |
| bool | recvTimingResp (PacketPtr pkt) override |
| Receive a timing response from the peer. More... | |
| void | recvRangeChange () override |
| Called to receive an address range change from the peer slave port. More... | |
| void | recvReqRetry () override |
| Called by the peer if sendTimingReq was called on this peer (causing recvTimingReq to be called on the peer) and was unsuccessful. More... | |
| Protected Member Functions inherited from MasterPort | |
| Tick | recvAtomicSnoop (PacketPtr pkt) override |
| Default implementations. More... | |
| void | recvFunctionalSnoop (PacketPtr pkt) override |
| Receive a functional snoop request packet from the peer. More... | |
| void | recvTimingSnoopReq (PacketPtr pkt) override |
| Receive a timing snoop request from the peer. More... | |
| void | recvRetrySnoopResp () override |
| Called by the peer if sendTimingSnoopResp was called on this protocol (causing recvTimingSnoopResp to be called on the peer) and was unsuccessful. More... | |
| Protected Member Functions inherited from Port | |
| Port (const std::string &_name, PortID _id) | |
| Abstract base class for ports. More... | |
| Protected Member Functions inherited from AtomicRequestProtocol | |
| Tick | send (AtomicResponseProtocol *peer, PacketPtr pkt) |
| Send an atomic request packet, where the data is moved and the state is updated in zero time, without interleaving with other memory accesses. More... | |
| Tick | sendBackdoor (AtomicResponseProtocol *peer, PacketPtr pkt, MemBackdoorPtr &backdoor) |
| Send an atomic request packet like above, but also request a backdoor to the data being accessed. More... | |
| Protected Member Functions inherited from TimingRequestProtocol | |
| bool | sendReq (TimingResponseProtocol *peer, PacketPtr pkt) |
| Attempt to send a timing request to the peer by calling its corresponding receive function. More... | |
| bool | trySend (TimingResponseProtocol *peer, PacketPtr pkt) const |
| Check if the peer can handle a timing request. More... | |
| bool | sendSnoopResp (TimingResponseProtocol *peer, PacketPtr pkt) |
| Attempt to send a timing snoop response packet to it's peer by calling its corresponding receive function. More... | |
| void | sendRetryResp (TimingResponseProtocol *peer) |
| Send a retry to the peer that previously attempted a sendTimingResp to this protocol and failed. More... | |
| Protected Member Functions inherited from FunctionalRequestProtocol | |
| void | send (FunctionalResponseProtocol *peer, PacketPtr pkt) const |
| Send a functional request packet, where the data is instantly updated everywhere in the memory system, without affecting the current state of any block or moving the block. More... | |
Private Attributes | |
| NoncoherentXBar & | xbar |
| A reference to the crossbar to which this port belongs. More... | |
Additional Inherited Members | |
| Protected Attributes inherited from MasterPort | |
| SimObject & | owner |
| Protected Attributes inherited from Port | |
| const PortID | id |
| A numeric identifier to distinguish ports in a vector, and set to InvalidPortID in case this port is not part of a vector. More... | |
| Port * | _peer |
| A pointer to this port's peer. More... | |
| bool | _connected |
| Whether this port is currently connected to a peer port. More... | |
Detailed Description
Declaration of the crossbar master port type, one will be instantiated for each of the slave ports connecting to the crossbar.
Definition at line 143 of file noncoherent_xbar.hh.
Constructor & Destructor Documentation
◆ NoncoherentXBarMasterPort()
|
inline |
Definition at line 152 of file noncoherent_xbar.hh.
Member Function Documentation
◆ recvRangeChange()
|
inlineoverrideprotectedvirtual |
Called to receive an address range change from the peer slave port.
The default implementation ignores the change and does nothing. Override this function in a derived class if the owner needs to be aware of the address ranges, e.g. in an interconnect component like a bus.
Reimplemented from MasterPort.
Definition at line 166 of file noncoherent_xbar.hh.
References BaseXBar::recvRangeChange().
◆ recvReqRetry()
|
inlineoverrideprotectedvirtual |
Called by the peer if sendTimingReq was called on this peer (causing recvTimingReq to be called on the peer) and was unsuccessful.
Implements TimingRequestProtocol.
Definition at line 172 of file noncoherent_xbar.hh.
References NoncoherentXBar::NoncoherentXBar(), MipsISA::p, NoncoherentXBar::NoncoherentXBarSlavePort::recvAtomicBackdoor(), NoncoherentXBar::NoncoherentXBarSlavePort::recvFunctional(), NoncoherentXBar::recvReqRetry(), NoncoherentXBar::NoncoherentXBarSlavePort::recvTimingReq(), NoncoherentXBar::recvTimingResp(), and NoncoherentXBar::~NoncoherentXBar().
◆ recvTimingResp()
|
inlineoverrideprotectedvirtual |
Receive a timing response from the peer.
Implements TimingRequestProtocol.
Definition at line 160 of file noncoherent_xbar.hh.
References NoncoherentXBar::recvTimingResp().
Member Data Documentation
◆ xbar
|
private |
A reference to the crossbar to which this port belongs.
Definition at line 148 of file noncoherent_xbar.hh.
The documentation for this class was generated from the following file:
