#include <gpu_tlb.hh>

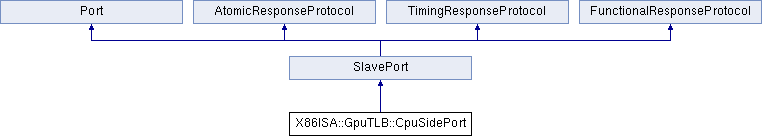

Inheritance diagram for X86ISA::GpuTLB::CpuSidePort:

Public Member Functions
	CpuSidePort (const std::string &_name, GpuTLB *gpu_TLB, PortID _index)

Public Member Functions inherited from SlavePort
	SlavePort (const std::string &name, SimObject *_owner, PortID id=InvalidPortID)
	Slave port. More...

virtual	~SlavePort ()

bool	isSnooping () const
	Find out if the peer master port is snooping or not. More...

void	sendRangeChange () const
	Called by the owner to send a range change. More...

void	unbind () override
	We let the master port do the work, so these don't do anything. More...

void	bind (Port &peer) override
	Attach to a peer port. More...

Tick	sendAtomicSnoop (PacketPtr pkt)
	Send an atomic snoop request packet, where the data is moved and the state is updated in zero time, without interleaving with other memory accesses. More...

void	sendFunctionalSnoop (PacketPtr pkt) const
	Send a functional snoop request packet, where the data is instantly updated everywhere in the memory system, without affecting the current state of any block or moving the block. More...

bool	sendTimingResp (PacketPtr pkt)
	Attempt to send a timing response to the master port by calling its corresponding receive function. More...

void	sendTimingSnoopReq (PacketPtr pkt)
	Attempt to send a timing snoop request packet to the master port by calling its corresponding receive function. More...

void	sendRetryReq ()
	Send a retry to the master port that previously attempted a sendTimingReq to this slave port and failed. More...

void	sendRetrySnoopResp ()
	Send a retry to the master port that previously attempted a sendTimingSnoopResp to this slave port and failed. More...

Public Member Functions inherited from Port
virtual	~Port ()
	Virtual destructor due to inheritance. More...

Port &	getPeer ()
	Return a reference to this port's peer. More...

const std::string	name () const
	Return port name (for DPRINTF). More...

PortID	getId () const
	Get the port id. More...

bool	isConnected () const
	Is this port currently connected to a peer? More...

void	takeOverFrom (Port *old)
	A utility function to make it easier to swap out ports. More...

Protected Member Functions
virtual bool	recvTimingReq (PacketPtr pkt)
	Receive a timing request from the peer. More...

virtual Tick	recvAtomic (PacketPtr pkt)
	Receive an atomic request packet from the peer. More...

virtual void	recvFunctional (PacketPtr pkt)
	Receive a functional request packet from the peer. More...

virtual void	recvRangeChange ()

virtual void	recvReqRetry ()

virtual void	recvRespRetry ()
	Called by the peer if sendTimingResp was called on this protocol (causing recvTimingResp to be called on the peer) and was unsuccessful. More...

virtual AddrRangeList	getAddrRanges () const
	Get a list of the non-overlapping address ranges the owner is responsible for. More...

Protected Member Functions inherited from SlavePort
void	slaveUnbind ()
	Called by the master port to unbind. More...

void	slaveBind (MasterPort &master_port)
	Called by the master port to bind. More...

Tick	recvAtomicBackdoor (PacketPtr pkt, MemBackdoorPtr &backdoor) override
	Default implementations. More...

bool	tryTiming (PacketPtr pkt) override
	Availability request from the peer. More...

bool	recvTimingSnoopResp (PacketPtr pkt) override
	Receive a timing snoop response from the peer. More...

Protected Member Functions inherited from Port
	Port (const std::string &_name, PortID _id)
	Abstract base class for ports. More...

Protected Member Functions inherited from AtomicResponseProtocol
Tick	sendSnoop (AtomicRequestProtocol *peer, PacketPtr pkt)
	Send an atomic snoop request packet, where the data is moved and the state is updated in zero time, without interleaving with other memory accesses. More...

Protected Member Functions inherited from TimingResponseProtocol
bool	sendResp (TimingRequestProtocol *peer, PacketPtr pkt)
	Attempt to send a timing response to the peer by calling its corresponding receive function. More...

void	sendSnoopReq (TimingRequestProtocol *peer, PacketPtr pkt)
	Attempt to send a timing snoop request packet to the peer by calling its corresponding receive function. More...

void	sendRetryReq (TimingRequestProtocol *peer)
	Send a retry to the peer that previously attempted a sendTimingReq to this protocol and failed. More...

void	sendRetrySnoopResp (TimingRequestProtocol *peer)
	Send a retry to the peer that previously attempted a sendTimingSnoopResp to this peer and failed. More...

Protected Member Functions inherited from FunctionalResponseProtocol
void	sendSnoop (FunctionalRequestProtocol *peer, PacketPtr pkt) const
	Send a functional snoop request packet, where the data is instantly updated everywhere in the memory system, without affecting the current state of any block or moving the block. More...

Protected Attributes
GpuTLB *	tlb

int	index

Protected Attributes inherited from SlavePort
SimObject &	owner

Protected Attributes inherited from Port
const PortID	id
	A numeric identifier to distinguish ports in a vector, and set to InvalidPortID in case this port is not part of a vector. More...

Port *	_peer
	A pointer to this port's peer. More...

bool	_connected
	Whether this port is currently connected to a peer port. More...

Detailed Description

Definition at line 259 of file gpu_tlb.hh.

Constructor & Destructor Documentation

◆ CpuSidePort()

X86ISA::GpuTLB::CpuSidePort::CpuSidePort	(	const std::string &	_name,
		GpuTLB *	gpu_TLB,
		PortID	_index
	)

inline

Definition at line 262 of file gpu_tlb.hh.

Member Function Documentation

◆ getAddrRanges()

AddrRangeList X86ISA::GpuTLB::CpuSidePort::getAddrRanges ( ) const

protectedvirtual

Get a list of the non-overlapping address ranges the owner is responsible for.

All slave ports must override this function and return a populated list with at least one item.

Returns: a list of ranges responded to

Implements SlavePort.

Definition at line 1601 of file gpu_tlb.cc.

◆ recvAtomic()

virtual Tick X86ISA::GpuTLB::CpuSidePort::recvAtomic ( PacketPtr pkt )

inlineprotectedvirtual

Receive an atomic request packet from the peer.

Implements AtomicResponseProtocol.

Definition at line 271 of file gpu_tlb.hh.

◆ recvFunctional()

void X86ISA::GpuTLB::CpuSidePort::recvFunctional ( PacketPtr pkt )

protectedvirtual

Receive a functional request packet from the peer.

Implements FunctionalResponseProtocol.

Definition at line 1480 of file gpu_tlb.cc.

References DPRINTF, BaseTLB::Execute, Process::fixupStackFault(), ThreadContext::getProcessPtr(), X86ISA::GpuTLB::globalNumTLBAccesses, X86ISA::GpuTLB::globalNumTLBHits, X86ISA::GpuTLB::globalNumTLBMisses, X86ISA::GpuTLB::handleFuncTranslationReturn(), X86ISA::GpuTLB::hasMemSidePort, X86ISA::GpuTLB::TranslationState::hitLevel, X86ISA::GpuTLB::lookup(), EmulationPageTable::lookup(), X86ISA::GpuTLB::memSidePort, X86ISA::p, EmulationPageTable::Entry::paddr, X86ISA::TlbEntry::paddr, EmulationPageTable::pageAlign(), AlphaISA::PageBytes, Process::pid(), X86ISA::GpuTLB::TranslationState::prefetch, Process::pTable, Packet::req, X86ISA::GpuTLB::TranslationState::reqCnt, roundDown(), safe_cast(), Packet::senderState, X86ISA::GpuTLB::TranslationState::tc, X86ISA::GpuTLB::TLBEvent::tlb, X86ISA::GpuTLB::TLB_HIT, X86ISA::GpuTLB::TLB_MISS, X86ISA::GpuTLB::TranslationState::tlbEntry, X86ISA::GpuTLB::tlbLookup(), X86ISA::GpuTLB::TranslationState::tlbMode, X86ISA::GpuTLB::updatePageFootprint(), X86ISA::TlbEntry::vaddr, and MipsISA::vaddr.

◆ recvRangeChange()

virtual void X86ISA::GpuTLB::CpuSidePort::recvRangeChange ( )

inlineprotectedvirtual

Definition at line 273 of file gpu_tlb.hh.

◆ recvReqRetry()

void X86ISA::GpuTLB::CpuSidePort::recvReqRetry ( )

protectedvirtual

Definition at line 1593 of file gpu_tlb.cc.

References panic.

◆ recvRespRetry()

virtual void X86ISA::GpuTLB::CpuSidePort::recvRespRetry ( )

inlineprotectedvirtual

Called by the peer if sendTimingResp was called on this protocol (causing recvTimingResp to be called on the peer) and was unsuccessful.

Implements TimingResponseProtocol.

Definition at line 275 of file gpu_tlb.hh.

References panic.

◆ recvTimingReq()

bool X86ISA::GpuTLB::CpuSidePort::recvTimingReq ( PacketPtr pkt )

protectedvirtual

Receive a timing request from the peer.

Implements TimingResponseProtocol.

Definition at line 1387 of file gpu_tlb.cc.

References DPRINTF, X86ISA::GpuTLB::issueTLBLookup(), X86ISA::GpuTLB::maxCoalescedReqs, X86ISA::GpuTLB::outstandingReqs, and X86ISA::GpuTLB::TLBEvent::tlb.

Member Data Documentation

◆ index

int X86ISA::GpuTLB::CpuSidePort::index

protected

Definition at line 268 of file gpu_tlb.hh.

◆ tlb

GpuTLB* X86ISA::GpuTLB::CpuSidePort::tlb

protected

Definition at line 267 of file gpu_tlb.hh.

The documentation for this class was generated from the following files:

gpu-compute/gpu_tlb.hh
gpu-compute/gpu_tlb.cc
