#include <simple_initiator_socket.h>

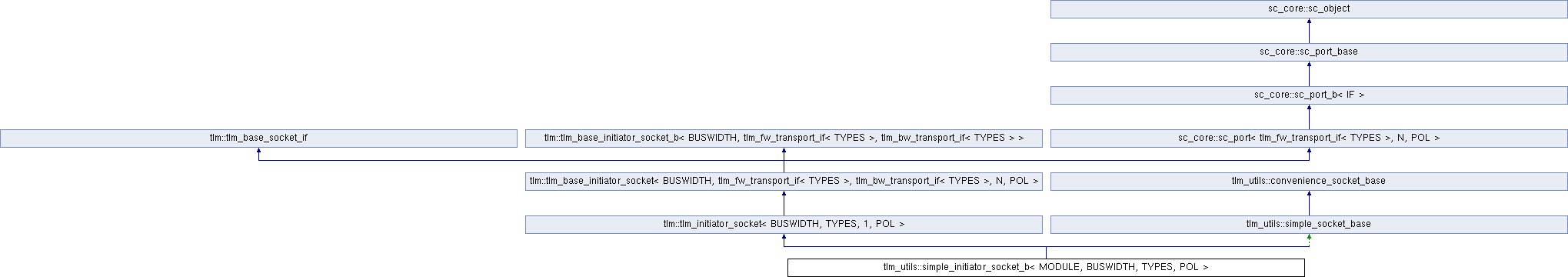

Inheritance diagram for tlm_utils::simple_initiator_socket_b< MODULE, BUSWIDTH, TYPES, POL >:

Classes
class	process

Public Types
typedef TYPES::tlm_payload_type	transaction_type

typedef TYPES::tlm_phase_type	phase_type

typedef tlm::tlm_sync_enum	sync_enum_type

typedef tlm::tlm_fw_transport_if< TYPES >	fw_interface_type

typedef tlm::tlm_bw_transport_if< TYPES >	bw_interface_type

typedef tlm::tlm_initiator_socket< BUSWIDTH, TYPES, 1, POL >	base_type

Public Types inherited from tlm::tlm_base_initiator_socket< BUSWIDTH, tlm_fw_transport_if< TYPES >, tlm_bw_transport_if< TYPES >, N, POL >
typedef tlm_fw_transport_if< TYPES >	fw_interface_type

typedef tlm_bw_transport_if< TYPES >	bw_interface_type

typedef sc_core::sc_port< fw_interface_type, N, POL >	port_type

typedef sc_core::sc_export< bw_interface_type >	export_type

typedef tlm_base_target_socket_b< BUSWIDTH, fw_interface_type, bw_interface_type >	base_target_socket_type

typedef tlm_base_initiator_socket_b< BUSWIDTH, fw_interface_type, bw_interface_type >	base_type

Public Member Functions
	simple_initiator_socket_b (const char *n=default_name())

void	register_nb_transport_bw (MODULE mod, sync_enum_type(MODULE::cb)(transaction_type &, phase_type &, sc_core::sc_time &))

void	register_invalidate_direct_mem_ptr (MODULE mod, void(MODULE::cb)(sc_dt::uint64, sc_dt::uint64))

Public Member Functions inherited from tlm::tlm_initiator_socket< BUSWIDTH, TYPES, 1, POL >
	tlm_initiator_socket ()

	tlm_initiator_socket (const char *name)

virtual const char *	kind () const

virtual std::type_index	get_protocol_types () const

Public Member Functions inherited from tlm::tlm_base_initiator_socket< BUSWIDTH, tlm_fw_transport_if< TYPES >, tlm_bw_transport_if< TYPES >, N, POL >
	tlm_base_initiator_socket ()

	tlm_base_initiator_socket (const char *name)

virtual void	bind (base_target_socket_type &s)

virtual void	bind (base_type &s)

virtual void	bind (bw_interface_type &ifs)

void	operator() (base_target_socket_type &s)

void	operator() (base_type &s)

void	operator() (bw_interface_type &s)

virtual sc_core::sc_port_base &	get_port_base ()

virtual sc_core::sc_port_base const &	get_port_base () const

virtual sc_core::sc_export_base &	get_export_base ()

virtual sc_core::sc_export_base const &	get_export_base () const

virtual unsigned int	get_bus_width () const

virtual tlm_socket_category	get_socket_category () const

virtual sc_core::sc_port_b< tlm_fw_transport_if< TYPES > > &	get_base_port ()

virtual sc_core::sc_port_b< tlm_fw_transport_if< TYPES > > const &	get_base_port () const

virtual tlm_bw_transport_if< TYPES > &	get_base_interface ()

virtual tlm_bw_transport_if< TYPES > const &	get_base_interface () const

virtual sc_core::sc_export< tlm_bw_transport_if< TYPES > > &	get_base_export ()

virtual sc_core::sc_export< tlm_bw_transport_if< TYPES > > const &	get_base_export () const

Public Member Functions inherited from tlm::tlm_base_initiator_socket_b< BUSWIDTH, FW_IF, BW_IF >
virtual	~tlm_base_initiator_socket_b ()

Public Member Functions inherited from sc_core::sc_port< IF, N, P >
	sc_port ()

	sc_port (const char *name)

virtual	~sc_port ()

	sc_port (const IF &interface)

	sc_port (const char *name, const IF &interface)

	sc_port (sc_port_b< IF > &parent)

	sc_port (const char *name, sc_port_b< IF > &parent)

	sc_port (sc_port< IF, N, P > &parent)

	sc_port (const char *name, sc_port< IF, N, P > &parent)

Public Member Functions inherited from sc_core::sc_port_b< IF >
void	operator() (IF &i)

void	operator() (sc_port_b< IF > &p)

virtual void	bind (IF &i)

virtual void	bind (sc_port_b< IF > &p)

IF *	operator-> ()

const IF *	operator-> () const

IF *	operator[] (int n)

const IF *	operator[] (int n) const

sc_interface *	get_interface ()

const sc_interface *	get_interface () const

Public Member Functions inherited from sc_core::sc_port_base
	sc_port_base (const char *name, int n, sc_port_policy p)

virtual	~sc_port_base ()

void	warn_port_constructor () const

int	maxSize () const

int	size () const

Public Member Functions inherited from sc_core::sc_object
const char *	name () const

const char *	basename () const

virtual void	print (std::ostream &=std::cout) const

virtual void	dump (std::ostream &=std::cout) const

virtual const std::vector< sc_object * > &	get_child_objects () const

virtual const std::vector< sc_event * > &	get_child_events () const

sc_object *	get_parent_object () const

bool	add_attribute (sc_attr_base &)

sc_attr_base *	get_attribute (const std::string &)

sc_attr_base *	remove_attribute (const std::string &)

void	remove_all_attributes ()

int	num_attributes () const

sc_attr_cltn &	attr_cltn ()

const sc_attr_cltn &	attr_cltn () const

sc_simcontext *	simcontext () const

Static Public Member Functions
static const char *	default_name ()

Private Member Functions
const sc_core::sc_object *	get_socket () const

Private Attributes
process	m_process

Additional Inherited Members
Protected Member Functions inherited from tlm::tlm_base_socket_if
virtual	~tlm_base_socket_if ()

Protected Member Functions inherited from sc_core::sc_port_b< IF >
void	before_end_of_elaboration () override

void	end_of_elaboration () override

void	start_of_simulation () override

void	end_of_simulation () override

	sc_port_b (int n, sc_port_policy p)

	sc_port_b (const char *name, int n, sc_port_policy p)

virtual	~sc_port_b ()

int	vbind (sc_interface &i) override

int	vbind (sc_port_base &pb) override

Protected Member Functions inherited from sc_core::sc_port_base
void	bind (sc_interface &)

void	bind (sc_port_base &)

void	report_error (const char id, const char add_msg) const

Protected Member Functions inherited from sc_core::sc_object
	sc_object ()

	sc_object (const char *)

	sc_object (const sc_object &)

sc_object &	operator= (const sc_object &)

virtual	~sc_object ()

Protected Member Functions inherited from tlm_utils::simple_socket_base
void	elaboration_check (const char *action) const

Protected Member Functions inherited from tlm_utils::convenience_socket_base
virtual	~convenience_socket_base ()

void	display_warning (const char *msg) const

void	display_error (const char *msg) const

Protected Attributes inherited from tlm::tlm_base_initiator_socket< BUSWIDTH, tlm_fw_transport_if< TYPES >, tlm_bw_transport_if< TYPES >, N, POL >
export_type	m_export

Detailed Description

template<typename MODULE, unsigned int BUSWIDTH, typename TYPES, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
class tlm_utils::simple_initiator_socket_b< MODULE, BUSWIDTH, TYPES, POL >

Definition at line 37 of file simple_initiator_socket.h.

Member Typedef Documentation

◆ base_type

template<typename MODULE, unsigned int BUSWIDTH, typename TYPES, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>

typedef tlm::tlm_initiator_socket<BUSWIDTH, TYPES, 1, POL> tlm_utils::simple_initiator_socket_b< MODULE, BUSWIDTH, TYPES, POL >::base_type

Definition at line 47 of file simple_initiator_socket.h.

◆ bw_interface_type

template<typename MODULE, unsigned int BUSWIDTH, typename TYPES, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>

typedef tlm::tlm_bw_transport_if<TYPES> tlm_utils::simple_initiator_socket_b< MODULE, BUSWIDTH, TYPES, POL >::bw_interface_type

Definition at line 46 of file simple_initiator_socket.h.

◆ fw_interface_type

template<typename MODULE, unsigned int BUSWIDTH, typename TYPES, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>

typedef tlm::tlm_fw_transport_if<TYPES> tlm_utils::simple_initiator_socket_b< MODULE, BUSWIDTH, TYPES, POL >::fw_interface_type

Definition at line 45 of file simple_initiator_socket.h.

◆ phase_type

template<typename MODULE, unsigned int BUSWIDTH, typename TYPES, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>

typedef TYPES::tlm_phase_type tlm_utils::simple_initiator_socket_b< MODULE, BUSWIDTH, TYPES, POL >::phase_type

Definition at line 43 of file simple_initiator_socket.h.

◆ sync_enum_type

template<typename MODULE, unsigned int BUSWIDTH, typename TYPES, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>

typedef tlm::tlm_sync_enum tlm_utils::simple_initiator_socket_b< MODULE, BUSWIDTH, TYPES, POL >::sync_enum_type

Definition at line 44 of file simple_initiator_socket.h.

◆ transaction_type

template<typename MODULE, unsigned int BUSWIDTH, typename TYPES, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>

typedef TYPES::tlm_payload_type tlm_utils::simple_initiator_socket_b< MODULE, BUSWIDTH, TYPES, POL >::transaction_type

Definition at line 42 of file simple_initiator_socket.h.

Constructor & Destructor Documentation

◆ simple_initiator_socket_b()

template<typename MODULE, unsigned int BUSWIDTH, typename TYPES, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>

tlm_utils::simple_initiator_socket_b< MODULE, BUSWIDTH, TYPES, POL >::simple_initiator_socket_b ( const char * n = default_name() )

inlineexplicit

Definition at line 56 of file simple_initiator_socket.h.

Member Function Documentation

◆ default_name()

template<typename MODULE, unsigned int BUSWIDTH, typename TYPES, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>

static const char* tlm_utils::simple_initiator_socket_b< MODULE, BUSWIDTH, TYPES, POL >::default_name ( )

inlinestatic

Definition at line 51 of file simple_initiator_socket.h.

◆ get_socket()

template<typename MODULE, unsigned int BUSWIDTH, typename TYPES, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>

const sc_core::sc_object* tlm_utils::simple_initiator_socket_b< MODULE, BUSWIDTH, TYPES, POL >::get_socket ( ) const

inlineprivatevirtual

Implements tlm_utils::convenience_socket_base.

Definition at line 148 of file simple_initiator_socket.h.

◆ register_invalidate_direct_mem_ptr()

template<typename MODULE, unsigned int BUSWIDTH, typename TYPES, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>

void tlm_utils::simple_initiator_socket_b< MODULE, BUSWIDTH, TYPES, POL >::register_invalidate_direct_mem_ptr	(	MODULE *	mod,
		void(MODULE::*)(sc_dt::uint64, sc_dt::uint64)	cb
	)

inline

Definition at line 71 of file simple_initiator_socket.h.

Referenced by adapt_ext2gp< BUSWIDTH >::adapt_ext2gp(), adapt_gp2ext< BUSWIDTH >::adapt_gp2ext(), SimpleLTInitiator2_dmi::SimpleLTInitiator2_dmi(), SimpleLTInitiator3_dmi::SimpleLTInitiator3_dmi(), and SimpleLTInitiator_ext::SimpleLTInitiator_ext().

◆ register_nb_transport_bw()

template<typename MODULE, unsigned int BUSWIDTH, typename TYPES, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>

void tlm_utils::simple_initiator_socket_b< MODULE, BUSWIDTH, TYPES, POL >::register_nb_transport_bw	(	MODULE *	mod,
		sync_enum_type(MODULE::*)(transaction_type &, phase_type &, sc_core::sc_time &)	cb
	)

inline

Definition at line 63 of file simple_initiator_socket.h.

Referenced by adapt_ext2gp< BUSWIDTH >::adapt_ext2gp(), adapt_gp2ext< BUSWIDTH >::adapt_gp2ext(), SimpleATInitiator1::SimpleATInitiator1(), SimpleATInitiator2::SimpleATInitiator2(), and SimpleLTInitiator_ext::SimpleLTInitiator_ext().

Member Data Documentation

◆ m_process

template<typename MODULE, unsigned int BUSWIDTH, typename TYPES, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>

process tlm_utils::simple_initiator_socket_b< MODULE, BUSWIDTH, TYPES, POL >::m_process

private

Definition at line 151 of file simple_initiator_socket.h.

The documentation for this class was generated from the following file:

systemc/ext/tlm_utils/simple_initiator_socket.h
