#include <cortex_r52.hh>

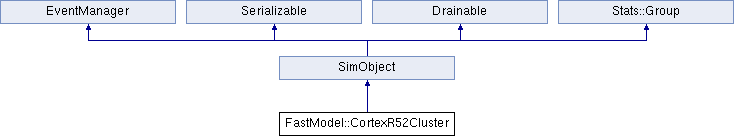

Inheritance diagram for FastModel::CortexR52Cluster:

Public Member Functions
template<class T >
void	set_evs_param (const std::string &n, T val)

CortexR52 *	getCore (int num) const

sc_core::sc_module *	getEvs () const

	PARAMS (FastModelCortexR52Cluster)

	CortexR52Cluster (const Params &p)

Port &	getPort (const std::string &if_name, PortID idx=InvalidPortID) override
	Get a port with a given name and index. More...

Public Member Functions inherited from SimObject
const Params &	params () const

	SimObject (const Params &p)

virtual	~SimObject ()

virtual const std::string	name () const

virtual void	init ()
	init() is called after all C++ SimObjects have been created and all ports are connected. More...

virtual void	loadState (CheckpointIn &cp)
	loadState() is called on each SimObject when restoring from a checkpoint. More...

virtual void	initState ()
	initState() is called on each SimObject when not restoring from a checkpoint. More...

virtual void	regProbePoints ()
	Register probe points for this object. More...

virtual void	regProbeListeners ()
	Register probe listeners for this object. More...

ProbeManager *	getProbeManager ()
	Get the probe manager for this object. More...

virtual void	startup ()
	startup() is the final initialization call before simulation. More...

DrainState	drain () override
	Provide a default implementation of the drain interface for objects that don't need draining. More...

virtual void	memWriteback ()
	Write back dirty buffers to memory using functional writes. More...

virtual void	memInvalidate ()
	Invalidate the contents of memory buffers. More...

void	serialize (CheckpointOut &cp) const override
	Serialize an object. More...

void	unserialize (CheckpointIn &cp) override
	Unserialize an object. More...

Public Member Functions inherited from EventManager
EventQueue *	eventQueue () const

void	schedule (Event &event, Tick when)

void	deschedule (Event &event)

void	reschedule (Event &event, Tick when, bool always=false)

void	schedule (Event *event, Tick when)

void	deschedule (Event *event)

void	reschedule (Event *event, Tick when, bool always=false)

void	wakeupEventQueue (Tick when=(Tick) -1)
	This function is not needed by the usual gem5 event loop but may be necessary in derived EventQueues which host gem5 on other schedulers. More...

void	setCurTick (Tick newVal)

	EventManager (EventManager &em)
	Event manger manages events in the event queue. More...

	EventManager (EventManager *em)

	EventManager (EventQueue *eq)

Public Member Functions inherited from Serializable
	Serializable ()

virtual	~Serializable ()

void	serializeSection (CheckpointOut &cp, const char *name) const
	Serialize an object into a new section. More...

void	serializeSection (CheckpointOut &cp, const std::string &name) const

void	unserializeSection (CheckpointIn &cp, const char *name)
	Unserialize an a child object. More...

void	unserializeSection (CheckpointIn &cp, const std::string &name)

Public Member Functions inherited from Drainable
DrainState	drainState () const
	Return the current drain state of an object. More...

virtual void	notifyFork ()
	Notify a child process of a fork. More...

Public Member Functions inherited from Stats::Group
	Group (Group parent, const char name=nullptr)
	Construct a new statistics group. More...

virtual	~Group ()

virtual void	regStats ()
	Callback to set stat parameters. More...

virtual void	resetStats ()
	Callback to reset stats. More...

virtual void	preDumpStats ()
	Callback before stats are dumped. More...

void	addStat (Stats::Info *info)
	Register a stat with this group. More...

const std::map< std::string, Group * > &	getStatGroups () const
	Get all child groups associated with this object. More...

const std::vector< Info * > &	getStats () const
	Get all stats associated with this object. More...

void	addStatGroup (const char name, Group block)
	Add a stat block as a child of this block. More...

const Info *	resolveStat (std::string name) const
	Resolve a stat by its name within this group. More...

void	mergeStatGroup (Group *block)
	Merge the contents (stats & children) of a block to this block. More...

	Group ()=delete

	Group (const Group &)=delete

Group &	operator= (const Group &)=delete

Private Attributes
std::vector< CortexR52 * >	cores

sc_core::sc_module *	evs

Additional Inherited Members
Public Types inherited from SimObject
typedef SimObjectParams	Params

Static Public Member Functions inherited from SimObject
static void	serializeAll (CheckpointOut &cp)
	Serialize all SimObjects in the system. More...

static SimObject *	find (const char *name)
	Find the SimObject with the given name and return a pointer to it. More...

Static Public Member Functions inherited from Serializable
static const std::string &	currentSection ()
	Gets the fully-qualified name of the active section. More...

static void	serializeAll (const std::string &cpt_dir)
	Serializes all the SimObjects. More...

static void	unserializeGlobals (CheckpointIn &cp)

Protected Member Functions inherited from Drainable
	Drainable ()

virtual	~Drainable ()

virtual void	drainResume ()
	Resume execution after a successful drain. More...

void	signalDrainDone () const
	Signal that an object is drained. More...

Protected Attributes inherited from SimObject
const SimObjectParams &	_params
	Cached copy of the object parameters. More...

Protected Attributes inherited from EventManager
EventQueue *	eventq
	A pointer to this object's event queue. More...

Detailed Description

Definition at line 75 of file cortex_r52.hh.

Constructor & Destructor Documentation

◆ CortexR52Cluster()

FastModel::CortexR52Cluster::CortexR52Cluster ( const Params & p )

Definition at line 96 of file cortex_r52.cc.

References ArmISA::e, evs, ArmISA::i, MipsISA::p, panic_if, SimObject::params(), and set_evs_param().

Member Function Documentation

◆ getCore()

CortexR52* FastModel::CortexR52Cluster::getCore ( int num ) const

inline

Definition at line 89 of file cortex_r52.hh.

References cores.

◆ getEvs()

sc_core::sc_module* FastModel::CortexR52Cluster::getEvs ( ) const

inline

Definition at line 90 of file cortex_r52.hh.

References evs.

◆ getPort()

Port & FastModel::CortexR52Cluster::getPort	(	const std::string &	if_name,
		PortID	idx = `InvalidPortID`
	)

overridevirtual

Get a port with a given name and index.

This is used at binding time and returns a reference to a protocol-agnostic port.

gem5 has a request and response port interface. All memory objects are connected together via ports. These ports provide a rigid interface between these memory objects. These ports implement three different memory system modes: timing, atomic, and functional. The most important mode is the timing mode and here timing mode is used for conducting cycle-level timing experiments. The other modes are only used in special circumstances and should not be used to conduct cycle-level timing experiments. The other modes are only used in special circumstances. These ports allow SimObjects to communicate with each other.

Parameters

if_name	Port name
idx	Index in the case of a VectorPort

Returns: A reference to the given port

Reimplemented from SimObject.

Definition at line 146 of file cortex_r52.cc.

References evs, sc_core::sc_module::gem5_getPort(), and SimObject::getPort().

◆ PARAMS()

FastModel::CortexR52Cluster::PARAMS ( FastModelCortexR52Cluster )

◆ set_evs_param()

template<class T >

void FastModel::CortexR52Cluster::set_evs_param	(	const std::string &	n,
		T	val
	)

inline

Definition at line 84 of file cortex_r52.hh.

References evs, ArmISA::n, sc_core::sc_object::name(), and X86ISA::val.

Referenced by CortexR52Cluster(), and FastModel::CortexR52::set_evs_param().

Member Data Documentation

◆ cores

std::vector<CortexR52 *> FastModel::CortexR52Cluster::cores

private

Definition at line 78 of file cortex_r52.hh.

Referenced by getCore().

◆ evs

sc_core::sc_module* FastModel::CortexR52Cluster::evs

private

Definition at line 79 of file cortex_r52.hh.

Referenced by CortexR52Cluster(), getEvs(), getPort(), and set_evs_param().

The documentation for this class was generated from the following files:

arch/arm/fastmodel/CortexR52/cortex_r52.hh
arch/arm/fastmodel/CortexR52/cortex_r52.cc
