A pipeline simulating class that will stall (not advance when advance() is called) if a non-bubble value lies at the far end of the pipeline. More...
#include <buffers.hh>
Public Member Functions | |
| SelfStallingPipeline (const std::string &name, const std::string &data_name, unsigned depth) | |
| void | push (ElemType &elem) |
| Write an element to the back of the pipeline. More... | |
| ElemType & | front () |
| Peek at the end element of the pipe. More... | |
| const ElemType & | front () const |
| bool | alreadyPushed () |
| Have we already pushed onto this pipe without advancing. More... | |
| bool | isPopable () |
| There's data (not a bubble) at the end of the pipe. More... | |
| void | advance () |
| Try to advance the pipeline. More... | |

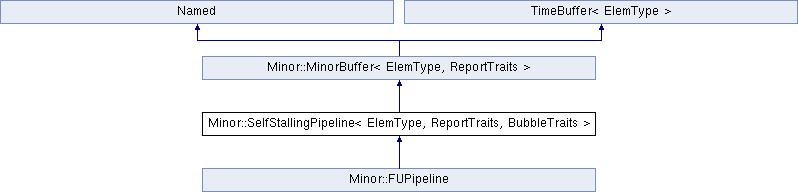

 Public Member Functions inherited from Minor::MinorBuffer< ElemType, ReportTraits > | |
| MinorBuffer (const std::string &name, const std::string &data_name, int num_past, int num_future, int report_left=-1, int report_right=-1) | |
| bool | empty () const |
| void | minorTrace () const |
| Report buffer states from 'slot' 'from' to 'to'. More... | |
| Public Member Functions inherited from Named | |
| Named (const std::string &name_) | |
| const std::string & | name () const |
| Public Member Functions inherited from TimeBuffer< ElemType > | |
| TimeBuffer (int p, int f) | |
| TimeBuffer () | |
| ~TimeBuffer () | |
| void | id (int id) |
| int | id () |
| void | advance () |
| ElemType * | access (int idx) |
| ElemType & | operator[] (int idx) |
| const ElemType & | operator[] (int idx) const |
| wire | getWire (int idx) |
| wire | zero () |
| unsigned | getSize () |
Public Attributes | |
| bool | stalled |
| If true, advance will not advance the pipeline. More... | |
| unsigned int | occupancy |
| The number of slots with non-bubbles in them. More... | |
Protected Attributes | |
| TimeBuffer< ElemType >::wire | pushWire |
| Wire at the input end of the pipeline (for convenience) More... | |
| TimeBuffer< ElemType >::wire | popWire |
| Wire at the output end of the pipeline (for convenience) More... | |
| Protected Attributes inherited from Minor::MinorBuffer< ElemType, ReportTraits > | |
| int | reportLeft |
| The range of elements that should appear in trace lines. More... | |
| int | reportRight |
| std::string | dataName |
| Name to use for the data in a MinorTrace line. More... | |
| Protected Attributes inherited from Named | |
| const std::string | _name |
| Protected Attributes inherited from TimeBuffer< ElemType > | |
| int | past |
| int | future |
| unsigned | size |
| int | _id |
| char * | data |
| std::vector< char * > | index |
| unsigned | base |
Additional Inherited Members | |
| Protected Member Functions inherited from TimeBuffer< ElemType > | |
| void | valid (int idx) const |
| int | calculateVectorIndex (int idx) const |
Detailed Description
template<typename ElemType, typename ReportTraits, typename BubbleTraits = BubbleTraitsAdaptor<ElemType>>
class Minor::SelfStallingPipeline< ElemType, ReportTraits, BubbleTraits >
A pipeline simulating class that will stall (not advance when advance() is called) if a non-bubble value lies at the far end of the pipeline.
The user can clear the stall before calling advance to unstall the pipeline.
Definition at line 289 of file buffers.hh.
Constructor & Destructor Documentation
◆ SelfStallingPipeline()
|
inline |
Definition at line 305 of file buffers.hh.
References ArmISA::i.
Member Function Documentation
◆ advance()
|
inline |
Try to advance the pipeline.
If we're stalled, don't advance. If we're not stalled, advance then check to see if we become stalled (a non-bubble at the end of the pipe)
Definition at line 351 of file buffers.hh.
References TimeBuffer< T >::advance(), Minor::SelfStallingPipeline< ElemType, ReportTraits, BubbleTraits >::isPopable(), Minor::SelfStallingPipeline< ElemType, ReportTraits, BubbleTraits >::occupancy, Minor::SelfStallingPipeline< ElemType, ReportTraits, BubbleTraits >::pushWire, and Minor::SelfStallingPipeline< ElemType, ReportTraits, BubbleTraits >::stalled.
Referenced by Minor::FUPipeline::advance().
◆ alreadyPushed()
|
inline |
Have we already pushed onto this pipe without advancing.
Definition at line 342 of file buffers.hh.
References Minor::SelfStallingPipeline< ElemType, ReportTraits, BubbleTraits >::pushWire.
Referenced by Minor::FUPipeline::advance(), and Minor::SelfStallingPipeline< ElemType, ReportTraits, BubbleTraits >::push().
◆ front() [1/2]
|
inline |
Peek at the end element of the pipe.
Definition at line 337 of file buffers.hh.
References Minor::SelfStallingPipeline< ElemType, ReportTraits, BubbleTraits >::popWire.
Referenced by Minor::SelfStallingPipeline< ElemType, ReportTraits, BubbleTraits >::isPopable().
◆ front() [2/2]
|
inline |
Definition at line 339 of file buffers.hh.
References Minor::SelfStallingPipeline< ElemType, ReportTraits, BubbleTraits >::popWire.
◆ isPopable()
|
inline |
There's data (not a bubble) at the end of the pipe.
Definition at line 345 of file buffers.hh.
References Minor::SelfStallingPipeline< ElemType, ReportTraits, BubbleTraits >::front().
Referenced by Minor::SelfStallingPipeline< ElemType, ReportTraits, BubbleTraits >::advance().
◆ push()
|
inline |
Write an element to the back of the pipeline.
This doesn't cause the pipeline to advance until advance is called. Pushing twice without advance-ing will just cause an overwrite of the last push's data.
Definition at line 328 of file buffers.hh.
References Minor::SelfStallingPipeline< ElemType, ReportTraits, BubbleTraits >::alreadyPushed(), Minor::SelfStallingPipeline< ElemType, ReportTraits, BubbleTraits >::occupancy, and Minor::SelfStallingPipeline< ElemType, ReportTraits, BubbleTraits >::pushWire.
Member Data Documentation
◆ occupancy
| unsigned int Minor::SelfStallingPipeline< ElemType, ReportTraits, BubbleTraits >::occupancy |
The number of slots with non-bubbles in them.
Definition at line 302 of file buffers.hh.
Referenced by Minor::SelfStallingPipeline< ElemType, ReportTraits, BubbleTraits >::advance(), and Minor::SelfStallingPipeline< ElemType, ReportTraits, BubbleTraits >::push().
◆ popWire
|
protected |
Wire at the output end of the pipeline (for convenience)
Definition at line 295 of file buffers.hh.
Referenced by Minor::SelfStallingPipeline< ElemType, ReportTraits, BubbleTraits >::front().
◆ pushWire
|
protected |
Wire at the input end of the pipeline (for convenience)
Definition at line 293 of file buffers.hh.
Referenced by Minor::SelfStallingPipeline< ElemType, ReportTraits, BubbleTraits >::advance(), Minor::SelfStallingPipeline< ElemType, ReportTraits, BubbleTraits >::alreadyPushed(), and Minor::SelfStallingPipeline< ElemType, ReportTraits, BubbleTraits >::push().
◆ stalled
| bool Minor::SelfStallingPipeline< ElemType, ReportTraits, BubbleTraits >::stalled |
If true, advance will not advance the pipeline.
Definition at line 299 of file buffers.hh.
Referenced by Minor::FUPipeline::advance(), and Minor::SelfStallingPipeline< ElemType, ReportTraits, BubbleTraits >::advance().
The documentation for this class was generated from the following file:
- cpu/minor/buffers.hh
