#include <table_walker.hh>

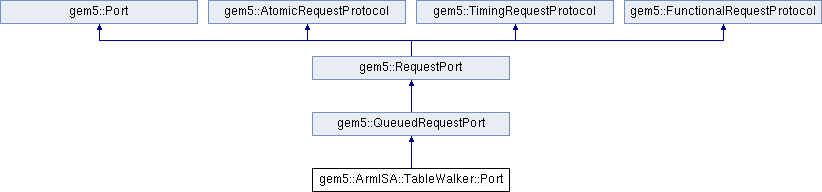

Inheritance diagram for gem5::ArmISA::TableWalker::Port:

Public Member Functions
	Port (TableWalker *_walker, RequestorID id)

void	sendFunctionalReq (Addr desc_addr, int size, uint8_t *data, Request::Flags flag)

void	sendAtomicReq (Addr desc_addr, int size, uint8_t *data, Request::Flags flag, Tick delay)

void	sendTimingReq (Addr desc_addr, int size, uint8_t data, Request::Flags flag, Tick delay, Event event)

bool	recvTimingResp (PacketPtr pkt) override
	Receive a timing response from the peer. More...

Public Member Functions inherited from gem5::QueuedRequestPort
	QueuedRequestPort (const std::string &name, SimObject *owner, ReqPacketQueue &req_queue, SnoopRespPacketQueue &snoop_resp_queue, PortID id=InvalidPortID)
	Create a QueuedPort with a given name, owner, and a supplied implementation of two packet queues. More...

virtual	~QueuedRequestPort ()

void	schedTimingReq (PacketPtr pkt, Tick when)
	Schedule the sending of a timing request. More...

void	schedTimingSnoopResp (PacketPtr pkt, Tick when)
	Schedule the sending of a timing snoop response. More...

bool	trySatisfyFunctional (PacketPtr pkt)
	Check the list of buffered packets against the supplied functional request. More...

Public Member Functions inherited from gem5::RequestPort
	RequestPort (const std::string &name, SimObject *_owner, PortID id=InvalidPortID)
	Request port. More...

virtual	~RequestPort ()

void	bind (Port &peer) override
	Bind this request port to a response port. More...

void	unbind () override
	Unbind this request port and the associated response port. More...

virtual bool	isSnooping () const
	Determine if this request port is snooping or not. More...

AddrRangeList	getAddrRanges () const
	Get the address ranges of the connected responder port. More...

void	printAddr (Addr a)
	Inject a PrintReq for the given address to print the state of that address throughout the memory system. More...

Tick	sendAtomic (PacketPtr pkt)
	Send an atomic request packet, where the data is moved and the state is updated in zero time, without interleaving with other memory accesses. More...

Tick	sendAtomicBackdoor (PacketPtr pkt, MemBackdoorPtr &backdoor)
	Send an atomic request packet like above, but also request a backdoor to the data being accessed. More...

void	sendFunctional (PacketPtr pkt) const
	Send a functional request packet, where the data is instantly updated everywhere in the memory system, without affecting the current state of any block or moving the block. More...

bool	sendTimingReq (PacketPtr pkt)
	Attempt to send a timing request to the responder port by calling its corresponding receive function. More...

bool	tryTiming (PacketPtr pkt) const
	Check if the responder can handle a timing request. More...

bool	sendTimingSnoopResp (PacketPtr pkt)
	Attempt to send a timing snoop response packet to the response port by calling its corresponding receive function. More...

virtual void	sendRetryResp ()
	Send a retry to the response port that previously attempted a sendTimingResp to this request port and failed. More...

Public Member Functions inherited from gem5::Port
virtual	~Port ()
	Virtual destructor due to inheritance. More...

Port &	getPeer ()
	Return a reference to this port's peer. More...

const std::string	name () const
	Return port name (for DPRINTF). More...

PortID	getId () const
	Get the port id. More...

bool	isConnected () const
	Is this port currently connected to a peer? More...

void	takeOverFrom (Port *old)
	A utility function to make it easier to swap out ports. More...

Private Member Functions
void	handleRespPacket (PacketPtr pkt, Tick delay=0)

void	handleResp (TableWalkerState *state, Addr addr, Addr size, Tick delay=0)

PacketPtr	createPacket (Addr desc_addr, int size, uint8_t data, Request::Flags flag, Tick delay, Event event)

Private Attributes
ReqPacketQueue	reqQueue
	Packet queue used to store outgoing requests. More...

SnoopRespPacketQueue	snoopRespQueue
	Packet queue used to store outgoing snoop responses. More...

RequestorID	requestorId
	Cached requestorId of the table walker. More...

Additional Inherited Members
Protected Member Functions inherited from gem5::QueuedRequestPort
void	recvReqRetry ()
	Called by the peer if sendTimingReq was called on this peer (causing recvTimingReq to be called on the peer) and was unsuccessful. More...

void	recvRetrySnoopResp ()
	Called by the peer if sendTimingSnoopResp was called on this protocol (causing recvTimingSnoopResp to be called on the peer) and was unsuccessful. More...

Protected Member Functions inherited from gem5::RequestPort
virtual void	recvRangeChange ()
	Called to receive an address range change from the peer response port. More...

Tick	recvAtomicSnoop (PacketPtr pkt) override
	Default implementations. More...

void	recvFunctionalSnoop (PacketPtr pkt) override
	Receive a functional snoop request packet from the peer. More...

void	recvTimingSnoopReq (PacketPtr pkt) override
	Receive a timing snoop request from the peer. More...

Protected Member Functions inherited from gem5::Port
void	reportUnbound () const

	Port (const std::string &_name, PortID _id)
	Abstract base class for ports. More...

Protected Member Functions inherited from gem5::AtomicRequestProtocol
Tick	send (AtomicResponseProtocol *peer, PacketPtr pkt)
	Send an atomic request packet, where the data is moved and the state is updated in zero time, without interleaving with other memory accesses. More...

Tick	sendBackdoor (AtomicResponseProtocol *peer, PacketPtr pkt, MemBackdoorPtr &backdoor)
	Send an atomic request packet like above, but also request a backdoor to the data being accessed. More...

Protected Member Functions inherited from gem5::TimingRequestProtocol
bool	sendReq (TimingResponseProtocol *peer, PacketPtr pkt)
	Attempt to send a timing request to the peer by calling its corresponding receive function. More...

bool	trySend (TimingResponseProtocol *peer, PacketPtr pkt) const
	Check if the peer can handle a timing request. More...

bool	sendSnoopResp (TimingResponseProtocol *peer, PacketPtr pkt)
	Attempt to send a timing snoop response packet to it's peer by calling its corresponding receive function. More...

void	sendRetryResp (TimingResponseProtocol *peer)
	Send a retry to the peer that previously attempted a sendTimingResp to this protocol and failed. More...

Protected Member Functions inherited from gem5::FunctionalRequestProtocol
void	send (FunctionalResponseProtocol *peer, PacketPtr pkt) const
	Send a functional request packet, where the data is instantly updated everywhere in the memory system, without affecting the current state of any block or moving the block. More...

Protected Attributes inherited from gem5::QueuedRequestPort
ReqPacketQueue &	reqQueue
	Packet queue used to store outgoing requests. More...

SnoopRespPacketQueue &	snoopRespQueue
	Packet queue used to store outgoing snoop responses. More...

Protected Attributes inherited from gem5::RequestPort
SimObject &	owner

Protected Attributes inherited from gem5::Port
const PortID	id
	A numeric identifier to distinguish ports in a vector, and set to InvalidPortID in case this port is not part of a vector. More...

Port *	_peer
	A pointer to this port's peer. More...

bool	_connected
	Whether this port is currently connected to a peer port. More...

Detailed Description

Definition at line 869 of file table_walker.hh.

Constructor & Destructor Documentation

◆ Port()

gem5::TableWalker::Port::Port	(	TableWalker *	_walker,
		RequestorID	id
	)

Definition at line 136 of file table_walker.cc.

Member Function Documentation

◆ createPacket()

PacketPtr gem5::TableWalker::Port::createPacket	(	Addr	desc_addr,
		int	size,
		uint8_t *	data,
		Request::Flags	flag,
		Tick	delay,
		Event *	event
	)

private

Definition at line 145 of file table_walker.cc.

References data, gem5::Packet::dataStatic(), gem5::context_switch_task_id::DMA, gem5::MipsISA::event, gem5::ArmISA::TableWalker::TableWalkerState::event, gem5::MemCmd::ReadReq, gem5::ArmISA::TableWalker::requestorId, and gem5::Packet::senderState.

◆ handleResp()

void gem5::TableWalker::Port::handleResp	(	TableWalkerState *	state,
		Addr	addr,
		Addr	size,
		Tick	delay = `0`
	)

private

Definition at line 228 of file table_walker.cc.

References gem5::curTick(), and gem5::ArmISA::TableWalker::TableWalkerState::event.

◆ handleRespPacket()

void gem5::TableWalker::Port::handleRespPacket	(	PacketPtr	pkt,
		Tick	delay = `0`
	)

private

Definition at line 213 of file table_walker.cc.

References gem5::Packet::getAddr(), gem5::Packet::isResponse(), gem5::Packet::req, and gem5::Packet::senderState.

◆ recvTimingResp()

bool gem5::TableWalker::Port::recvTimingResp ( PacketPtr pkt )

overridevirtual

Receive a timing response from the peer.

Implements gem5::TimingRequestProtocol.

Definition at line 201 of file table_walker.cc.

References gem5::Packet::cacheResponding(), gem5::Packet::hasSharers(), and gem5::Packet::req.

◆ sendAtomicReq()

void gem5::TableWalker::Port::sendAtomicReq	(	Addr	desc_addr,
		int	size,
		uint8_t *	data,
		Request::Flags	flag,
		Tick	delay
	)

Definition at line 178 of file table_walker.cc.

References data.

Referenced by gem5::ArmISA::TableWalker::fetchDescriptor().

◆ sendFunctionalReq()

void gem5::TableWalker::Port::sendFunctionalReq	(	Addr	desc_addr,
		int	size,
		uint8_t *	data,
		Request::Flags	flag
	)

Definition at line 166 of file table_walker.cc.

References data.

Referenced by gem5::ArmISA::TableWalker::fetchDescriptor().

◆ sendTimingReq()

void gem5::TableWalker::Port::sendTimingReq	(	Addr	desc_addr,
		int	size,
		uint8_t *	data,
		Request::Flags	flag,
		Tick	delay,
		Event *	event
	)

Definition at line 190 of file table_walker.cc.

References gem5::curTick(), data, and gem5::MipsISA::event.

Referenced by gem5::ArmISA::TableWalker::fetchDescriptor().

Member Data Documentation

◆ reqQueue

ReqPacketQueue gem5::ArmISA::TableWalker::Port::reqQueue

private

Packet queue used to store outgoing requests.

Definition at line 895 of file table_walker.hh.

◆ requestorId

RequestorID gem5::ArmISA::TableWalker::Port::requestorId

private

Cached requestorId of the table walker.

Definition at line 901 of file table_walker.hh.

◆ snoopRespQueue

SnoopRespPacketQueue gem5::ArmISA::TableWalker::Port::snoopRespQueue

private

Packet queue used to store outgoing snoop responses.

Definition at line 898 of file table_walker.hh.

The documentation for this class was generated from the following files:

arch/arm/table_walker.hh
arch/arm/table_walker.cc
