Implements a local predictor that uses the PC to index into a table of counters. More...

#include <2bit_local.hh>

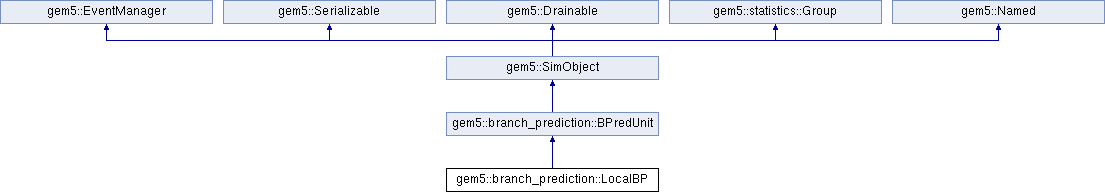

Inheritance diagram for gem5::branch_prediction::LocalBP:

Public Member Functions
	LocalBP (const LocalBPParams &params)
	Default branch predictor constructor. More...

virtual void	uncondBranch (ThreadID tid, Addr pc, void *&bp_history)

bool	lookup (ThreadID tid, Addr branch_addr, void *&bp_history)
	Looks up the given address in the branch predictor and returns a true/false value as to whether it is taken. More...

void	btbUpdate (ThreadID tid, Addr branch_addr, void *&bp_history)
	Updates the branch predictor to Not Taken if a BTB entry is invalid or not found. More...

void	update (ThreadID tid, Addr branch_addr, bool taken, void *bp_history, bool squashed, const StaticInstPtr &inst, Addr corrTarget)
	Updates the branch predictor with the actual result of a branch. More...

void	squash (ThreadID tid, void *bp_history)

Public Member Functions inherited from gem5::branch_prediction::BPredUnit
	BPredUnit (const Params &p)

void	regProbePoints () override
	Register probe points for this object. More...

void	drainSanityCheck () const
	Perform sanity checks after a drain. More...

bool	predict (const StaticInstPtr &inst, const InstSeqNum &seqNum, TheISA::PCState &pc, ThreadID tid)
	Predicts whether or not the instruction is a taken branch, and the target of the branch if it is taken. More...

void	update (const InstSeqNum &done_sn, ThreadID tid)
	Tells the branch predictor to commit any updates until the given sequence number. More...

void	squash (const InstSeqNum &squashed_sn, ThreadID tid)
	Squashes all outstanding updates until a given sequence number. More...

void	squash (const InstSeqNum &squashed_sn, const TheISA::PCState &corr_target, bool actually_taken, ThreadID tid)
	Squashes all outstanding updates until a given sequence number, and corrects that sn's update with the proper address and taken/not taken. More...

bool	BTBValid (Addr instPC)
	Looks up a given PC in the BTB to see if a matching entry exists. More...

TheISA::PCState	BTBLookup (Addr instPC)
	Looks up a given PC in the BTB to get the predicted target. More...

void	BTBUpdate (Addr instPC, const TheISA::PCState &target)
	Updates the BTB with the target of a branch. More...

void	dump ()

Public Member Functions inherited from gem5::SimObject
const Params &	params () const

	SimObject (const Params &p)

virtual	~SimObject ()

virtual void	init ()
	init() is called after all C++ SimObjects have been created and all ports are connected. More...

virtual void	loadState (CheckpointIn &cp)
	loadState() is called on each SimObject when restoring from a checkpoint. More...

virtual void	initState ()
	initState() is called on each SimObject when not restoring from a checkpoint. More...

virtual void	regProbeListeners ()
	Register probe listeners for this object. More...

ProbeManager *	getProbeManager ()
	Get the probe manager for this object. More...

virtual Port &	getPort (const std::string &if_name, PortID idx=InvalidPortID)
	Get a port with a given name and index. More...

virtual void	startup ()
	startup() is the final initialization call before simulation. More...

DrainState	drain () override
	Provide a default implementation of the drain interface for objects that don't need draining. More...

virtual void	memWriteback ()
	Write back dirty buffers to memory using functional writes. More...

virtual void	memInvalidate ()
	Invalidate the contents of memory buffers. More...

void	serialize (CheckpointOut &cp) const override
	Serialize an object. More...

void	unserialize (CheckpointIn &cp) override
	Unserialize an object. More...

Public Member Functions inherited from gem5::EventManager
EventQueue *	eventQueue () const

void	schedule (Event &event, Tick when)

void	deschedule (Event &event)

void	reschedule (Event &event, Tick when, bool always=false)

void	schedule (Event *event, Tick when)

void	deschedule (Event *event)

void	reschedule (Event *event, Tick when, bool always=false)

void	wakeupEventQueue (Tick when=(Tick) -1)
	This function is not needed by the usual gem5 event loop but may be necessary in derived EventQueues which host gem5 on other schedulers. More...

void	setCurTick (Tick newVal)

	EventManager (EventManager &em)
	Event manger manages events in the event queue. More...

	EventManager (EventManager *em)

	EventManager (EventQueue *eq)

Public Member Functions inherited from gem5::Serializable
	Serializable ()

virtual	~Serializable ()

void	serializeSection (CheckpointOut &cp, const char *name) const
	Serialize an object into a new section. More...

void	serializeSection (CheckpointOut &cp, const std::string &name) const

void	unserializeSection (CheckpointIn &cp, const char *name)
	Unserialize an a child object. More...

void	unserializeSection (CheckpointIn &cp, const std::string &name)

Public Member Functions inherited from gem5::Drainable
DrainState	drainState () const
	Return the current drain state of an object. More...

virtual void	notifyFork ()
	Notify a child process of a fork. More...

Public Member Functions inherited from gem5::statistics::Group
	Group (Group parent, const char name=nullptr)
	Construct a new statistics group. More...

virtual	~Group ()

virtual void	regStats ()
	Callback to set stat parameters. More...

virtual void	resetStats ()
	Callback to reset stats. More...

virtual void	preDumpStats ()
	Callback before stats are dumped. More...

void	addStat (statistics::Info *info)
	Register a stat with this group. More...

const std::map< std::string, Group * > &	getStatGroups () const
	Get all child groups associated with this object. More...

const std::vector< Info * > &	getStats () const
	Get all stats associated with this object. More...

void	addStatGroup (const char name, Group block)
	Add a stat block as a child of this block. More...

const Info *	resolveStat (std::string name) const
	Resolve a stat by its name within this group. More...

void	mergeStatGroup (Group *block)
	Merge the contents (stats & children) of a block to this block. More...

	Group ()=delete

	Group (const Group &)=delete

Group &	operator= (const Group &)=delete

Public Member Functions inherited from gem5::Named
	Named (const std::string &name_)

virtual	~Named ()=default

virtual std::string	name () const

Private Member Functions
bool	getPrediction (uint8_t &count)
	Returns the taken/not taken prediction given the value of the counter. More...

unsigned	getLocalIndex (Addr &PC)
	Calculates the local index based on the PC. More...

Private Attributes
const unsigned	localPredictorSize
	Size of the local predictor. More...

const unsigned	localCtrBits
	Number of bits of the local predictor's counters. More...

const unsigned	localPredictorSets
	Number of sets. More...

std::vector< SatCounter8 >	localCtrs
	Array of counters that make up the local predictor. More...

const unsigned	indexMask
	Mask to get index bits. More...

Additional Inherited Members
Public Types inherited from gem5::branch_prediction::BPredUnit
typedef BranchPredictorParams	Params

Public Types inherited from gem5::SimObject
typedef SimObjectParams	Params

Static Public Member Functions inherited from gem5::SimObject
static void	serializeAll (const std::string &cpt_dir)
	Create a checkpoint by serializing all SimObjects in the system. More...

static SimObject *	find (const char *name)
	Find the SimObject with the given name and return a pointer to it. More...

static void	setSimObjectResolver (SimObjectResolver *resolver)
	There is a single object name resolver, and it is only set when simulation is restoring from checkpoints. More...

static SimObjectResolver *	getSimObjectResolver ()
	There is a single object name resolver, and it is only set when simulation is restoring from checkpoints. More...

Static Public Member Functions inherited from gem5::Serializable
static const std::string &	currentSection ()
	Gets the fully-qualified name of the active section. More...

static void	generateCheckpointOut (const std::string &cpt_dir, std::ofstream &outstream)
	Generate a checkpoint file so that the serialization can be routed to it. More...

Protected Member Functions inherited from gem5::branch_prediction::BPredUnit
probing::PMUUPtr	pmuProbePoint (const char *name)
	Helper method to instantiate probe points belonging to this object. More...

Protected Member Functions inherited from gem5::Drainable
	Drainable ()

virtual	~Drainable ()

virtual void	drainResume ()
	Resume execution after a successful drain. More...

void	signalDrainDone () const
	Signal that an object is drained. More...

Protected Attributes inherited from gem5::branch_prediction::BPredUnit
const unsigned	instShiftAmt
	Number of bits to shift instructions by for predictor addresses. More...

probing::PMUUPtr	ppBranches
	Branches seen by the branch predictor. More...

probing::PMUUPtr	ppMisses
	Miss-predicted branches. More...

Protected Attributes inherited from gem5::SimObject
const SimObjectParams &	_params
	Cached copy of the object parameters. More...

Protected Attributes inherited from gem5::EventManager
EventQueue *	eventq
	A pointer to this object's event queue. More...

Detailed Description

Implements a local predictor that uses the PC to index into a table of counters.

Note that any time a pointer to the bp_history is given, it should be NULL using this predictor because it does not have any branch predictor state that needs to be recorded or updated; the update can be determined solely by the branch being taken or not taken.

Definition at line 64 of file 2bit_local.hh.

Constructor & Destructor Documentation

◆ LocalBP()

gem5::branch_prediction::LocalBP::LocalBP ( const LocalBPParams & params )

Default branch predictor constructor.

Definition at line 42 of file 2bit_local.cc.

References DPRINTF, fatal, indexMask, gem5::branch_prediction::BPredUnit::instShiftAmt, gem5::isPowerOf2(), localCtrBits, localPredictorSets, and localPredictorSize.

Member Function Documentation

◆ btbUpdate()

void gem5::branch_prediction::LocalBP::btbUpdate	(	ThreadID	tid,
		Addr	branch_addr,
		void *&	bp_history
	)

virtual

Updates the branch predictor to Not Taken if a BTB entry is invalid or not found.

Parameters

branch_addr	The address of the branch to look up.
bp_history	Pointer to any bp history state.

Returns: Whether or not the branch is taken.

Implements gem5::branch_prediction::BPredUnit.

Definition at line 70 of file 2bit_local.cc.

◆ getLocalIndex()

unsigned gem5::branch_prediction::LocalBP::getLocalIndex ( Addr & PC )

inlineprivate

Calculates the local index based on the PC.

Definition at line 133 of file 2bit_local.cc.

References indexMask, and gem5::branch_prediction::BPredUnit::instShiftAmt.

Referenced by lookup(), and update().

◆ getPrediction()

bool gem5::branch_prediction::LocalBP::getPrediction ( uint8_t & count )

inlineprivate

Returns the taken/not taken prediction given the value of the counter.

Parameters

count The value of the counter.

Returns: The prediction based on the counter value.

Definition at line 125 of file 2bit_local.cc.

References gem5::X86ISA::count, and localCtrBits.

Referenced by lookup().

◆ lookup()

bool gem5::branch_prediction::LocalBP::lookup	(	ThreadID	tid,
		Addr	branch_addr,
		void *&	bp_history
	)

virtual

Looks up the given address in the branch predictor and returns a true/false value as to whether it is taken.

Parameters

branch_addr	The address of the branch to look up.
bp_history	Pointer to any bp history state.

Returns: Whether or not the branch is taken.

Implements gem5::branch_prediction::BPredUnit.

Definition at line 78 of file 2bit_local.cc.

References DPRINTF, getLocalIndex(), getPrediction(), and localCtrs.

◆ squash()

void gem5::branch_prediction::LocalBP::squash	(	ThreadID	tid,
		void *	bp_history
	)

inlinevirtual

Parameters

bp_history Pointer to the history object. The predictor will need to update any state and delete the object.

Implements gem5::branch_prediction::BPredUnit.

Definition at line 100 of file 2bit_local.hh.

◆ uncondBranch()

void gem5::branch_prediction::LocalBP::uncondBranch	(	ThreadID	tid,
		Addr	pc,
		void *&	bp_history
	)

virtual

Implements gem5::branch_prediction::BPredUnit.

Definition at line 139 of file 2bit_local.cc.

◆ update()

void gem5::branch_prediction::LocalBP::update	(	ThreadID	tid,
		Addr	branch_addr,
		bool	taken,
		void *	bp_history,
		bool	squashed,
		const StaticInstPtr &	inst,
		Addr	corrTarget
	)

virtual

Updates the branch predictor with the actual result of a branch.

Parameters

branch_addr	The address of the branch to update.
taken	Whether or not the branch was taken.

Implements gem5::branch_prediction::BPredUnit.

Definition at line 97 of file 2bit_local.cc.

References DPRINTF, getLocalIndex(), and localCtrs.

Member Data Documentation

◆ indexMask

const unsigned gem5::branch_prediction::LocalBP::indexMask

private

Mask to get index bits.

Definition at line 128 of file 2bit_local.hh.

Referenced by getLocalIndex(), and LocalBP().

◆ localCtrBits

const unsigned gem5::branch_prediction::LocalBP::localCtrBits

private

Number of bits of the local predictor's counters.

Definition at line 119 of file 2bit_local.hh.

Referenced by getPrediction(), and LocalBP().

◆ localCtrs

std::vector<SatCounter8> gem5::branch_prediction::LocalBP::localCtrs

private

Array of counters that make up the local predictor.

Definition at line 125 of file 2bit_local.hh.

Referenced by lookup(), and update().

◆ localPredictorSets

const unsigned gem5::branch_prediction::LocalBP::localPredictorSets

private

Number of sets.

Definition at line 122 of file 2bit_local.hh.

Referenced by LocalBP().

◆ localPredictorSize

const unsigned gem5::branch_prediction::LocalBP::localPredictorSize

private

Size of the local predictor.

Definition at line 116 of file 2bit_local.hh.

Referenced by LocalBP().

The documentation for this class was generated from the following files:

cpu/pred/2bit_local.hh
cpu/pred/2bit_local.cc

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ LocalBP()

Member Function Documentation

◆ btbUpdate()

◆ getLocalIndex()

◆ getPrediction()

◆ lookup()

◆ squash()

◆ uncondBranch()

◆ update()

Member Data Documentation

◆ indexMask

◆ localCtrBits

◆ localCtrs

◆ localPredictorSets

◆ localPredictorSize
