General interface to memory device Includes functions and parameters shared across media types. More...

#include <mem_interface.hh>

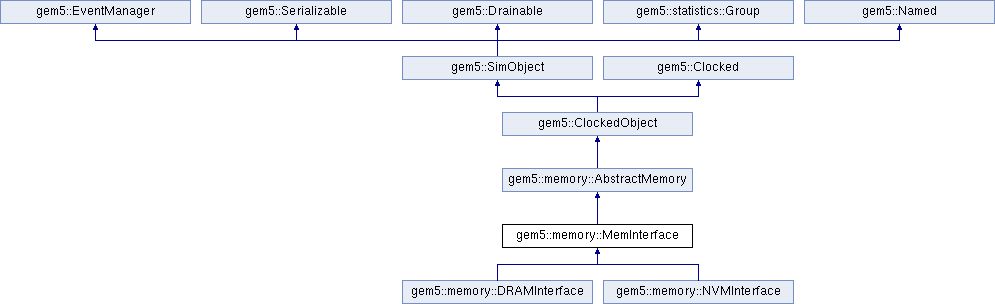

Inheritance diagram for gem5::memory::MemInterface:

Classes
class	Bank
	A basic class to track the bank state, i.e. More...

Public Types
typedef MemInterfaceParams	Params

Public Types inherited from gem5::ClockedObject
using	Params = ClockedObjectParams
	Parameters of ClockedObject. More...

Public Types inherited from gem5::SimObject
typedef SimObjectParams	Params

Public Member Functions
void	setCtrl (MemCtrl *_ctrl, unsigned int command_window)
	Set a pointer to the controller and initialize interface based on controller parameters. More...

Addr	getCtrlAddr (Addr addr)
	Get an address in a dense range which starts from 0. More...

virtual void	setupRank (const uint8_t rank, const bool is_read)=0
	Setup the rank based on packet received. More...

virtual bool	allRanksDrained () const =0
	Check drain state of interface. More...

virtual std::pair< MemPacketQueue::iterator, Tick >	chooseNextFRFCFS (MemPacketQueue &queue, Tick min_col_at) const =0
	For FR-FCFS policy, find first command that can issue Function will be overriden by interface to select based on media characteristics, used to determine when read or write can issue. More...

virtual Tick	accessLatency () const =0

uint32_t	bytesPerBurst () const

virtual Tick	commandOffset () const =0

virtual bool	burstReady (MemPacket *pkt) const =0
	Check if a burst operation can be issued to the interface. More...

Tick	rankDelay () const
	Determine the required delay for an access to a different rank. More...

Tick	minReadToWriteDataGap () const

Tick	minWriteToReadDataGap () const

MemPacket *	decodePacket (const PacketPtr pkt, Addr pkt_addr, unsigned int size, bool is_read, bool is_dram)
	Address decoder to figure out physical mapping onto ranks, banks, and rows. More...

virtual void	addRankToRankDelay (Tick cmd_at)=0
	Add rank to rank delay to bus timing to all banks in all ranks when access to an alternate interface is issued. More...

	MemInterface (const Params &_p)

Public Member Functions inherited from gem5::memory::AbstractMemory
	PARAMS (AbstractMemory)

	AbstractMemory (const Params &p)

virtual	~AbstractMemory ()

void	initState () override
	initState() is called on each SimObject when not restoring from a checkpoint. More...

bool	isNull () const
	See if this is a null memory that should never store data and always return zero. More...

void	setBackingStore (uint8_t *pmem_addr)
	Set the host memory backing store to be used by this memory controller. More...

void	getBackdoor (MemBackdoorPtr &bd_ptr)

const std::list< LockedAddr > &	getLockedAddrList () const
	Get the list of locked addresses to allow checkpointing. More...

void	addLockedAddr (LockedAddr addr)
	Add a locked address to allow for checkpointing. More...

System *	system () const
	read the system pointer Implemented for completeness with the setter More...

void	system (System *sys)
	Set the system pointer on this memory This can't be done via a python parameter because the system needs pointers to all the memories and the reverse would create a cycle in the object graph. More...

AddrRange	getAddrRange () const
	Get the address range. More...

uint8_t *	toHostAddr (Addr addr) const
	Transform a gem5 address space address into its physical counterpart in the host address space. More...

uint64_t	size () const
	Get the memory size. More...

Addr	start () const
	Get the start address. More...

bool	isConfReported () const
	Should this memory be passed to the kernel and part of the OS physical memory layout. More...

bool	isInAddrMap () const
	Some memories are used as shadow memories or should for other reasons not be part of the global address map. More...

bool	isKvmMap () const
	When shadow memories are in use, KVM may want to make one or the other, but cannot map both into the guest address space. More...

void	access (PacketPtr pkt)
	Perform an untimed memory access and update all the state (e.g. More...

void	functionalAccess (PacketPtr pkt)
	Perform an untimed memory read or write without changing anything but the memory itself. More...

Public Member Functions inherited from gem5::ClockedObject
	ClockedObject (const ClockedObjectParams &p)

void	serialize (CheckpointOut &cp) const override
	Serialize an object. More...

void	unserialize (CheckpointIn &cp) override
	Unserialize an object. More...

Public Member Functions inherited from gem5::SimObject
const Params &	params () const

	SimObject (const Params &p)

virtual	~SimObject ()

virtual void	init ()
	init() is called after all C++ SimObjects have been created and all ports are connected. More...

virtual void	loadState (CheckpointIn &cp)
	loadState() is called on each SimObject when restoring from a checkpoint. More...

virtual void	regProbePoints ()
	Register probe points for this object. More...

virtual void	regProbeListeners ()
	Register probe listeners for this object. More...

ProbeManager *	getProbeManager ()
	Get the probe manager for this object. More...

virtual Port &	getPort (const std::string &if_name, PortID idx=InvalidPortID)
	Get a port with a given name and index. More...

virtual void	startup ()
	startup() is the final initialization call before simulation. More...

DrainState	drain () override
	Provide a default implementation of the drain interface for objects that don't need draining. More...

virtual void	memWriteback ()
	Write back dirty buffers to memory using functional writes. More...

virtual void	memInvalidate ()
	Invalidate the contents of memory buffers. More...

void	serialize (CheckpointOut &cp) const override
	Serialize an object. More...

void	unserialize (CheckpointIn &cp) override
	Unserialize an object. More...

Public Member Functions inherited from gem5::EventManager
EventQueue *	eventQueue () const

void	schedule (Event &event, Tick when)

void	deschedule (Event &event)

void	reschedule (Event &event, Tick when, bool always=false)

void	schedule (Event *event, Tick when)

void	deschedule (Event *event)

void	reschedule (Event *event, Tick when, bool always=false)

void	wakeupEventQueue (Tick when=(Tick) -1)
	This function is not needed by the usual gem5 event loop but may be necessary in derived EventQueues which host gem5 on other schedulers. More...

void	setCurTick (Tick newVal)

	EventManager (EventManager &em)
	Event manger manages events in the event queue. More...

	EventManager (EventManager *em)

	EventManager (EventQueue *eq)

Public Member Functions inherited from gem5::Serializable
	Serializable ()

virtual	~Serializable ()

void	serializeSection (CheckpointOut &cp, const char *name) const
	Serialize an object into a new section. More...

void	serializeSection (CheckpointOut &cp, const std::string &name) const

void	unserializeSection (CheckpointIn &cp, const char *name)
	Unserialize an a child object. More...

void	unserializeSection (CheckpointIn &cp, const std::string &name)

Public Member Functions inherited from gem5::Drainable
DrainState	drainState () const
	Return the current drain state of an object. More...

virtual void	notifyFork ()
	Notify a child process of a fork. More...

Public Member Functions inherited from gem5::statistics::Group
	Group (Group parent, const char name=nullptr)
	Construct a new statistics group. More...

virtual	~Group ()

virtual void	regStats ()
	Callback to set stat parameters. More...

virtual void	resetStats ()
	Callback to reset stats. More...

virtual void	preDumpStats ()
	Callback before stats are dumped. More...

void	addStat (statistics::Info *info)
	Register a stat with this group. More...

const std::map< std::string, Group * > &	getStatGroups () const
	Get all child groups associated with this object. More...

const std::vector< Info * > &	getStats () const
	Get all stats associated with this object. More...

void	addStatGroup (const char name, Group block)
	Add a stat block as a child of this block. More...

const Info *	resolveStat (std::string name) const
	Resolve a stat by its name within this group. More...

void	mergeStatGroup (Group *block)
	Merge the contents (stats & children) of a block to this block. More...

	Group ()=delete

	Group (const Group &)=delete

Group &	operator= (const Group &)=delete

Public Member Functions inherited from gem5::Named
	Named (const std::string &name_)

virtual	~Named ()=default

virtual std::string	name () const

Public Member Functions inherited from gem5::Clocked
void	updateClockPeriod ()
	Update the tick to the current tick. More...

Tick	clockEdge (Cycles cycles=Cycles(0)) const
	Determine the tick when a cycle begins, by default the current one, but the argument also enables the caller to determine a future cycle. More...

Cycles	curCycle () const
	Determine the current cycle, corresponding to a tick aligned to a clock edge. More...

Tick	nextCycle () const
	Based on the clock of the object, determine the start tick of the first cycle that is at least one cycle in the future. More...

uint64_t	frequency () const

Tick	clockPeriod () const

double	voltage () const

Cycles	ticksToCycles (Tick t) const

Tick	cyclesToTicks (Cycles c) const

Public Attributes
const uint32_t	readBufferSize
	Buffer sizes for read and write queues in the controller These are passed to the controller on instantiation Defining them here allows for buffers to be resized based on memory type / configuration. More...

const uint32_t	writeBufferSize

Public Attributes inherited from gem5::ClockedObject
PowerState *	powerState

Protected Member Functions
virtual Tick	writeToReadDelay () const

Tick	readToWriteDelay () const

Tick	rankToRankDelay () const

Protected Member Functions inherited from gem5::memory::AbstractMemory
bool	checkLockedAddrList (PacketPtr pkt)

void	trackLoadLocked (PacketPtr pkt)

bool	writeOK (PacketPtr pkt)

Protected Member Functions inherited from gem5::Drainable
	Drainable ()

virtual	~Drainable ()

virtual void	drainResume ()
	Resume execution after a successful drain. More...

void	signalDrainDone () const
	Signal that an object is drained. More...

Protected Member Functions inherited from gem5::Clocked
	Clocked (ClockDomain &clk_domain)
	Create a clocked object and set the clock domain based on the parameters. More...

	Clocked (Clocked &)=delete

Clocked &	operator= (Clocked &)=delete

virtual	~Clocked ()
	Virtual destructor due to inheritance. More...

void	resetClock () const
	Reset the object's clock using the current global tick value. More...

virtual void	clockPeriodUpdated ()
	A hook subclasses can implement so they can do any extra work that's needed when the clock rate is changed. More...

Protected Attributes
MemCtrl *	ctrl
	A pointer to the parent MemCtrl instance. More...

unsigned int	maxCommandsPerWindow
	Number of commands that can issue in the defined controller command window, used to verify command bandwidth. More...

enums::AddrMap	addrMapping
	Memory controller configuration initialized based on parameter values. More...

const uint32_t	burstSize
	General device and channel characteristics The rowsPerBank is determined based on the capacity, number of ranks and banks, the burst size, and the row buffer size. More...

const uint32_t	deviceSize

const uint32_t	deviceRowBufferSize

const uint32_t	devicesPerRank

const uint32_t	rowBufferSize

const uint32_t	burstsPerRowBuffer

const uint32_t	burstsPerStripe

const uint32_t	ranksPerChannel

const uint32_t	banksPerRank

uint32_t	rowsPerBank

const GEM5_CLASS_VAR_USED Tick	tCK
	General timing requirements. More...

const Tick	tCS

const Tick	tBURST

const Tick	tRTW

const Tick	tWTR

Protected Attributes inherited from gem5::memory::AbstractMemory
AddrRange	range

uint8_t *	pmemAddr

MemBackdoor	backdoor

const bool	confTableReported

const bool	inAddrMap

const bool	kvmMap

std::list< LockedAddr >	lockedAddrList

System *	_system
	Pointer to the System object. More...

gem5::memory::AbstractMemory::MemStats	stats

Protected Attributes inherited from gem5::SimObject
const SimObjectParams &	_params
	Cached copy of the object parameters. More...

Protected Attributes inherited from gem5::EventManager
EventQueue *	eventq
	A pointer to this object's event queue. More...

Additional Inherited Members
Static Public Member Functions inherited from gem5::SimObject
static void	serializeAll (const std::string &cpt_dir)
	Create a checkpoint by serializing all SimObjects in the system. More...

static SimObject *	find (const char *name)
	Find the SimObject with the given name and return a pointer to it. More...

static void	setSimObjectResolver (SimObjectResolver *resolver)
	There is a single object name resolver, and it is only set when simulation is restoring from checkpoints. More...

static SimObjectResolver *	getSimObjectResolver ()
	There is a single object name resolver, and it is only set when simulation is restoring from checkpoints. More...

Static Public Member Functions inherited from gem5::Serializable
static const std::string &	currentSection ()
	Gets the fully-qualified name of the active section. More...

static void	generateCheckpointOut (const std::string &cpt_dir, std::ofstream &outstream)
	Generate a checkpoint file so that the serialization can be routed to it. More...

Detailed Description

General interface to memory device Includes functions and parameters shared across media types.

Definition at line 77 of file mem_interface.hh.

Member Typedef Documentation

◆ Params

typedef MemInterfaceParams gem5::memory::MemInterface::Params

Definition at line 298 of file mem_interface.hh.

Constructor & Destructor Documentation

◆ MemInterface()

gem5::memory::MemInterface::MemInterface ( const Params & _p )

Definition at line 60 of file mem_interface.cc.

Member Function Documentation

◆ accessLatency()

virtual Tick gem5::memory::MemInterface::accessLatency ( ) const

pure virtual

Implemented in gem5::memory::NVMInterface, and gem5::memory::DRAMInterface.

◆ addRankToRankDelay()

virtual void gem5::memory::MemInterface::addRankToRankDelay ( Tick cmd_at )

pure virtual

Add rank to rank delay to bus timing to all banks in all ranks when access to an alternate interface is issued.

param cmd_at Time of current command used as starting point for addition of rank-to-rank delay

Implemented in gem5::memory::NVMInterface, and gem5::memory::DRAMInterface.

◆ allRanksDrained()

virtual bool gem5::memory::MemInterface::allRanksDrained ( ) const

pure virtual

Check drain state of interface.

Returns: true if all ranks are drained and idle

Implemented in gem5::memory::NVMInterface, and gem5::memory::DRAMInterface.

◆ burstReady()

virtual bool gem5::memory::MemInterface::burstReady ( MemPacket * pkt ) const

pure virtual

Check if a burst operation can be issued to the interface.

Parameters

Return true if RD/WR can issue

Implemented in gem5::memory::NVMInterface, and gem5::memory::DRAMInterface.

◆ bytesPerBurst()

uint32_t gem5::memory::MemInterface::bytesPerBurst ( ) const

inline

Returns: number of bytes in a burst for this interface

Definition at line 240 of file mem_interface.hh.

References burstSize.

Referenced by gem5::memory::MemCtrl::addToReadQueue(), gem5::memory::MemCtrl::addToWriteQueue(), gem5::memory::MemCtrl::burstAlign(), gem5::memory::MemCtrl::processNextReqEvent(), and gem5::memory::MemCtrl::recvTimingReq().

◆ chooseNextFRFCFS()

virtual std::pair<MemPacketQueue::iterator, Tick> gem5::memory::MemInterface::chooseNextFRFCFS	(	MemPacketQueue &	queue,
		Tick	min_col_at
	)		const

pure virtual

For FR-FCFS policy, find first command that can issue Function will be overriden by interface to select based on media characteristics, used to determine when read or write can issue.

Parameters

queue	Queued requests to consider
min_col_at	Minimum tick for 'seamless' issue

Returns: an iterator to the selected packet, else queue.end(); the tick when the packet selected will issue

Implemented in gem5::memory::NVMInterface, and gem5::memory::DRAMInterface.

◆ commandOffset()

virtual Tick gem5::memory::MemInterface::commandOffset ( ) const

pure virtual

Implemented in gem5::memory::NVMInterface, and gem5::memory::DRAMInterface.

◆ decodePacket()

MemPacket * gem5::memory::MemInterface::decodePacket	(	const PacketPtr	pkt,
		Addr	pkt_addr,
		unsigned int	size,
		bool	is_read,
		bool	is_dram
	)

Address decoder to figure out physical mapping onto ranks, banks, and rows.

This function is called multiple times on the same system packet if the pakcet is larger than burst of the memory. The pkt_addr is used for the offset within the packet.

Parameters

pkt	The packet from the outside world
pkt_addr	The starting address of the packet
size	The size of the packet in bytes
is_read	Is the request for a read or a write to memory
is_dram	Is the request to a DRAM interface

Returns: A MemPacket pointer with the decoded information

Definition at line 89 of file mem_interface.cc.

References gem5::X86ISA::addr, addrMapping, banksPerRank, burstSize, burstsPerRowBuffer, burstsPerStripe, DPRINTF, getCtrlAddr(), gem5::memory::MemInterface::Bank::NO_ROW, panic, ranksPerChannel, rowsPerBank, and gem5::memory::AbstractMemory::size().

Referenced by gem5::memory::MemCtrl::addToReadQueue(), and gem5::memory::MemCtrl::addToWriteQueue().

◆ getCtrlAddr()

Addr gem5::memory::MemInterface::getCtrlAddr ( Addr addr )

inline

Get an address in a dense range which starts from 0.

The input address is the physical address of the request in an address space that contains other SimObjects apart from this controller.

Parameters

addr	The intput address which should be in the addrRange

Returns: An address in the continues range [0, max)

Definition at line 200 of file mem_interface.hh.

References gem5::X86ISA::addr, gem5::AddrRange::getOffset(), and gem5::memory::AbstractMemory::range.

Referenced by decodePacket().

◆ minReadToWriteDataGap()

Tick gem5::memory::MemInterface::minReadToWriteDataGap ( ) const

inline

Returns: minimum additional bus turnaround required for read-to-write

Definition at line 265 of file mem_interface.hh.

References tCS, and tRTW.

Referenced by gem5::memory::MemCtrl::minReadToWriteDataGap().

◆ minWriteToReadDataGap()

Tick gem5::memory::MemInterface::minWriteToReadDataGap ( ) const

inline

Returns: minimum additional bus turnaround required for write-to-read

Definition at line 271 of file mem_interface.hh.

References tCS, and tWTR.

Referenced by gem5::memory::MemCtrl::minWriteToReadDataGap().

◆ rankDelay()

Tick gem5::memory::MemInterface::rankDelay ( ) const

inline

Determine the required delay for an access to a different rank.

Returns: required rank to rank delay

Definition at line 259 of file mem_interface.hh.

References tCS.

◆ rankToRankDelay()

Tick gem5::memory::MemInterface::rankToRankDelay ( ) const

inlineprotected

Definition at line 169 of file mem_interface.hh.

References tBURST, and tCS.

Referenced by gem5::memory::DRAMInterface::addRankToRankDelay(), gem5::memory::NVMInterface::addRankToRankDelay(), gem5::memory::DRAMInterface::doBurstAccess(), and gem5::memory::NVMInterface::doBurstAccess().

◆ readToWriteDelay()

Tick gem5::memory::MemInterface::readToWriteDelay ( ) const

inlineprotected

Definition at line 164 of file mem_interface.hh.

References tBURST, and tRTW.

Referenced by gem5::memory::DRAMInterface::doBurstAccess(), and gem5::memory::NVMInterface::doBurstAccess().

◆ setCtrl()

void gem5::memory::MemInterface::setCtrl	(	MemCtrl *	_ctrl,
		unsigned int	command_window
	)

Set a pointer to the controller and initialize interface based on controller parameters.

Parameters

_ctrl	pointer to the parent controller
command_window	size of command window used to check command bandwidth

Definition at line 82 of file mem_interface.cc.

References ctrl, maxCommandsPerWindow, and tCK.

◆ setupRank()

virtual void gem5::memory::MemInterface::setupRank	(	const uint8_t	rank,
		const bool	is_read
	)

pure virtual

Setup the rank based on packet received.

Parameters

integer	value of rank to be setup. used to index ranks vector
are	we setting up rank for read or write packet?

Implemented in gem5::memory::NVMInterface, and gem5::memory::DRAMInterface.

◆ writeToReadDelay()

virtual Tick gem5::memory::MemInterface::writeToReadDelay ( ) const

inlineprotectedvirtual

Reimplemented in gem5::memory::DRAMInterface.

Definition at line 159 of file mem_interface.hh.

References tBURST, and tWTR.

Referenced by gem5::memory::NVMInterface::doBurstAccess().

Member Data Documentation

◆ addrMapping

enums::AddrMap gem5::memory::MemInterface::addrMapping

protected

Memory controller configuration initialized based on parameter values.

Definition at line 129 of file mem_interface.hh.

Referenced by decodePacket(), and gem5::memory::DRAMInterface::init().

◆ banksPerRank

const uint32_t gem5::memory::MemInterface::banksPerRank

protected

Definition at line 144 of file mem_interface.hh.

Referenced by gem5::memory::DRAMInterface::activateBank(), gem5::memory::DRAMInterface::addRankToRankDelay(), gem5::memory::NVMInterface::addRankToRankDelay(), decodePacket(), gem5::memory::DRAMInterface::doBurstAccess(), gem5::memory::NVMInterface::doBurstAccess(), gem5::memory::DRAMInterface::DRAMInterface(), gem5::memory::DRAMInterface::minBankPrep(), and gem5::memory::DRAMInterface::prechargeBank().

◆ burstSize

const uint32_t gem5::memory::MemInterface::burstSize

protected

General device and channel characteristics The rowsPerBank is determined based on the capacity, number of ranks and banks, the burst size, and the row buffer size.

Definition at line 136 of file mem_interface.hh.

Referenced by bytesPerBurst(), gem5::memory::NVMInterface::chooseRead(), decodePacket(), gem5::memory::DRAMInterface::doBurstAccess(), gem5::memory::NVMInterface::doBurstAccess(), and gem5::memory::DRAMInterface::DRAMInterface().

◆ burstsPerRowBuffer

const uint32_t gem5::memory::MemInterface::burstsPerRowBuffer

protected

Definition at line 141 of file mem_interface.hh.

Referenced by decodePacket(), gem5::memory::DRAMInterface::DRAMInterface(), and gem5::memory::DRAMInterface::init().

◆ burstsPerStripe

const uint32_t gem5::memory::MemInterface::burstsPerStripe

protected

Definition at line 142 of file mem_interface.hh.

Referenced by decodePacket(), and gem5::memory::DRAMInterface::init().

◆ ctrl

MemCtrl* gem5::memory::MemInterface::ctrl

protected

A pointer to the parent MemCtrl instance.

Definition at line 117 of file mem_interface.hh.

Referenced by gem5::memory::DRAMInterface::activateBank(), gem5::memory::NVMInterface::burstReady(), gem5::memory::NVMInterface::chooseRead(), gem5::memory::DRAMInterface::doBurstAccess(), gem5::memory::NVMInterface::doBurstAccess(), gem5::memory::NVMInterface::isBusy(), gem5::memory::DRAMInterface::minBankPrep(), gem5::memory::DRAMInterface::prechargeBank(), gem5::memory::NVMInterface::processReadReadyEvent(), gem5::memory::NVMInterface::processWriteRespondEvent(), and setCtrl().

◆ deviceRowBufferSize

const uint32_t gem5::memory::MemInterface::deviceRowBufferSize

protected

Definition at line 138 of file mem_interface.hh.

◆ deviceSize

const uint32_t gem5::memory::MemInterface::deviceSize

protected

Definition at line 137 of file mem_interface.hh.

Referenced by gem5::memory::DRAMInterface::DRAMInterface().

◆ devicesPerRank

const uint32_t gem5::memory::MemInterface::devicesPerRank

protected

Definition at line 139 of file mem_interface.hh.

Referenced by gem5::memory::DRAMInterface::DRAMInterface().

◆ maxCommandsPerWindow

unsigned int gem5::memory::MemInterface::maxCommandsPerWindow

protected

Number of commands that can issue in the defined controller command window, used to verify command bandwidth.

Definition at line 123 of file mem_interface.hh.

Referenced by gem5::memory::DRAMInterface::activateBank(), gem5::memory::NVMInterface::chooseRead(), gem5::memory::DRAMInterface::doBurstAccess(), gem5::memory::NVMInterface::doBurstAccess(), gem5::memory::DRAMInterface::prechargeBank(), and setCtrl().

◆ ranksPerChannel

const uint32_t gem5::memory::MemInterface::ranksPerChannel

protected

Definition at line 143 of file mem_interface.hh.

Referenced by gem5::memory::DRAMInterface::chooseNextFRFCFS(), decodePacket(), gem5::memory::DRAMInterface::doBurstAccess(), gem5::memory::DRAMInterface::DRAMInterface(), gem5::memory::DRAMInterface::isBusy(), and gem5::memory::DRAMInterface::minBankPrep().

◆ readBufferSize

const uint32_t gem5::memory::MemInterface::readBufferSize

Buffer sizes for read and write queues in the controller These are passed to the controller on instantiation Defining them here allows for buffers to be resized based on memory type / configuration.

Definition at line 180 of file mem_interface.hh.

◆ rowBufferSize

const uint32_t gem5::memory::MemInterface::rowBufferSize

protected

Definition at line 140 of file mem_interface.hh.

Referenced by gem5::memory::DRAMInterface::DRAMInterface(), and gem5::memory::DRAMInterface::init().

◆ rowsPerBank

uint32_t gem5::memory::MemInterface::rowsPerBank

protected

Definition at line 145 of file mem_interface.hh.

Referenced by decodePacket(), and gem5::memory::DRAMInterface::DRAMInterface().

◆ tBURST

const Tick gem5::memory::MemInterface::tBURST

protected

Definition at line 152 of file mem_interface.hh.

Referenced by gem5::memory::DRAMInterface::burstDelay(), gem5::memory::NVMInterface::commandOffset(), gem5::memory::DRAMInterface::doBurstAccess(), gem5::memory::NVMInterface::doBurstAccess(), gem5::memory::DRAMInterface::DRAMInterface(), rankToRankDelay(), readToWriteDelay(), writeToReadDelay(), and gem5::memory::DRAMInterface::writeToReadDelay().

◆ tCK

const GEM5_CLASS_VAR_USED Tick gem5::memory::MemInterface::tCK

protected

General timing requirements.

Definition at line 150 of file mem_interface.hh.

Referenced by gem5::memory::DRAMInterface::activateBank(), gem5::memory::NVMInterface::chooseRead(), gem5::memory::DRAMInterface::doBurstAccess(), gem5::memory::NVMInterface::doBurstAccess(), gem5::memory::DRAMInterface::prechargeBank(), setCtrl(), and gem5::memory::DRAMInterface::startup().

◆ tCS

const Tick gem5::memory::MemInterface::tCS

protected

Definition at line 151 of file mem_interface.hh.

Referenced by minReadToWriteDataGap(), minWriteToReadDataGap(), rankDelay(), and rankToRankDelay().

◆ tRTW

const Tick gem5::memory::MemInterface::tRTW

protected

Definition at line 153 of file mem_interface.hh.

Referenced by minReadToWriteDataGap(), and readToWriteDelay().

◆ tWTR

const Tick gem5::memory::MemInterface::tWTR

protected

Definition at line 154 of file mem_interface.hh.

Referenced by minWriteToReadDataGap(), writeToReadDelay(), and gem5::memory::DRAMInterface::writeToReadDelay().

◆ writeBufferSize

const uint32_t gem5::memory::MemInterface::writeBufferSize

Definition at line 181 of file mem_interface.hh.

The documentation for this class was generated from the following files:

mem/mem_interface.hh
mem/mem_interface.cc

Classes

Public Types

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Params

Constructor & Destructor Documentation

◆ MemInterface()

Member Function Documentation

◆ accessLatency()

◆ addRankToRankDelay()

◆ allRanksDrained()

◆ burstReady()

◆ bytesPerBurst()

◆ chooseNextFRFCFS()

◆ commandOffset()

◆ decodePacket()

◆ getCtrlAddr()

◆ minReadToWriteDataGap()

◆ minWriteToReadDataGap()

◆ rankDelay()

◆ rankToRankDelay()

◆ readToWriteDelay()

◆ setCtrl()

◆ setupRank()

◆ writeToReadDelay()

Member Data Documentation

◆ addrMapping

◆ banksPerRank

◆ burstSize

◆ burstsPerRowBuffer

◆ burstsPerStripe

◆ ctrl

◆ deviceRowBufferSize

◆ deviceSize

◆ devicesPerRank

◆ maxCommandsPerWindow

◆ ranksPerChannel

◆ readBufferSize

◆ rowBufferSize

◆ rowsPerBank

◆ tBURST

◆ tCK

◆ tCS

◆ tRTW

◆ tWTR

◆ writeBufferSize
