#include <GarnetSyntheticTraffic.hh>

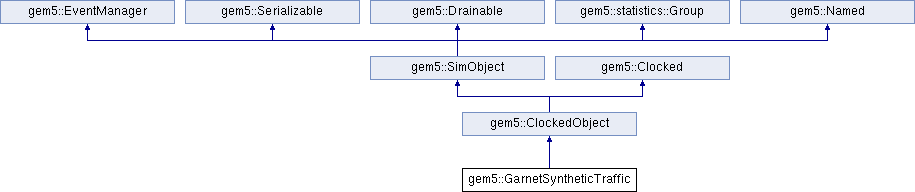

Inheritance diagram for gem5::GarnetSyntheticTraffic:

Classes
class	CpuPort

class	GarnetSyntheticTrafficSenderState

Public Types
typedef GarnetSyntheticTrafficParams	Params

Public Types inherited from gem5::ClockedObject
using	Params = ClockedObjectParams
	Parameters of ClockedObject. More...

Public Types inherited from gem5::SimObject
typedef SimObjectParams	Params

Public Member Functions
	GarnetSyntheticTraffic (const Params &p)

void	init () override
	init() is called after all C++ SimObjects have been created and all ports are connected. More...

void	tick ()

Port &	getPort (const std::string &if_name, PortID idx=InvalidPortID) override
	Get a port with a given name and index. More...

void	printAddr (Addr a)
	Print state of address in memory system via PrintReq (for debugging). More...

Public Member Functions inherited from gem5::ClockedObject
	ClockedObject (const ClockedObjectParams &p)

void	serialize (CheckpointOut &cp) const override
	Serialize an object. More...

void	unserialize (CheckpointIn &cp) override
	Unserialize an object. More...

Public Member Functions inherited from gem5::SimObject
const Params &	params () const

	SimObject (const Params &p)

virtual	~SimObject ()

virtual void	loadState (CheckpointIn &cp)
	loadState() is called on each SimObject when restoring from a checkpoint. More...

virtual void	initState ()
	initState() is called on each SimObject when not restoring from a checkpoint. More...

virtual void	regProbePoints ()
	Register probe points for this object. More...

virtual void	regProbeListeners ()
	Register probe listeners for this object. More...

ProbeManager *	getProbeManager ()
	Get the probe manager for this object. More...

virtual void	startup ()
	startup() is the final initialization call before simulation. More...

DrainState	drain () override
	Provide a default implementation of the drain interface for objects that don't need draining. More...

virtual void	memWriteback ()
	Write back dirty buffers to memory using functional writes. More...

virtual void	memInvalidate ()
	Invalidate the contents of memory buffers. More...

void	serialize (CheckpointOut &cp) const override
	Serialize an object. More...

void	unserialize (CheckpointIn &cp) override
	Unserialize an object. More...

Public Member Functions inherited from gem5::EventManager
EventQueue *	eventQueue () const

void	schedule (Event &event, Tick when)

void	deschedule (Event &event)

void	reschedule (Event &event, Tick when, bool always=false)

void	schedule (Event *event, Tick when)

void	deschedule (Event *event)

void	reschedule (Event *event, Tick when, bool always=false)

void	wakeupEventQueue (Tick when=(Tick) -1)
	This function is not needed by the usual gem5 event loop but may be necessary in derived EventQueues which host gem5 on other schedulers. More...

void	setCurTick (Tick newVal)

	EventManager (EventManager &em)
	Event manger manages events in the event queue. More...

	EventManager (EventManager *em)

	EventManager (EventQueue *eq)

Public Member Functions inherited from gem5::Serializable
	Serializable ()

virtual	~Serializable ()

void	serializeSection (CheckpointOut &cp, const char *name) const
	Serialize an object into a new section. More...

void	serializeSection (CheckpointOut &cp, const std::string &name) const

void	unserializeSection (CheckpointIn &cp, const char *name)
	Unserialize an a child object. More...

void	unserializeSection (CheckpointIn &cp, const std::string &name)

Public Member Functions inherited from gem5::Drainable
DrainState	drainState () const
	Return the current drain state of an object. More...

virtual void	notifyFork ()
	Notify a child process of a fork. More...

Public Member Functions inherited from gem5::statistics::Group
	Group (Group parent, const char name=nullptr)
	Construct a new statistics group. More...

virtual	~Group ()

virtual void	regStats ()
	Callback to set stat parameters. More...

virtual void	resetStats ()
	Callback to reset stats. More...

virtual void	preDumpStats ()
	Callback before stats are dumped. More...

void	addStat (statistics::Info *info)
	Register a stat with this group. More...

const std::map< std::string, Group * > &	getStatGroups () const
	Get all child groups associated with this object. More...

const std::vector< Info * > &	getStats () const
	Get all stats associated with this object. More...

void	addStatGroup (const char name, Group block)
	Add a stat block as a child of this block. More...

const Info *	resolveStat (std::string name) const
	Resolve a stat by its name within this group. More...

void	mergeStatGroup (Group *block)
	Merge the contents (stats & children) of a block to this block. More...

	Group ()=delete

	Group (const Group &)=delete

Group &	operator= (const Group &)=delete

Public Member Functions inherited from gem5::Named
	Named (const std::string &name_)

virtual	~Named ()=default

virtual std::string	name () const

Public Member Functions inherited from gem5::Clocked
void	updateClockPeriod ()
	Update the tick to the current tick. More...

Tick	clockEdge (Cycles cycles=Cycles(0)) const
	Determine the tick when a cycle begins, by default the current one, but the argument also enables the caller to determine a future cycle. More...

Cycles	curCycle () const
	Determine the current cycle, corresponding to a tick aligned to a clock edge. More...

Tick	nextCycle () const
	Based on the clock of the object, determine the start tick of the first cycle that is at least one cycle in the future. More...

uint64_t	frequency () const

Tick	clockPeriod () const

double	voltage () const

Cycles	ticksToCycles (Tick t) const

Tick	cyclesToTicks (Cycles c) const

Protected Member Functions
void	completeRequest (PacketPtr pkt)

void	generatePkt ()

void	sendPkt (PacketPtr pkt)

void	initTrafficType ()

void	doRetry ()

Protected Member Functions inherited from gem5::Drainable
	Drainable ()

virtual	~Drainable ()

virtual void	drainResume ()
	Resume execution after a successful drain. More...

void	signalDrainDone () const
	Signal that an object is drained. More...

Protected Member Functions inherited from gem5::Clocked
	Clocked (ClockDomain &clk_domain)
	Create a clocked object and set the clock domain based on the parameters. More...

	Clocked (Clocked &)=delete

Clocked &	operator= (Clocked &)=delete

virtual	~Clocked ()
	Virtual destructor due to inheritance. More...

void	resetClock () const
	Reset the object's clock using the current global tick value. More...

virtual void	clockPeriodUpdated ()
	A hook subclasses can implement so they can do any extra work that's needed when the clock rate is changed. More...

Protected Attributes
EventFunctionWrapper	tickEvent

CpuPort	cachePort

PacketPtr	retryPkt

unsigned	size

int	id

std::map< std::string, TrafficType >	trafficStringToEnum

unsigned	blockSizeBits

Tick	noResponseCycles

int	numDestinations

Tick	simCycles

int	numPacketsMax

int	numPacketsSent

int	singleSender

int	singleDest

std::string	trafficType

TrafficType	traffic

double	injRate

int	injVnet

int	precision

const Cycles	responseLimit

RequestorID	requestorId

Protected Attributes inherited from gem5::SimObject
const SimObjectParams &	_params
	Cached copy of the object parameters. More...

Protected Attributes inherited from gem5::EventManager
EventQueue *	eventq
	A pointer to this object's event queue. More...

Friends
class	MemCompleteEvent

Additional Inherited Members
Static Public Member Functions inherited from gem5::SimObject
static void	serializeAll (const std::string &cpt_dir)
	Create a checkpoint by serializing all SimObjects in the system. More...

static SimObject *	find (const char *name)
	Find the SimObject with the given name and return a pointer to it. More...

static void	setSimObjectResolver (SimObjectResolver *resolver)
	There is a single object name resolver, and it is only set when simulation is restoring from checkpoints. More...

static SimObjectResolver *	getSimObjectResolver ()
	There is a single object name resolver, and it is only set when simulation is restoring from checkpoints. More...

Static Public Member Functions inherited from gem5::Serializable
static const std::string &	currentSection ()
	Gets the fully-qualified name of the active section. More...

static void	generateCheckpointOut (const std::string &cpt_dir, std::ofstream &outstream)
	Generate a checkpoint file so that the serialization can be routed to it. More...

Public Attributes inherited from gem5::ClockedObject
PowerState *	powerState

Detailed Description

Definition at line 57 of file GarnetSyntheticTraffic.hh.

Member Typedef Documentation

◆ Params

typedef GarnetSyntheticTrafficParams gem5::GarnetSyntheticTraffic::Params

Definition at line 60 of file GarnetSyntheticTraffic.hh.

Constructor & Destructor Documentation

◆ GarnetSyntheticTraffic()

gem5::GarnetSyntheticTraffic::GarnetSyntheticTraffic ( const Params & p )

Definition at line 75 of file GarnetSyntheticTraffic.cc.

References tick().

Member Function Documentation

◆ completeRequest()

void gem5::GarnetSyntheticTraffic::completeRequest ( PacketPtr pkt )

protected

Definition at line 128 of file GarnetSyntheticTraffic.cc.

References DPRINTF, gem5::Packet::isResponse(), gem5::Packet::isWrite(), noResponseCycles, and gem5::Packet::req.

Referenced by gem5::GarnetSyntheticTraffic::CpuPort::recvTimingResp().

◆ doRetry()

void gem5::GarnetSyntheticTraffic::doRetry ( )

protected

Definition at line 340 of file GarnetSyntheticTraffic.cc.

References cachePort, retryPkt, and gem5::RequestPort::sendTimingReq().

◆ generatePkt()

void gem5::GarnetSyntheticTraffic::generatePkt ( )

protected

◆ getPort()

Port & gem5::GarnetSyntheticTraffic::getPort	(	const std::string &	if_name,
		PortID	idx = `InvalidPortID`
	)

overridevirtual

Get a port with a given name and index.

This is used at binding time and returns a reference to a protocol-agnostic port.

gem5 has a request and response port interface. All memory objects are connected together via ports. These ports provide a rigid interface between these memory objects. These ports implement three different memory system modes: timing, atomic, and functional. The most important mode is the timing mode and here timing mode is used for conducting cycle-level timing experiments. The other modes are only used in special circumstances and should not be used to conduct cycle-level timing experiments. The other modes are only used in special circumstances. These ports allow SimObjects to communicate with each other.

Parameters

if_name	Port name
idx	Index in the case of a VectorPort

Returns: A reference to the given port

Reimplemented from gem5::SimObject.

Definition at line 112 of file GarnetSyntheticTraffic.cc.

References cachePort, and gem5::SimObject::getPort().

◆ init()

void gem5::GarnetSyntheticTraffic::init ( )

overridevirtual

init() is called after all C++ SimObjects have been created and all ports are connected.

Initializations that are independent of unserialization but rely on a fully instantiated and connected SimObject graph should be done here.

Reimplemented from gem5::SimObject.

Definition at line 121 of file GarnetSyntheticTraffic.cc.

References numPacketsSent.

◆ initTrafficType()

void gem5::GarnetSyntheticTraffic::initTrafficType ( )

protected

Definition at line 327 of file GarnetSyntheticTraffic.cc.

References gem5::BIT_COMPLEMENT_, gem5::BIT_REVERSE_, gem5::BIT_ROTATION_, gem5::NEIGHBOR_, gem5::SHUFFLE_, gem5::TORNADO_, trafficStringToEnum, gem5::TRANSPOSE_, and gem5::UNIFORM_RANDOM_.

◆ printAddr()

void gem5::GarnetSyntheticTraffic::printAddr ( Addr a )

Print state of address in memory system via PrintReq (for debugging).

Definition at line 348 of file GarnetSyntheticTraffic.cc.

References gem5::ArmISA::a, cachePort, and gem5::RequestPort::printAddr().

◆ sendPkt()

void gem5::GarnetSyntheticTraffic::sendPkt ( PacketPtr pkt )

protected

Definition at line 67 of file GarnetSyntheticTraffic.cc.

References cachePort, numPacketsSent, retryPkt, and gem5::RequestPort::sendTimingReq().

Referenced by generatePkt().

◆ tick()

void gem5::GarnetSyntheticTraffic::tick ( )

Definition at line 142 of file GarnetSyntheticTraffic.cc.

References gem5::Clocked::clockEdge(), gem5::curTick(), gem5::exitSimLoop(), fatal, generatePkt(), injRate, gem5::Named::name(), noResponseCycles, numPacketsMax, numPacketsSent, precision, gem5::Random::random(), gem5::random_mt, responseLimit, gem5::EventManager::schedule(), gem5::Event::scheduled(), simCycles, singleSender, and tickEvent.

Referenced by GarnetSyntheticTraffic().

Friends And Related Function Documentation

◆ MemCompleteEvent

friend class MemCompleteEvent

friend

Definition at line 146 of file GarnetSyntheticTraffic.hh.

Member Data Documentation

◆ blockSizeBits

unsigned gem5::GarnetSyntheticTraffic::blockSizeBits

protected

Definition at line 117 of file GarnetSyntheticTraffic.hh.

Referenced by generatePkt().

◆ cachePort

CpuPort gem5::GarnetSyntheticTraffic::cachePort

protected

Definition at line 97 of file GarnetSyntheticTraffic.hh.

Referenced by doRetry(), getPort(), printAddr(), and sendPkt().

◆ id

int gem5::GarnetSyntheticTraffic::id

protected

Definition at line 113 of file GarnetSyntheticTraffic.hh.

Referenced by generatePkt().

◆ injRate

double gem5::GarnetSyntheticTraffic::injRate

protected

Definition at line 130 of file GarnetSyntheticTraffic.hh.

Referenced by tick().

◆ injVnet

int gem5::GarnetSyntheticTraffic::injVnet

protected

Definition at line 131 of file GarnetSyntheticTraffic.hh.

Referenced by generatePkt().

◆ noResponseCycles

Tick gem5::GarnetSyntheticTraffic::noResponseCycles

protected

Definition at line 119 of file GarnetSyntheticTraffic.hh.

Referenced by completeRequest(), and tick().

◆ numDestinations

int gem5::GarnetSyntheticTraffic::numDestinations

protected

Definition at line 121 of file GarnetSyntheticTraffic.hh.

Referenced by generatePkt().

◆ numPacketsMax

int gem5::GarnetSyntheticTraffic::numPacketsMax

protected

Definition at line 123 of file GarnetSyntheticTraffic.hh.

Referenced by tick().

◆ numPacketsSent

int gem5::GarnetSyntheticTraffic::numPacketsSent

protected

Definition at line 124 of file GarnetSyntheticTraffic.hh.

Referenced by init(), sendPkt(), and tick().

◆ precision

int gem5::GarnetSyntheticTraffic::precision

protected

Definition at line 132 of file GarnetSyntheticTraffic.hh.

Referenced by tick().

◆ requestorId

RequestorID gem5::GarnetSyntheticTraffic::requestorId

protected

Definition at line 136 of file GarnetSyntheticTraffic.hh.

Referenced by generatePkt().

◆ responseLimit

const Cycles gem5::GarnetSyntheticTraffic::responseLimit

protected

Definition at line 134 of file GarnetSyntheticTraffic.hh.

Referenced by tick().

◆ retryPkt

PacketPtr gem5::GarnetSyntheticTraffic::retryPkt

protected

Definition at line 111 of file GarnetSyntheticTraffic.hh.

Referenced by doRetry(), and sendPkt().

◆ simCycles

Tick gem5::GarnetSyntheticTraffic::simCycles

protected

Definition at line 122 of file GarnetSyntheticTraffic.hh.

Referenced by tick().

◆ singleDest

int gem5::GarnetSyntheticTraffic::singleDest

protected

Definition at line 126 of file GarnetSyntheticTraffic.hh.

Referenced by generatePkt().

◆ singleSender

int gem5::GarnetSyntheticTraffic::singleSender

protected

Definition at line 125 of file GarnetSyntheticTraffic.hh.

Referenced by tick().

◆ size

unsigned gem5::GarnetSyntheticTraffic::size

protected

Definition at line 112 of file GarnetSyntheticTraffic.hh.

◆ tickEvent

EventFunctionWrapper gem5::GarnetSyntheticTraffic::tickEvent

protected

Definition at line 78 of file GarnetSyntheticTraffic.hh.

Referenced by tick().

◆ traffic

TrafficType gem5::GarnetSyntheticTraffic::traffic

protected

Definition at line 129 of file GarnetSyntheticTraffic.hh.

Referenced by generatePkt().

◆ trafficStringToEnum

std::map<std::string, TrafficType> gem5::GarnetSyntheticTraffic::trafficStringToEnum

protected

Definition at line 115 of file GarnetSyntheticTraffic.hh.

Referenced by initTrafficType().

◆ trafficType

std::string gem5::GarnetSyntheticTraffic::trafficType

protected

Definition at line 128 of file GarnetSyntheticTraffic.hh.

The documentation for this class was generated from the following files:

cpu/testers/garnet_synthetic_traffic/GarnetSyntheticTraffic.hh
cpu/testers/garnet_synthetic_traffic/GarnetSyntheticTraffic.cc

Classes

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Params

Constructor & Destructor Documentation

◆ GarnetSyntheticTraffic()

Member Function Documentation

◆ completeRequest()

◆ doRetry()

◆ generatePkt()

◆ getPort()

◆ init()

◆ initTrafficType()

◆ printAddr()

◆ sendPkt()

◆ tick()

Friends And Related Function Documentation

◆ MemCompleteEvent

Member Data Documentation

◆ blockSizeBits

◆ cachePort

◆ id

◆ injRate

◆ injVnet

◆ noResponseCycles

◆ numDestinations

◆ numPacketsMax

◆ numPacketsSent

◆ precision

◆ requestorId

◆ responseLimit

◆ retryPkt

◆ simCycles

◆ singleDest

◆ singleSender

◆ size

◆ tickEvent

◆ traffic

◆ trafficStringToEnum

◆ trafficType
