sc_gem5::Sensitivity Class Reference

#include <sensitivity.hh>

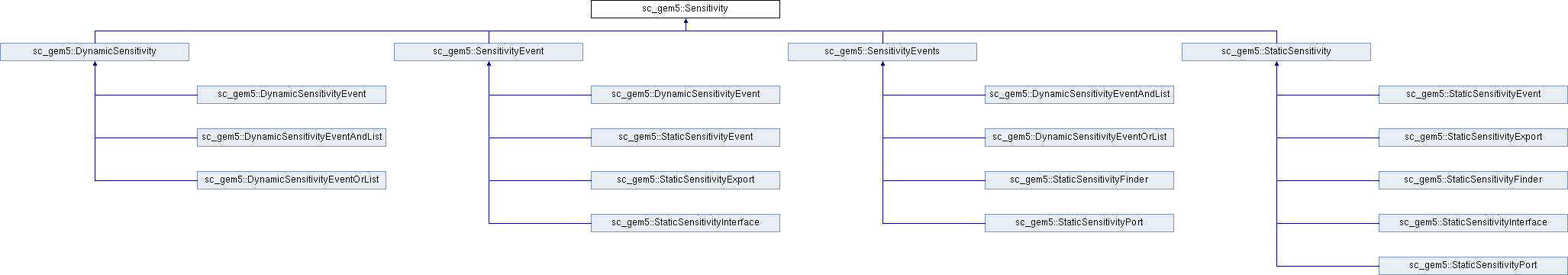

Inheritance diagram for sc_gem5::Sensitivity:

Public Types
enum	Category { Static, Dynamic }

Public Member Functions
virtual void	clear ()=0
void	satisfy ()
virtual bool	notifyWork (Event *e)
bool	notify (Event *e)
virtual Category	category ()=0
bool	ofMethod ()

Protected Member Functions
	Sensitivity (Process *p)
virtual	~Sensitivity ()
virtual void	addToEvent (const ::sc_core::sc_event *e)=0
virtual void	delFromEvent (const ::sc_core::sc_event *e)=0

Protected Attributes
Process *	process

Detailed Description

Definition at line 62 of file sensitivity.hh.

Member Enumeration Documentation

Category

enum sc_gem5::Sensitivity::Category

Enumerator
Static
Dynamic

Definition at line 80 of file sensitivity.hh.

Constructor & Destructor Documentation

Sensitivity()

sc_gem5::Sensitivity::Sensitivity ( Process *  p )

inlineprotected

Definition at line 67 of file sensitivity.hh.

~Sensitivity()

virtual sc_gem5::Sensitivity::~Sensitivity ( )

inlineprotectedvirtual

Definition at line 68 of file sensitivity.hh.

Member Function Documentation

addToEvent()

virtual void sc_gem5::Sensitivity::addToEvent ( const ::sc_core::sc_event *  e )

protectedpure virtual

Implemented in sc_gem5::StaticSensitivity, and sc_gem5::DynamicSensitivity.

Referenced by sc_gem5::SensitivityEvents::addEvent().

category()

virtual Category sc_gem5::Sensitivity::category ( )

pure virtual

Implemented in sc_gem5::StaticSensitivity, and sc_gem5::DynamicSensitivity.

clear()

virtual void sc_gem5::Sensitivity::clear ( )

pure virtual

Implemented in sc_gem5::SensitivityEvents, and sc_gem5::SensitivityEvent.

Referenced by sc_gem5::Process::setDynamic().

delFromEvent()

virtual void sc_gem5::Sensitivity::delFromEvent ( const ::sc_core::sc_event *  e )

protectedpure virtual

Implemented in sc_gem5::StaticSensitivity, and sc_gem5::DynamicSensitivity.

Referenced by sc_gem5::SensitivityEvent::clear(), and sc_gem5::SensitivityEvents::clear().

notify()

bool sc_gem5::Sensitivity::notify

(

Event *

e

)

Definition at line 63 of file sensitivity.cc.

References sc_gem5::Scheduler::current(), sc_gem5::Process::disabled(), gem5::ArmISA::e, sc_core::sc_object::name(), notifyWork(), process, sc_core::SC_ID_IMMEDIATE_SELF_NOTIFICATION_, SC_REPORT_WARNING, and sc_gem5::scheduler.

notifyWork()

bool sc_gem5::Sensitivity::notifyWork ( Event *  e )

virtual

Reimplemented in sc_gem5::DynamicSensitivityEventAndList, and sc_gem5::DynamicSensitivityEventOrList.

Definition at line 56 of file sensitivity.cc.

References satisfy().

Referenced by notify().

ofMethod()

bool sc_gem5::Sensitivity::ofMethod

(

)

Definition at line 82 of file sensitivity.cc.

References process, sc_gem5::Process::procKind(), and sc_core::SC_METHOD_PROC_.

satisfy()

void sc_gem5::Sensitivity::satisfy

(

)

Definition at line 50 of file sensitivity.cc.

References process, and sc_gem5::Process::satisfySensitivity().

Referenced by notifyWork(), sc_gem5::DynamicSensitivityEventOrList::notifyWork(), and sc_gem5::DynamicSensitivityEventAndList::notifyWork().

Member Data Documentation

process

Process* sc_gem5::Sensitivity::process

protected

Definition at line 65 of file sensitivity.hh.

Referenced by notify(), ofMethod(), and satisfy().

---

The documentation for this class was generated from the following files:

• systemc/core/sensitivity.hh
• systemc/core/sensitivity.cc
