#include <hdlcd.hh>

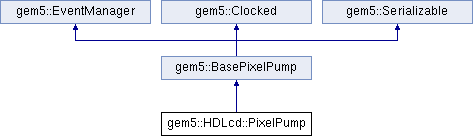

Inheritance diagram for gem5::HDLcd::PixelPump:

Public Member Functions
	PixelPump (HDLcd &p, ClockDomain &pxl_clk, unsigned pixel_chunk)

void	dumpSettings ()

Public Member Functions inherited from gem5::BasePixelPump
	BasePixelPump (EventManager &em, ClockDomain &pxl_clk, unsigned pixel_chunk)

virtual	~BasePixelPump ()

void	serialize (CheckpointOut &cp) const override
	Serialize an object. More...

void	unserialize (CheckpointIn &cp) override
	Unserialize an object. More...

void	updateTimings (const DisplayTimings &timings)
	Update frame size using display timing. More...

void	renderFrame ()
	Render an entire frame in non-caching mode. More...

void	start ()
	Starting pushing pixels in timing mode. More...

void	stop ()
	Immediately stop pushing pixels. More...

const DisplayTimings &	timings () const
	Get a constant reference of the current display timings. More...

bool	active () const
	Is the pixel pump active and refreshing the display? More...

bool	underrun () const
	Did a buffer underrun occur within this refresh interval? More...

bool	visibleLine () const
	Is the current line within the visible range? More...

unsigned	posX () const
	Current pixel position within the visible area. More...

unsigned	posY () const
	Current pixel position within the visible area. More...

Public Member Functions inherited from gem5::EventManager
EventQueue *	eventQueue () const

void	schedule (Event &event, Tick when)

void	deschedule (Event &event)

void	reschedule (Event &event, Tick when, bool always=false)

void	schedule (Event *event, Tick when)

void	deschedule (Event *event)

void	reschedule (Event *event, Tick when, bool always=false)

void	wakeupEventQueue (Tick when=(Tick) -1)
	This function is not needed by the usual gem5 event loop but may be necessary in derived EventQueues which host gem5 on other schedulers. More...

void	setCurTick (Tick newVal)

	EventManager (EventManager &em)
	Event manger manages events in the event queue. More...

	EventManager (EventManager *em)

	EventManager (EventQueue *eq)

Public Member Functions inherited from gem5::Clocked
void	updateClockPeriod ()
	Update the tick to the current tick. More...

Tick	clockEdge (Cycles cycles=Cycles(0)) const
	Determine the tick when a cycle begins, by default the current one, but the argument also enables the caller to determine a future cycle. More...

Cycles	curCycle () const
	Determine the current cycle, corresponding to a tick aligned to a clock edge. More...

Tick	nextCycle () const
	Based on the clock of the object, determine the start tick of the first cycle that is at least one cycle in the future. More...

uint64_t	frequency () const

Tick	clockPeriod () const

double	voltage () const

Cycles	ticksToCycles (Tick t) const

Tick	cyclesToTicks (Cycles c) const

Public Member Functions inherited from gem5::Serializable
	Serializable ()

virtual	~Serializable ()

void	serializeSection (CheckpointOut &cp, const char *name) const
	Serialize an object into a new section. More...

void	serializeSection (CheckpointOut &cp, const std::string &name) const

void	unserializeSection (CheckpointIn &cp, const char *name)
	Unserialize an a child object. More...

void	unserializeSection (CheckpointIn &cp, const std::string &name)

Protected Member Functions
bool	nextPixel (Pixel &p) override
	Get the next pixel from the scan line buffer. More...

size_t	nextLine (std::vector< Pixel >::iterator pixel_it, size_t line_length) override
	Get the next line of pixels directly from memory. More...

void	onVSyncBegin () override
	First pixel clock of the first VSync line. More...

void	onVSyncEnd () override
	Callback on the first pixel of the line after the end VSync region (typically the first pixel of the vertical back porch). More...

void	onUnderrun (unsigned x, unsigned y) override
	Buffer underrun occurred on a frame. More...

void	onFrameDone () override
	Finished displaying the visible region of a frame. More...

Protected Member Functions inherited from gem5::BasePixelPump
virtual void	onHSyncBegin ()
	Start of the HSync region. More...

virtual void	onHSyncEnd ()
	Start of the first pixel after the HSync region. More...

Protected Member Functions inherited from gem5::Clocked
	Clocked (ClockDomain &clk_domain)
	Create a clocked object and set the clock domain based on the parameters. More...

	Clocked (Clocked &)=delete

Clocked &	operator= (Clocked &)=delete

virtual	~Clocked ()
	Virtual destructor due to inheritance. More...

void	resetClock () const
	Reset the object's clock using the current global tick value. More...

virtual void	clockPeriodUpdated ()
	A hook subclasses can implement so they can do any extra work that's needed when the clock rate is changed. More...

Protected Attributes
HDLcd &	parent

Protected Attributes inherited from gem5::EventManager
EventQueue *	eventq
	A pointer to this object's event queue. More...

Additional Inherited Members
Static Public Member Functions inherited from gem5::Serializable
static const std::string &	currentSection ()
	Gets the fully-qualified name of the active section. More...

static void	generateCheckpointOut (const std::string &cpt_dir, std::ofstream &outstream)
	Generate a checkpoint file so that the serialization can be routed to it. More...

Public Attributes inherited from gem5::BasePixelPump
FrameBuffer	fb
	Output frame buffer. More...

Detailed Description

Definition at line 333 of file hdlcd.hh.

Constructor & Destructor Documentation

◆ PixelPump()

gem5::HDLcd::PixelPump::PixelPump	(	HDLcd &	p,
		ClockDomain &	pxl_clk,
		unsigned	pixel_chunk
	)

inline

Definition at line 336 of file hdlcd.hh.

Member Function Documentation

◆ dumpSettings()

void gem5::HDLcd::PixelPump::dumpSettings ( )

Definition at line 678 of file hdlcd.cc.

References inform, and gem5::VegaISA::t.

Referenced by gem5::HDLcd::pxlFrameDone().

◆ nextLine()

size_t gem5::HDLcd::PixelPump::nextLine	(	std::vector< Pixel >::iterator	ps,
		size_t	line_length
	)

inlineoverrideprotectedvirtual

Get the next line of pixels directly from memory.

This is for use from the renderFrame which is called in non-caching mode.

The default implementation falls back to calling nextPixel over and over, but a more efficient implementation could retrieve the entire line of pixels all at once using fewer access to memory which bypass any intermediate structures like an incoming FIFO.

Parameters

ps	A vector iterator to store retrieved pixels into.
line_length	The number of pixels being requested.

Returns: The number of pixels actually retrieved.

Reimplemented from gem5::BasePixelPump.

Definition at line 345 of file hdlcd.hh.

References gem5::HDLcd::lineNext(), and parent.

◆ nextPixel()

bool gem5::HDLcd::PixelPump::nextPixel ( Pixel & p )

inlineoverrideprotectedvirtual

Get the next pixel from the scan line buffer.

Parameters

p	Output pixel value, undefined on underrun

Returns: true on success, false on buffer underrun

Implements gem5::BasePixelPump.

Definition at line 343 of file hdlcd.hh.

References gem5::VegaISA::p, parent, and gem5::HDLcd::pxlNext().

◆ onFrameDone()

void gem5::HDLcd::PixelPump::onFrameDone ( )

inlineoverrideprotectedvirtual

Finished displaying the visible region of a frame.

Reimplemented from gem5::BasePixelPump.

Definition at line 360 of file hdlcd.hh.

References parent, and gem5::HDLcd::pxlFrameDone().

◆ onUnderrun()

void gem5::HDLcd::PixelPump::onUnderrun	(	unsigned	x,
		unsigned	y
	)

inlineoverrideprotectedvirtual

Buffer underrun occurred on a frame.

This method is called once if there is buffer underrun while refreshing the display. The underrun state is reset on the next refresh.

Parameters

x	Coordinate within the visible region.
y	Coordinate within the visible region.

Reimplemented from gem5::BasePixelPump.

Definition at line 355 of file hdlcd.hh.

References parent, and gem5::HDLcd::pxlUnderrun().

◆ onVSyncBegin()

void gem5::HDLcd::PixelPump::onVSyncBegin ( )

inlineoverrideprotectedvirtual

First pixel clock of the first VSync line.

Reimplemented from gem5::BasePixelPump.

Definition at line 351 of file hdlcd.hh.

References parent, and gem5::HDLcd::pxlVSyncBegin().

◆ onVSyncEnd()

void gem5::HDLcd::PixelPump::onVSyncEnd ( )

inlineoverrideprotectedvirtual

Callback on the first pixel of the line after the end VSync region (typically the first pixel of the vertical back porch).

Reimplemented from gem5::BasePixelPump.

Definition at line 352 of file hdlcd.hh.

References parent, and gem5::HDLcd::pxlVSyncEnd().

Member Data Documentation

◆ parent

HDLcd& gem5::HDLcd::PixelPump::parent

protected

Definition at line 363 of file hdlcd.hh.

Referenced by nextLine(), nextPixel(), onFrameDone(), onUnderrun(), onVSyncBegin(), and onVSyncEnd().

The documentation for this class was generated from the following files:

dev/arm/hdlcd.hh
dev/arm/hdlcd.cc
