A functional unit that can execute any of opClasses operations with a single op(eration)Lat(ency) and issueLat(ency) associated with the unit rather than each operation (as in src/FuncUnit). More...
#include <func_unit.hh>

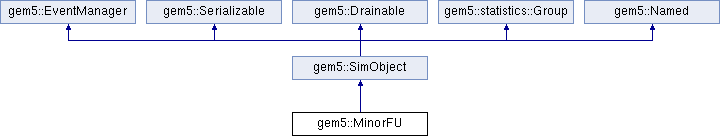

Inheritance diagram for gem5::MinorFU:
Public Member Functions | |
| MinorFU (const MinorFUParams ¶ms) | |
 Public Member Functions inherited from gem5::SimObject | |
| const Params & | params () const |
| SimObject (const Params &p) | |
| virtual | ~SimObject () |
| virtual void | init () |
| init() is called after all C++ SimObjects have been created and all ports are connected. More... | |
| virtual void | loadState (CheckpointIn &cp) |
| loadState() is called on each SimObject when restoring from a checkpoint. More... | |
| virtual void | initState () |
| initState() is called on each SimObject when not restoring from a checkpoint. More... | |
| virtual void | regProbePoints () |
| Register probe points for this object. More... | |
| virtual void | regProbeListeners () |
| Register probe listeners for this object. More... | |
| ProbeManager * | getProbeManager () |
| Get the probe manager for this object. More... | |
| virtual Port & | getPort (const std::string &if_name, PortID idx=InvalidPortID) |
| Get a port with a given name and index. More... | |
| virtual void | startup () |
| startup() is the final initialization call before simulation. More... | |
| DrainState | drain () override |
| Provide a default implementation of the drain interface for objects that don't need draining. More... | |
| virtual void | memWriteback () |
| Write back dirty buffers to memory using functional writes. More... | |
| virtual void | memInvalidate () |
| Invalidate the contents of memory buffers. More... | |
| void | serialize (CheckpointOut &cp) const override |
| Serialize an object. More... | |
| void | unserialize (CheckpointIn &cp) override |
| Unserialize an object. More... | |
| Public Member Functions inherited from gem5::EventManager | |
| EventQueue * | eventQueue () const |
| void | schedule (Event &event, Tick when) |
| void | deschedule (Event &event) |
| void | reschedule (Event &event, Tick when, bool always=false) |
| void | schedule (Event *event, Tick when) |
| void | deschedule (Event *event) |
| void | reschedule (Event *event, Tick when, bool always=false) |
| void | wakeupEventQueue (Tick when=(Tick) -1) |
| This function is not needed by the usual gem5 event loop but may be necessary in derived EventQueues which host gem5 on other schedulers. More... | |
| void | setCurTick (Tick newVal) |
| EventManager (EventManager &em) | |
| Event manger manages events in the event queue. More... | |
| EventManager (EventManager *em) | |
| EventManager (EventQueue *eq) | |
| Public Member Functions inherited from gem5::Serializable | |
| Serializable () | |
| virtual | ~Serializable () |
| void | serializeSection (CheckpointOut &cp, const char *name) const |
| Serialize an object into a new section. More... | |
| void | serializeSection (CheckpointOut &cp, const std::string &name) const |
| void | unserializeSection (CheckpointIn &cp, const char *name) |
| Unserialize an a child object. More... | |
| void | unserializeSection (CheckpointIn &cp, const std::string &name) |
| Public Member Functions inherited from gem5::Drainable | |
| DrainState | drainState () const |
| Return the current drain state of an object. More... | |
| virtual void | notifyFork () |
| Notify a child process of a fork. More... | |
| Public Member Functions inherited from gem5::statistics::Group | |
| Group (Group *parent, const char *name=nullptr) | |
| Construct a new statistics group. More... | |
| virtual | ~Group () |
| virtual void | regStats () |
| Callback to set stat parameters. More... | |
| virtual void | resetStats () |
| Callback to reset stats. More... | |
| virtual void | preDumpStats () |
| Callback before stats are dumped. More... | |
| void | addStat (statistics::Info *info) |
| Register a stat with this group. More... | |
| const std::map< std::string, Group * > & | getStatGroups () const |
| Get all child groups associated with this object. More... | |
| const std::vector< Info * > & | getStats () const |
| Get all stats associated with this object. More... | |
| void | addStatGroup (const char *name, Group *block) |
| Add a stat block as a child of this block. More... | |
| const Info * | resolveStat (std::string name) const |
| Resolve a stat by its name within this group. More... | |
| void | mergeStatGroup (Group *block) |
| Merge the contents (stats & children) of a block to this block. More... | |
| Group ()=delete | |
| Group (const Group &)=delete | |
| Group & | operator= (const Group &)=delete |
| Public Member Functions inherited from gem5::Named | |
| Named (const std::string &name_) | |
| virtual | ~Named ()=default |
| virtual std::string | name () const |
Public Attributes | |
| MinorOpClassSet * | opClasses |
| Cycles | opLat |
| Delay from issuing the operation, to it reaching the end of the associated pipeline. More... | |
| Cycles | issueLat |
| Delay after issuing an operation before the next operation can be issued. More... | |
| std::vector< unsigned int > | cantForwardFromFUIndices |
| FUs which this pipeline can't receive a forwarded (i.e. More... | |
| std::vector< MinorFUTiming * > | timings |
| Extra timing info to give timings to individual ops. More... | |
Additional Inherited Members | |
| Public Types inherited from gem5::SimObject | |
| typedef SimObjectParams | Params |
| Static Public Member Functions inherited from gem5::SimObject | |
| static void | serializeAll (const std::string &cpt_dir) |
| Create a checkpoint by serializing all SimObjects in the system. More... | |
| static SimObject * | find (const char *name) |
| Find the SimObject with the given name and return a pointer to it. More... | |
| static void | setSimObjectResolver (SimObjectResolver *resolver) |
| There is a single object name resolver, and it is only set when simulation is restoring from checkpoints. More... | |
| static SimObjectResolver * | getSimObjectResolver () |
| There is a single object name resolver, and it is only set when simulation is restoring from checkpoints. More... | |
| Static Public Member Functions inherited from gem5::Serializable | |
| static const std::string & | currentSection () |
| Gets the fully-qualified name of the active section. More... | |
| static void | generateCheckpointOut (const std::string &cpt_dir, std::ofstream &outstream) |
| Generate a checkpoint file so that the serialization can be routed to it. More... | |
| Protected Member Functions inherited from gem5::Drainable | |
| Drainable () | |
| virtual | ~Drainable () |
| virtual void | drainResume () |
| Resume execution after a successful drain. More... | |
| void | signalDrainDone () const |
| Signal that an object is drained. More... | |
| Protected Attributes inherited from gem5::SimObject | |
| const SimObjectParams & | _params |
| Cached copy of the object parameters. More... | |
| Protected Attributes inherited from gem5::EventManager | |
| EventQueue * | eventq |
| A pointer to this object's event queue. More... | |
Detailed Description
A functional unit that can execute any of opClasses operations with a single op(eration)Lat(ency) and issueLat(ency) associated with the unit rather than each operation (as in src/FuncUnit).
This is very similar to cpu/func_unit but replicated here to allow the Minor functional units to change without having to disturb the common definition.
Definition at line 157 of file func_unit.hh.
Constructor & Destructor Documentation
◆ MinorFU()
|
inline |
Definition at line 178 of file func_unit.hh.
Member Data Documentation
◆ cantForwardFromFUIndices
| std::vector<unsigned int> gem5::MinorFU::cantForwardFromFUIndices |
FUs which this pipeline can't receive a forwarded (i.e.
relative latency != 0) result from
Definition at line 172 of file func_unit.hh.
Referenced by gem5::minor::FUPipeline::FUPipeline().
◆ issueLat
| Cycles gem5::MinorFU::issueLat |
Delay after issuing an operation before the next operation can be issued.
Definition at line 168 of file func_unit.hh.
Referenced by gem5::minor::FUPipeline::advance().
◆ opClasses
| MinorOpClassSet* gem5::MinorFU::opClasses |
Definition at line 160 of file func_unit.hh.
Referenced by gem5::minor::FUPipeline::FUPipeline().
◆ opLat
| Cycles gem5::MinorFU::opLat |
Delay from issuing the operation, to it reaching the end of the associated pipeline.
Definition at line 164 of file func_unit.hh.
Referenced by gem5::minor::Execute::Execute(), and gem5::minor::FUPipeline::FUPipeline().
◆ timings
| std::vector<MinorFUTiming *> gem5::MinorFU::timings |
Extra timing info to give timings to individual ops.
Definition at line 175 of file func_unit.hh.
Referenced by gem5::minor::FUPipeline::findTiming(), and gem5::minor::FUPipeline::FUPipeline().
The documentation for this class was generated from the following file:
- cpu/minor/func_unit.hh
