A write queue for all eviction packets, i.e. More...

#include <write_queue.hh>

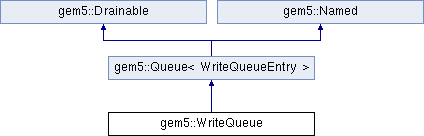

Inheritance diagram for gem5::WriteQueue:

Public Member Functions
	WriteQueue (const std::string &_label, int num_entries, int reserve, const std::string &name)
	Create a write queue with a given number of entries. More...

WriteQueueEntry *	allocate (Addr blk_addr, unsigned blk_size, PacketPtr pkt, Tick when_ready, Counter order)
	Allocates a new WriteQueueEntry for the request and size. More...

void	markInService (WriteQueueEntry *entry)
	Mark the given entry as in service. More...

Public Member Functions inherited from gem5::Queue< WriteQueueEntry >
	Queue (const std::string &_label, int num_entries, int reserve, const std::string &name)
	Create a queue with a given number of entries. More...

bool	isEmpty () const

bool	isFull () const

int	numInService () const

WriteQueueEntry *	findMatch (Addr blk_addr, bool is_secure, bool ignore_uncacheable=true) const
	Find the first entry that matches the provided address. More...

bool	trySatisfyFunctional (PacketPtr pkt)

WriteQueueEntry *	findPending (const QueueEntry *entry) const
	Find any pending requests that overlap the given request of a different queue. More...

WriteQueueEntry *	getNext () const
	Returns the WriteQueueEntry at the head of the readyList. More...

Tick	nextReadyTime () const

virtual void	deallocate (WriteQueueEntry *entry)
	Removes the given entry from the queue. More...

DrainState	drain () override
	Draining is the process of clearing out the states of SimObjects.These are the SimObjects that are partially executed or are partially in flight. More...

Public Member Functions inherited from gem5::Drainable
DrainState	drainState () const
	Return the current drain state of an object. More...

virtual void	notifyFork ()
	Notify a child process of a fork. More...

Public Member Functions inherited from gem5::Named
	Named (const std::string &name_)

virtual	~Named ()=default

virtual std::string	name () const

Additional Inherited Members
Protected Member Functions inherited from gem5::Queue< WriteQueueEntry >
WriteQueueEntry ::Iterator	addToReadyList (WriteQueueEntry *entry)

Protected Member Functions inherited from gem5::Drainable
	Drainable ()

virtual	~Drainable ()

virtual void	drainResume ()
	Resume execution after a successful drain. More...

void	signalDrainDone () const
	Signal that an object is drained. More...

Protected Attributes inherited from gem5::Queue< WriteQueueEntry >
const std::string	label
	Local label (for functional print requests) More...

const int	numEntries
	The total number of entries in this queue. More...

const int	numReserve
	The number of entries to hold as a temporary overflow space. More...

std::vector< WriteQueueEntry >	entries
	Actual storage. More...

WriteQueueEntry ::List	allocatedList
	Holds pointers to all allocated entries. More...

WriteQueueEntry ::List	readyList
	Holds pointers to entries that haven't been sent downstream. More...

WriteQueueEntry ::List	freeList
	Holds non allocated entries. More...

int	_numInService
	The number of entries that are in service. More...

int	allocated
	The number of currently allocated entries. More...

Detailed Description

A write queue for all eviction packets, i.e.

writebacks and clean evictions, as well as uncacheable writes.

Definition at line 60 of file write_queue.hh.

Constructor & Destructor Documentation

◆ WriteQueue()

gem5::WriteQueue::WriteQueue	(	const std::string &	_label,
		int	num_entries,
		int	reserve,
		const std::string &	name
	)

Create a write queue with a given number of entries.

Parameters

num_entries	The number of entries in this queue.
reserve	The maximum number of entries needed to satisfy any access.

Definition at line 54 of file write_queue.cc.

Member Function Documentation

◆ allocate()

WriteQueueEntry * gem5::WriteQueue::allocate	(	Addr	blk_addr,
		unsigned	blk_size,
		PacketPtr	pkt,
		Tick	when_ready,
		Counter	order
	)

Allocates a new WriteQueueEntry for the request and size.

This places the request as the first target in the WriteQueueEntry.

Parameters

blk_addr	The address of the block.
blk_size	The number of bytes to request.
pkt	The original write.
when_ready	When is the WriteQueueEntry be ready to act upon.
order	The logical order of this WriteQueueEntry

Returns: The a pointer to the WriteQueueEntry allocated.

Precondition: There are free entries.

Definition at line 61 of file write_queue.cc.

References gem5::Queue< WriteQueueEntry >::addToReadyList(), gem5::WriteQueueEntry::allocate(), gem5::Queue< WriteQueueEntry >::allocated, gem5::Queue< WriteQueueEntry >::allocatedList, gem5::WriteQueueEntry::allocIter, gem5::Queue< WriteQueueEntry >::freeList, gem5::WriteQueueEntry::getNumTargets(), and gem5::WriteQueueEntry::readyIter.

Referenced by gem5::BaseCache::allocateWriteBuffer().

◆ markInService()

void gem5::WriteQueue::markInService ( WriteQueueEntry * entry )

Mark the given entry as in service.

This removes the entry from the readyList or deallocates the entry if it does not expect a response (writeback/eviction rather than an uncacheable write).

Parameters

entry The entry to mark in service.

Definition at line 78 of file write_queue.cc.

References gem5::Queue< WriteQueueEntry >::deallocate(), and gem5::WriteQueueEntry::popTarget().

Referenced by gem5::BaseCache::markInService().

The documentation for this class was generated from the following files:

mem/cache/write_queue.hh
mem/cache/write_queue.cc
