#include <sensitivity.hh>

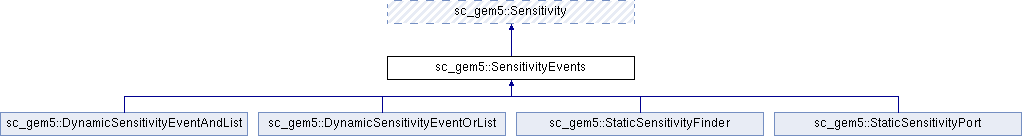

Inheritance diagram for sc_gem5::SensitivityEvents:

Public Member Functions
void	clear () override

void	addEvent (const ::sc_core::sc_event *event)

Public Member Functions inherited from sc_gem5::Sensitivity
void	satisfy ()

virtual bool	notifyWork (Event *e)

bool	notify (Event *e)

virtual Category	category ()=0

bool	ofMethod ()

Protected Member Functions
	SensitivityEvents (Process *p)

	SensitivityEvents (Process p, const std::set< const ::sc_core::sc_event > &s)

Protected Member Functions inherited from sc_gem5::Sensitivity
	Sensitivity (Process *p)

virtual	~Sensitivity ()

virtual void	addToEvent (const ::sc_core::sc_event *e)=0

virtual void	delFromEvent (const ::sc_core::sc_event *e)=0

Protected Attributes
std::set< const ::sc_core::sc_event * >	events

Protected Attributes inherited from sc_gem5::Sensitivity
Process *	process

Additional Inherited Members
Public Types inherited from sc_gem5::Sensitivity
enum	Category { Static, Dynamic }

Detailed Description

Definition at line 143 of file sensitivity.hh.

Constructor & Destructor Documentation

◆ SensitivityEvents() [1/2]

sc_gem5::SensitivityEvents::SensitivityEvents ( Process * p )

inlineprotected

Definition at line 148 of file sensitivity.hh.

◆ SensitivityEvents() [2/2]

sc_gem5::SensitivityEvents::SensitivityEvents	(	Process *	p,
		const std::set< const ::sc_core::sc_event * > &	s
	)

inlineprotected

Definition at line 149 of file sensitivity.hh.

Member Function Documentation

◆ addEvent()

void sc_gem5::SensitivityEvents::addEvent ( const ::sc_core::sc_event * event )

inline

Definition at line 163 of file sensitivity.hh.

References sc_gem5::Sensitivity::addToEvent(), gem5::MipsISA::event, and events.

Referenced by sc_gem5::Port::finalizeFinder(), and sc_gem5::Port::finalizePort().

◆ clear()

void sc_gem5::SensitivityEvents::clear ( )

inlineoverridevirtual

Implements sc_gem5::Sensitivity.

Definition at line 156 of file sensitivity.hh.

References sc_gem5::Sensitivity::delFromEvent(), gem5::MipsISA::event, and events.

Member Data Documentation

◆ events

std::set<const ::sc_core::sc_event *> sc_gem5::SensitivityEvents::events

protected

Definition at line 146 of file sensitivity.hh.

Referenced by addEvent(), clear(), sc_gem5::DynamicSensitivityEventOrList::notifyWork(), and sc_gem5::DynamicSensitivityEventAndList::notifyWork().

The documentation for this class was generated from the following file:

systemc/core/sensitivity.hh
