Implementation of a scalar stat. More...

#include <statistics.hh>

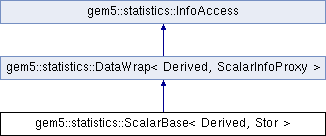

Inheritance diagram for gem5::statistics::ScalarBase< Derived, Stor >:

Public Types
typedef Stor	Storage

typedef Stor::Params	Params

Public Types inherited from gem5::statistics::DataWrap< Derived, ScalarInfoProxy >
typedef ScalarInfoProxy< Derived >	Info

Public Member Functions
	ScalarBase (Group parent=nullptr, const char name=nullptr, const units::Base unit=units::Unspecified::get(), const char desc=nullptr)

void	operator++ ()
	Increment the stat by 1. More...

void	operator-- ()
	Decrement the stat by 1. More...

void	operator++ (int)
	Increment the stat by 1. More...

void	operator-- (int)
	Decrement the stat by 1. More...

template<typename U >
void	operator= (const U &v)
	Set the data value to the given value. More...

template<typename U >
void	operator+= (const U &v)
	Increment the stat by the given value. More...

template<typename U >
void	operator-= (const U &v)
	Decrement the stat by the given value. More...

size_type	size () const
	Return the number of elements, always 1 for a scalar. More...

Counter	value () const
	Return the current value of this stat as its base type. More...

Result	result () const

Result	total () const

bool	zero () const

void	reset ()

void	prepare ()

Public Member Functions inherited from gem5::statistics::DataWrap< Derived, ScalarInfoProxy >
const Info *	info () const

	DataWrap ()=delete

	DataWrap (const DataWrap &)=delete

	DataWrap (Group parent, const char name, const units::Base unit, const char desc)

DataWrap &	operator= (const DataWrap &)=delete

Derived &	name (const std::string &name)
	Set the name and marks this stat to print at the end of simulation. More...

const std::string &	name () const

Derived &	setSeparator (const std::string &_sep)
	Set the character(s) used between the name and vector number on vectors, dist, etc. More...

const std::string &	setSeparator () const

Derived &	unit (const units::Base *_unit)
	Set the unit of the stat. More...

Derived &	desc (const std::string &_desc)
	Set the description and marks this stat to print at the end of simulation. More...

Derived &	precision (int _precision)
	Set the precision and marks this stat to print at the end of simulation. More...

Derived &	flags (Flags _flags)
	Set the flags and marks this stat to print at the end of simulation. More...

Derived &	prereq (const Stat &prereq)
	Set the prerequisite stat and marks this stat to print at the end of simulation. More...

Public Member Functions inherited from gem5::statistics::InfoAccess
	InfoAccess ()

void	reset ()
	Reset the stat to the default state. More...

bool	zero () const

bool	check () const
	Check that this stat has been set up properly and is ready for use. More...

Protected Member Functions
	GEM5_ALIGNED (8) char storage[sizeof(Storage)]
	The storage of this stat. More...

Storage *	data ()
	Retrieve the storage. More...

const Storage *	data () const
	Retrieve a const pointer to the storage. More...

void	doInit ()

Protected Member Functions inherited from gem5::statistics::DataWrap< Derived, ScalarInfoProxy >
Derived &	self ()

Info *	info ()

Protected Member Functions inherited from gem5::statistics::InfoAccess
void	setInfo (Group parent, Info info)
	Set up an info class for this statistic. More...

void	setParams (const StorageParams *params)
	Save Storage class parameters if any. More...

void	setInit ()
	Save Storage class parameters if any. More...

Info *	info ()
	Grab the information class for this statistic. More...

const Info *	info () const
	Grab the information class for this statistic. More...

bool	newStyleStats () const
	Check if the info is new style stats. More...

Detailed Description

template<class Derived, class Stor>
class gem5::statistics::ScalarBase< Derived, Stor >

Implementation of a scalar stat.

The type of stat is determined by the Storage template.

Definition at line 520 of file statistics.hh.

Member Typedef Documentation

◆ Params

template<class Derived , class Stor >

typedef Stor::Params gem5::statistics::ScalarBase< Derived, Stor >::Params

Definition at line 524 of file statistics.hh.

◆ Storage

template<class Derived , class Stor >

typedef Stor gem5::statistics::ScalarBase< Derived, Stor >::Storage

Definition at line 523 of file statistics.hh.

Constructor & Destructor Documentation

◆ ScalarBase()

template<class Derived , class Stor >

gem5::statistics::ScalarBase< Derived, Stor >::ScalarBase	(	Group *	parent = `nullptr`,
		const char *	name = `nullptr`,
		const units::Base *	unit = `units::Unspecified::get()`,
		const char *	desc = `nullptr`
	)

inline

Definition at line 562 of file statistics.hh.

References gem5::statistics::ScalarBase< Derived, Stor >::doInit().

Member Function Documentation

◆ data() [1/2]

template<class Derived , class Stor >

Storage* gem5::statistics::ScalarBase< Derived, Stor >::data ( )

inlineprotected

Retrieve the storage.

Parameters

index The vector index to access.

Returns: The storage object at the given index.

Definition at line 537 of file statistics.hh.

◆ data() [2/2]

template<class Derived , class Stor >

const Storage* gem5::statistics::ScalarBase< Derived, Stor >::data ( ) const

inlineprotected

Retrieve a const pointer to the storage.

for the given index.

Parameters

index The vector index to access.

Returns: A const pointer to the storage object at the given index.

Definition at line 549 of file statistics.hh.

◆ doInit()

template<class Derived , class Stor >

void gem5::statistics::ScalarBase< Derived, Stor >::doInit ( )

inlineprotected

Definition at line 555 of file statistics.hh.

References gem5::statistics::Info::getStorageParams(), gem5::statistics::DataWrap< Derived, ScalarInfoProxy >::info(), and gem5::statistics::InfoAccess::setInit().

Referenced by gem5::statistics::ScalarBase< Derived, Stor >::ScalarBase().

◆ GEM5_ALIGNED()

template<class Derived , class Stor >

gem5::statistics::ScalarBase< Derived, Stor >::GEM5_ALIGNED ( 8 )

protected

The storage of this stat.

◆ operator++() [1/2]

template<class Derived , class Stor >

void gem5::statistics::ScalarBase< Derived, Stor >::operator++ ( )

inline

Increment the stat by 1.

This calls the associated storage object inc function.

Definition at line 576 of file statistics.hh.

References gem5::statistics::ScalarBase< Derived, Stor >::data().

◆ operator++() [2/2]

template<class Derived , class Stor >

void gem5::statistics::ScalarBase< Derived, Stor >::operator++ ( int )

inline

Increment the stat by 1.

Definition at line 584 of file statistics.hh.

◆ operator+=()

template<class Derived , class Stor >

template<typename U >

void gem5::statistics::ScalarBase< Derived, Stor >::operator+= ( const U & v )

inline

Increment the stat by the given value.

This calls the associated storage object inc function.

Parameters

v	The value to add.

Definition at line 602 of file statistics.hh.

References gem5::statistics::ScalarBase< Derived, Stor >::data(), and gem5::VegaISA::v.

◆ operator--() [1/2]

template<class Derived , class Stor >

void gem5::statistics::ScalarBase< Derived, Stor >::operator-- ( )

inline

Decrement the stat by 1.

This calls the associated storage object dec function.

Definition at line 581 of file statistics.hh.

References gem5::statistics::ScalarBase< Derived, Stor >::data().

◆ operator--() [2/2]

template<class Derived , class Stor >

void gem5::statistics::ScalarBase< Derived, Stor >::operator-- ( int )

inline

Decrement the stat by 1.

Definition at line 586 of file statistics.hh.

◆ operator-=()

template<class Derived , class Stor >

template<typename U >

void gem5::statistics::ScalarBase< Derived, Stor >::operator-= ( const U & v )

inline

Decrement the stat by the given value.

This calls the associated storage object dec function.

Parameters

v	The value to substract.

Definition at line 610 of file statistics.hh.

References gem5::statistics::ScalarBase< Derived, Stor >::data(), and gem5::VegaISA::v.

◆ operator=()

template<class Derived , class Stor >

template<typename U >

void gem5::statistics::ScalarBase< Derived, Stor >::operator= ( const U & v )

inline

Set the data value to the given value.

This calls the associated storage object set function.

Parameters

v	The new value.

Definition at line 594 of file statistics.hh.

References gem5::statistics::ScalarBase< Derived, Stor >::data(), and gem5::VegaISA::v.

◆ prepare()

template<class Derived , class Stor >

void gem5::statistics::ScalarBase< Derived, Stor >::prepare ( )

inline

Definition at line 631 of file statistics.hh.

References gem5::statistics::ScalarBase< Derived, Stor >::data(), and gem5::statistics::DataWrap< Derived, ScalarInfoProxy >::info().

◆ reset()

template<class Derived , class Stor >

void gem5::statistics::ScalarBase< Derived, Stor >::reset ( )

inline

Definition at line 630 of file statistics.hh.

References gem5::statistics::ScalarBase< Derived, Stor >::data(), and gem5::statistics::DataWrap< Derived, ScalarInfoProxy >::info().

◆ result()

template<class Derived , class Stor >

Result gem5::statistics::ScalarBase< Derived, Stor >::result ( ) const

inline

Definition at line 624 of file statistics.hh.

References gem5::statistics::ScalarBase< Derived, Stor >::data().

Referenced by gem5::statistics::ScalarBase< Derived, Stor >::total(), and gem5::statistics::ScalarBase< Derived, Stor >::zero().

◆ size()

template<class Derived , class Stor >

size_type gem5::statistics::ScalarBase< Derived, Stor >::size ( ) const

inline

Return the number of elements, always 1 for a scalar.

Returns: 1.

Definition at line 616 of file statistics.hh.

◆ total()

template<class Derived , class Stor >

Result gem5::statistics::ScalarBase< Derived, Stor >::total ( ) const

inline

Definition at line 626 of file statistics.hh.

References gem5::statistics::ScalarBase< Derived, Stor >::result().

◆ value()

template<class Derived , class Stor >

Counter gem5::statistics::ScalarBase< Derived, Stor >::value ( ) const

inline

Return the current value of this stat as its base type.

Returns: The current value.

Definition at line 622 of file statistics.hh.

References gem5::statistics::ScalarBase< Derived, Stor >::data().

Referenced by gem5::TraceCPU::ElasticDataGen::addDepsOnParent(), gem5::TraceCPU::ElasticDataGen::addToSortedReadyList(), gem5::o3::ElasticTrace::assignRobDep(), gem5::Wavefront::exec(), gem5::BaseTags::insertBlock(), gem5::SectorTags::insertBlock(), gem5::SectorTags::invalidate(), gem5::SectorTags::moveBlock(), gem5::o3::ElasticTrace::recordExecTick(), gem5::TraceCPU::totalOps(), gem5::BaseTrafficGen::update(), gem5::TraceCPU::updateNumOps(), gem5::X86ISA::GpuTLB::updatePageFootprint(), and gem5::o3::ElasticTrace::updateRegDep().

◆ zero()

template<class Derived , class Stor >

bool gem5::statistics::ScalarBase< Derived, Stor >::zero ( ) const

inline

Definition at line 628 of file statistics.hh.

References gem5::statistics::ScalarBase< Derived, Stor >::result().

The documentation for this class was generated from the following file:

base/statistics.hh
