sc_gem5::VcdTraceValTime Class Reference

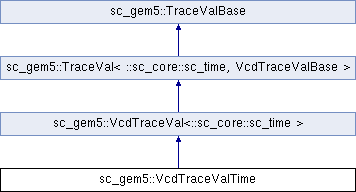

Inheritance diagram for sc_gem5::VcdTraceValTime:

Public Member Functions
std::string	vcdType () override
void	finalize () override
void	output (std::ostream &os) override
Public Member Functions inherited from sc_gem5::VcdTraceVal<::sc_core::sc_time >
	VcdTraceVal (const ::sc_core::sc_time *t, const std::string &vcd_name, int width)
Public Member Functions inherited from sc_gem5::TraceVal< T, Base >
	TraceVal (const T *_t, int _width)
	~TraceVal ()
const T &	value ()
bool	check () override
Public Member Functions inherited from sc_gem5::TraceValBase
	TraceValBase (int _width)
virtual	~TraceValBase ()
int	width ()

Static Private Attributes
static const int	TimeWidth = 64

Additional Inherited Members
Public Types inherited from sc_gem5::VcdTraceVal<::sc_core::sc_time >
typedef ::sc_core::sc_time	TracedType
Protected Attributes inherited from sc_gem5::TraceValBase
int	_width

Detailed Description

Definition at line 558 of file vcd.cc.

Member Function Documentation

finalize()

void sc_gem5::VcdTraceValTime::finalize ( )

inlineoverridevirtual

Reimplemented from sc_gem5::TraceVal< T, Base >.

Definition at line 569 of file vcd.cc.

References sc_gem5::TraceValBase::_width, sc_gem5::TraceVal< T, VcdTraceValBase >::finalize(), and TimeWidth.

output()

void sc_gem5::VcdTraceValTime::output ( std::ostream &  os )

inlineoverride

Definition at line 576 of file vcd.cc.

References gem5::bits(), gem5::ArmISA::i, gem5::X86ISA::os, TimeWidth, gem5::X86ISA::val, and sc_gem5::TraceVal< T, Base >::value().

vcdType()

std::string sc_gem5::VcdTraceValTime::vcdType ( )

inlineoverride

Definition at line 566 of file vcd.cc.

Member Data Documentation

TimeWidth

const int sc_gem5::VcdTraceValTime::TimeWidth = 64

staticprivate

Definition at line 561 of file vcd.cc.

Referenced by finalize(), and output().

---

The documentation for this class was generated from the following file:

• systemc/utils/vcd.cc
