gem5::RegisterBank< BankByteOrder >::RegisterRoFill Class Reference

#include <reg_bank.hh>

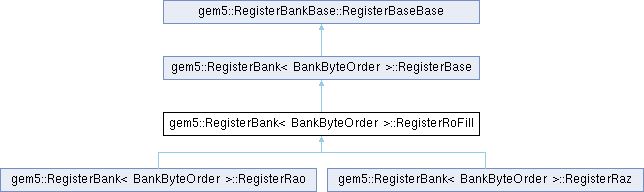

Inheritance diagram for gem5::RegisterBank< BankByteOrder >::RegisterRoFill:

Public Member Functions
void	write (const void *buf) override
void	write (const void *buf, off_t offset, size_t bytes) override
void	read (void *buf) override
void	read (void *buf, off_t offset, size_t bytes) override
void	serialize (std::ostream &os) const override
bool	unserialize (const std::string &s) override
void	reset () override
Public Member Functions inherited from gem5::RegisterBank< BankByteOrder >::RegisterBase
constexpr	RegisterBase (const std::string &new_name, size_t new_size)
virtual	~RegisterBase ()
virtual const std::string &	name () const
size_t	size () const
virtual void	read (void *buf)=0
virtual void	read (void *buf, off_t offset, size_t bytes)=0
virtual void	write (const void *buf)=0
virtual void	write (const void *buf, off_t offset, size_t bytes)=0
virtual void	serialize (std::ostream &os) const =0
virtual bool	unserialize (const std::string &s)=0
virtual void	reset ()=0

Protected Member Functions
constexpr	RegisterRoFill (const std::string &new_name, size_t new_size)
virtual void	fill (void *buf, off_t offset, size_t bytes)=0

Additional Inherited Members
Protected Attributes inherited from gem5::RegisterBank< BankByteOrder >::RegisterBase
const std::string	_name
size_t	_size = 0

Detailed Description

template<ByteOrder BankByteOrder>
class gem5::RegisterBank< BankByteOrder >::RegisterRoFill

Definition at line 386 of file reg_bank.hh.

Constructor & Destructor Documentation

RegisterRoFill()

template<ByteOrder BankByteOrder>

constexpr gem5::RegisterBank< BankByteOrder >::RegisterRoFill::RegisterRoFill ( const std::string &  new_name, size_t  new_size  )

inlineconstexprprotected

Definition at line 389 of file reg_bank.hh.

Member Function Documentation

fill()

template<ByteOrder BankByteOrder>

virtual void gem5::RegisterBank< BankByteOrder >::RegisterRoFill::fill ( void *  buf, off_t  offset, size_t  bytes  )

protectedpure virtual

Implemented in gem5::RegisterBank< BankByteOrder >::RegisterRaz, and gem5::RegisterBank< BankByteOrder >::RegisterRao.

read() [1/2]

template<ByteOrder BankByteOrder>

void gem5::RegisterBank< BankByteOrder >::RegisterRoFill::read ( void *  buf )

inlineoverridevirtual

Implements gem5::RegisterBank< BankByteOrder >::RegisterBase.

Definition at line 402 of file reg_bank.hh.

References gem5::MipsISA::fill, and gem5::RegisterBank< BankByteOrder >::RegisterBase::size().

read() [2/2]

template<ByteOrder BankByteOrder>

void gem5::RegisterBank< BankByteOrder >::RegisterRoFill::read ( void *  buf, off_t  offset, size_t  bytes  )

inlineoverridevirtual

Implements gem5::RegisterBank< BankByteOrder >::RegisterBase.

Definition at line 404 of file reg_bank.hh.

References gem5::MipsISA::fill, and gem5::ArmISA::offset.

reset()

template<ByteOrder BankByteOrder>

void gem5::RegisterBank< BankByteOrder >::RegisterRoFill::reset ( )

inlineoverridevirtual

Implements gem5::RegisterBank< BankByteOrder >::RegisterBase.

Definition at line 413 of file reg_bank.hh.

serialize()

template<ByteOrder BankByteOrder>

void gem5::RegisterBank< BankByteOrder >::RegisterRoFill::serialize ( std::ostream &  os ) const

inlineoverridevirtual

Implements gem5::RegisterBank< BankByteOrder >::RegisterBase.

Definition at line 409 of file reg_bank.hh.

unserialize()

template<ByteOrder BankByteOrder>

bool gem5::RegisterBank< BankByteOrder >::RegisterRoFill::unserialize ( const std::string &  s )

inlineoverridevirtual

Implements gem5::RegisterBank< BankByteOrder >::RegisterBase.

Definition at line 410 of file reg_bank.hh.

write() [1/2]

template<ByteOrder BankByteOrder>

void gem5::RegisterBank< BankByteOrder >::RegisterRoFill::write ( const void *  buf )

inlineoverridevirtual

Implements gem5::RegisterBank< BankByteOrder >::RegisterBase.

Definition at line 398 of file reg_bank.hh.

write() [2/2]

template<ByteOrder BankByteOrder>

void gem5::RegisterBank< BankByteOrder >::RegisterRoFill::write ( const void *  buf, off_t  offset, size_t  bytes  )

inlineoverridevirtual

Implements gem5::RegisterBank< BankByteOrder >::RegisterBase.

Definition at line 399 of file reg_bank.hh.

---

The documentation for this class was generated from the following file:

• dev/reg_bank.hh
