#include <vio_mmio.hh>

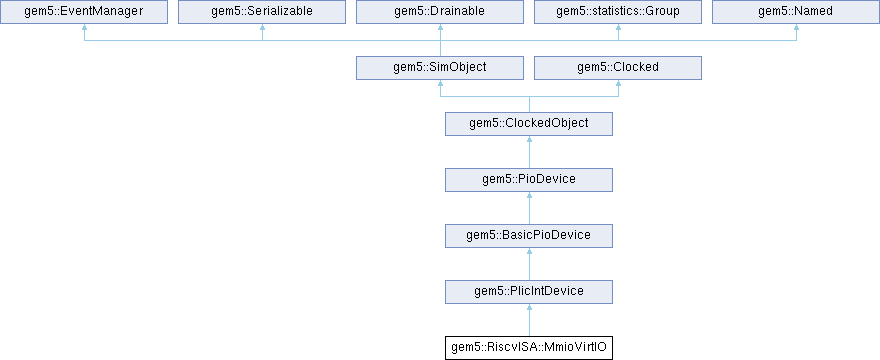

Inheritance diagram for gem5::RiscvISA::MmioVirtIO:

Public Member Functions
	MmioVirtIO (const RiscvMmioVirtIOParams &params)

virtual	~MmioVirtIO ()

Public Member Functions inherited from gem5::PlicIntDevice
const Params &	params () const

	PlicIntDevice (const Params &params)

const int &	id ()

Public Member Functions inherited from gem5::BasicPioDevice
	PARAMS (BasicPioDevice)

	BasicPioDevice (const Params &p, Addr size)

AddrRangeList	getAddrRanges () const override
	Determine the address ranges that this device responds to.

Public Member Functions inherited from gem5::PioDevice
	PioDevice (const Params &p)

virtual	~PioDevice ()

void	init () override
	init() is called after all C++ SimObjects have been created and all ports are connected.

Port &	getPort (const std::string &if_name, PortID idx=InvalidPortID) override
	Get a port with a given name and index.

Public Member Functions inherited from gem5::ClockedObject
	ClockedObject (const ClockedObjectParams &p)

void	serialize (CheckpointOut &cp) const override
	Serialize an object.

void	unserialize (CheckpointIn &cp) override
	Unserialize an object.

Public Member Functions inherited from gem5::SimObject
const Params &	params () const

	SimObject (const Params &p)

virtual	~SimObject ()

virtual void	init ()
	init() is called after all C++ SimObjects have been created and all ports are connected.

virtual void	loadState (CheckpointIn &cp)
	loadState() is called on each SimObject when restoring from a checkpoint.

virtual void	initState ()
	initState() is called on each SimObject when not restoring from a checkpoint.

virtual void	regProbePoints ()
	Register probe points for this object.

virtual void	regProbeListeners ()
	Register probe listeners for this object.

ProbeManager *	getProbeManager ()
	Get the probe manager for this object.

virtual Port &	getPort (const std::string &if_name, PortID idx=InvalidPortID)
	Get a port with a given name and index.

virtual void	startup ()
	startup() is the final initialization call before simulation.

DrainState	drain () override
	Provide a default implementation of the drain interface for objects that don't need draining.

virtual void	memWriteback ()
	Write back dirty buffers to memory using functional writes.

virtual void	memInvalidate ()
	Invalidate the contents of memory buffers.

void	serialize (CheckpointOut &cp) const override
	Serialize an object.

void	unserialize (CheckpointIn &cp) override
	Unserialize an object.

Public Member Functions inherited from gem5::EventManager
EventQueue *	eventQueue () const

void	schedule (Event &event, Tick when)

void	deschedule (Event &event)

void	reschedule (Event &event, Tick when, bool always=false)

void	schedule (Event *event, Tick when)

void	deschedule (Event *event)

void	reschedule (Event *event, Tick when, bool always=false)

void	wakeupEventQueue (Tick when=(Tick) -1)
	This function is not needed by the usual gem5 event loop but may be necessary in derived EventQueues which host gem5 on other schedulers.

void	setCurTick (Tick newVal)

	EventManager (EventManager &em)
	Event manger manages events in the event queue.

	EventManager (EventManager *em)

	EventManager (EventQueue *eq)

Public Member Functions inherited from gem5::Serializable
	Serializable ()

virtual	~Serializable ()

virtual void	serialize (CheckpointOut &cp) const =0
	Serialize an object.

virtual void	unserialize (CheckpointIn &cp)=0
	Unserialize an object.

void	serializeSection (CheckpointOut &cp, const char *name) const
	Serialize an object into a new section.

void	serializeSection (CheckpointOut &cp, const std::string &name) const

void	unserializeSection (CheckpointIn &cp, const char *name)
	Unserialize an a child object.

void	unserializeSection (CheckpointIn &cp, const std::string &name)

Public Member Functions inherited from gem5::Drainable
DrainState	drainState () const
	Return the current drain state of an object.

virtual void	notifyFork ()
	Notify a child process of a fork.

Public Member Functions inherited from gem5::statistics::Group
	Group (Group parent, const char name=nullptr)
	Construct a new statistics group.

virtual	~Group ()

virtual void	regStats ()
	Callback to set stat parameters.

virtual void	resetStats ()
	Callback to reset stats.

virtual void	preDumpStats ()
	Callback before stats are dumped.

void	addStat (statistics::Info *info)
	Register a stat with this group.

const std::map< std::string, Group * > &	getStatGroups () const
	Get all child groups associated with this object.

const std::vector< Info * > &	getStats () const
	Get all stats associated with this object.

void	addStatGroup (const char name, Group block)
	Add a stat block as a child of this block.

const Info *	resolveStat (std::string name) const
	Resolve a stat by its name within this group.

void	mergeStatGroup (Group *block)
	Merge the contents (stats & children) of a block to this block.

	Group (const Group &)=delete

Group &	operator= (const Group &)=delete

Public Member Functions inherited from gem5::Named
	Named (const std::string &name_)

virtual	~Named ()=default

virtual std::string	name () const

Public Member Functions inherited from gem5::Clocked
void	updateClockPeriod ()
	Update the tick to the current tick.

Tick	clockEdge (Cycles cycles=Cycles(0)) const
	Determine the tick when a cycle begins, by default the current one, but the argument also enables the caller to determine a future cycle.

Cycles	curCycle () const
	Determine the current cycle, corresponding to a tick aligned to a clock edge.

Tick	nextCycle () const
	Based on the clock of the object, determine the start tick of the first cycle that is at least one cycle in the future.

uint64_t	frequency () const

Tick	clockPeriod () const

double	voltage () const

Cycles	ticksToCycles (Tick t) const

Tick	cyclesToTicks (Cycles c) const

Protected Types
enum	{ INT_USED_RING = 1 << 0 , INT_CONFIG = 1 << 1 }


enum	: Addr { OFF_MAGIC = 0x00 , OFF_VERSION = 0x04 , OFF_DEVICE_ID = 0x08 , OFF_VENDOR_ID = 0x0C , OFF_HOST_FEATURES = 0x10 , OFF_HOST_FEATURES_SELECT = 0x14 , OFF_GUEST_FEATURES = 0x20 , OFF_GUEST_FEATURES_SELECT = 0x24 , OFF_GUEST_PAGE_SIZE = 0x28 , OFF_QUEUE_SELECT = 0x30 , OFF_QUEUE_NUM_MAX = 0x34 , OFF_QUEUE_NUM = 0x38 , OFF_QUEUE_ALIGN = 0x3C , OFF_QUEUE_PFN = 0x40 , OFF_QUEUE_NOTIFY = 0x50 , OFF_INTERRUPT_STATUS = 0x60 , OFF_INTERRUPT_ACK = 0x64 , OFF_STATUS = 0x70 , OFF_CONFIG = 0x100 }
	Offsets into VirtIO MMIO space. More...

Protected Member Functions
Tick	read (PacketPtr pkt) override
	Pure virtual function that the device must implement.

Tick	write (PacketPtr pkt) override
	Pure virtual function that the device must implement.

uint32_t	read (Addr offset)

void	write (Addr offset, uint32_t value)

void	kick ()

void	setInterrupts (uint32_t value)

virtual AddrRangeList	getAddrRanges () const =0
	Every PIO device is obliged to provide an implementation that returns the address ranges the device responds to.

virtual Tick	read (PacketPtr pkt)=0
	Pure virtual function that the device must implement.

virtual Tick	write (PacketPtr pkt)=0
	Pure virtual function that the device must implement.

Protected Member Functions inherited from gem5::Drainable
	Drainable ()

virtual	~Drainable ()

virtual DrainState	drain ()=0
	Draining is the process of clearing out the states of SimObjects.These are the SimObjects that are partially executed or are partially in flight.

virtual void	drainResume ()
	Resume execution after a successful drain.

void	signalDrainDone () const
	Signal that an object is drained.

Protected Member Functions inherited from gem5::Clocked
	Clocked (ClockDomain &clk_domain)
	Create a clocked object and set the clock domain based on the parameters.

	Clocked (Clocked &)=delete

Clocked &	operator= (Clocked &)=delete

virtual	~Clocked ()
	Virtual destructor due to inheritance.

void	resetClock () const
	Reset the object's clock using the current global tick value.

virtual void	clockPeriodUpdated ()
	A hook subclasses can implement so they can do any extra work that's needed when the clock rate is changed.

Protected Attributes
uint32_t	hostFeaturesSelect

uint32_t	guestFeaturesSelect

uint32_t	pageSize

uint32_t	interruptStatus

VirtIODeviceBase &	vio

Protected Attributes inherited from gem5::PlicIntDevice
System *	system

Platform *	platform

int	_interruptID

Protected Attributes inherited from gem5::BasicPioDevice
Addr	pioAddr
	Address that the device listens to.

Addr	pioSize
	Size that the device's address range.

Tick	pioDelay
	Delay that the device experinces on an access.

Protected Attributes inherited from gem5::PioDevice
System *	sys

PioPort< PioDevice >	pioPort
	The pioPort that handles the requests for us and provides us requests that it sees.

Protected Attributes inherited from gem5::SimObject
const SimObjectParams &	_params
	Cached copy of the object parameters.

Protected Attributes inherited from gem5::EventManager
EventQueue *	eventq
	A pointer to this object's event queue.

Static Protected Attributes
static const uint32_t	MAGIC = 0x74726976

static const uint32_t	VERSION = 1

static const uint32_t	VENDOR_ID = 0x1AF4

Additional Inherited Members
Public Types inherited from gem5::PlicIntDevice
typedef PlicIntDeviceParams	Params

Public Types inherited from gem5::PioDevice
using	Params = PioDeviceParams

Public Types inherited from gem5::ClockedObject
using	Params = ClockedObjectParams
	Parameters of ClockedObject.

Public Types inherited from gem5::SimObject
typedef SimObjectParams	Params

Static Public Member Functions inherited from gem5::SimObject
static void	serializeAll (const std::string &cpt_dir)
	Create a checkpoint by serializing all SimObjects in the system.

static SimObject *	find (const char *name)
	Find the SimObject with the given name and return a pointer to it.

static void	setSimObjectResolver (SimObjectResolver *resolver)
	There is a single object name resolver, and it is only set when simulation is restoring from checkpoints.

static SimObjectResolver *	getSimObjectResolver ()
	There is a single object name resolver, and it is only set when simulation is restoring from checkpoints.

Static Public Member Functions inherited from gem5::Serializable
static const std::string &	currentSection ()
	Gets the fully-qualified name of the active section.

static void	generateCheckpointOut (const std::string &cpt_dir, std::ofstream &outstream)
	Generate a checkpoint file so that the serialization can be routed to it.

Public Attributes inherited from gem5::ClockedObject
PowerState *	powerState

Detailed Description

Definition at line 54 of file vio_mmio.hh.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum : Addr

protected

Offsets into VirtIO MMIO space.

Enumerator
OFF_MAGIC
OFF_VERSION
OFF_DEVICE_ID
OFF_VENDOR_ID
OFF_HOST_FEATURES
OFF_HOST_FEATURES_SELECT
OFF_GUEST_FEATURES
OFF_GUEST_FEATURES_SELECT
OFF_GUEST_PAGE_SIZE
OFF_QUEUE_SELECT
OFF_QUEUE_NUM_MAX
OFF_QUEUE_NUM
OFF_QUEUE_ALIGN
OFF_QUEUE_PFN
OFF_QUEUE_NOTIFY
OFF_INTERRUPT_STATUS
OFF_INTERRUPT_ACK
OFF_STATUS
OFF_CONFIG

Definition at line 68 of file vio_mmio.hh.

◆ anonymous enum

anonymous enum

protected

Enumerator
INT_USED_RING
INT_CONFIG

Definition at line 93 of file vio_mmio.hh.

Constructor & Destructor Documentation

◆ MmioVirtIO()

gem5::RiscvISA::MmioVirtIO::MmioVirtIO ( const RiscvMmioVirtIOParams & params )

Definition at line 52 of file vio_mmio.cc.

References kick(), gem5::VirtIODeviceBase::registerKickCallback(), and vio.

◆ ~MmioVirtIO()

gem5::RiscvISA::MmioVirtIO::~MmioVirtIO ( )

virtual

Definition at line 60 of file vio_mmio.cc.

Member Function Documentation

◆ kick()

void gem5::RiscvISA::MmioVirtIO::kick ( )

protected

Definition at line 261 of file vio_mmio.cc.

References DPRINTF, INT_USED_RING, interruptStatus, and setInterrupts().

Referenced by MmioVirtIO().

◆ read() [1/2]

uint32_t gem5::RiscvISA::MmioVirtIO::read ( Addr offset )

protected

◆ read() [2/2]

Tick gem5::RiscvISA::MmioVirtIO::read ( PacketPtr pkt )

overrideprotectedvirtual

Pure virtual function that the device must implement.

Called when a read command is recieved by the port.

Parameters

pkt	Packet describing this request

Returns: number of ticks it took to complete

Implements gem5::PioDevice.

Definition at line 65 of file vio_mmio.cc.

References DPRINTF, gem5::Packet::getAddr(), gem5::Packet::getSize(), gem5::Packet::makeResponse(), OFF_CONFIG, gem5::ArmISA::offset, panic_if, gem5::BasicPioDevice::pioAddr, read(), gem5::VirtIODeviceBase::readConfig(), gem5::Packet::setLE(), and vio.

Referenced by read().

◆ setInterrupts()

void gem5::RiscvISA::MmioVirtIO::setInterrupts ( uint32_t value )

protected

Definition at line 268 of file vio_mmio.cc.

References gem5::PlicIntDevice::_interruptID, interruptStatus, and gem5::PlicIntDevice::platform.

Referenced by kick(), and write().

◆ write() [1/2]

void gem5::RiscvISA::MmioVirtIO::write	(	Addr	offset,
		uint32_t	value
	)

protected

◆ write() [2/2]

Tick gem5::RiscvISA::MmioVirtIO::write ( PacketPtr pkt )

overrideprotectedvirtual

Pure virtual function that the device must implement.

Called when a write command is recieved by the port.

Parameters

pkt	Packet describing this request

Returns: number of ticks it took to complete

Implements gem5::PioDevice.

Definition at line 162 of file vio_mmio.cc.

References DPRINTF, gem5::Packet::getAddr(), gem5::Packet::getLE(), gem5::Packet::getSize(), gem5::Packet::makeResponse(), OFF_CONFIG, gem5::ArmISA::offset, panic_if, gem5::BasicPioDevice::pioAddr, vio, write(), and gem5::VirtIODeviceBase::writeConfig().

Referenced by write().

Member Data Documentation

◆ guestFeaturesSelect

uint32_t gem5::RiscvISA::MmioVirtIO::guestFeaturesSelect

protected

Definition at line 111 of file vio_mmio.hh.

Referenced by read(), and write().

◆ hostFeaturesSelect

uint32_t gem5::RiscvISA::MmioVirtIO::hostFeaturesSelect

protected

Definition at line 110 of file vio_mmio.hh.

Referenced by read(), and write().

◆ interruptStatus

uint32_t gem5::RiscvISA::MmioVirtIO::interruptStatus

protected

Definition at line 113 of file vio_mmio.hh.

Referenced by kick(), read(), setInterrupts(), and write().

◆ MAGIC

const uint32_t gem5::RiscvISA::MmioVirtIO::MAGIC = 0x74726976

staticprotected

Definition at line 99 of file vio_mmio.hh.

Referenced by read().

◆ pageSize

uint32_t gem5::RiscvISA::MmioVirtIO::pageSize

protected

Definition at line 112 of file vio_mmio.hh.

Referenced by read(), and write().

◆ VENDOR_ID

const uint32_t gem5::RiscvISA::MmioVirtIO::VENDOR_ID = 0x1AF4

staticprotected

Definition at line 101 of file vio_mmio.hh.

Referenced by read().

◆ VERSION

const uint32_t gem5::RiscvISA::MmioVirtIO::VERSION = 1

staticprotected

Definition at line 100 of file vio_mmio.hh.

Referenced by read().

◆ vio

VirtIODeviceBase& gem5::RiscvISA::MmioVirtIO::vio

protected

Definition at line 116 of file vio_mmio.hh.

Referenced by MmioVirtIO(), read(), read(), write(), and write().

The documentation for this class was generated from the following files:

dev/riscv/vio_mmio.hh
dev/riscv/vio_mmio.cc

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ anonymous enum

◆ anonymous enum

Constructor & Destructor Documentation

◆ MmioVirtIO()

◆ ~MmioVirtIO()

Member Function Documentation

◆ kick()

◆ read() [1/2]

◆ read() [2/2]

◆ setInterrupts()

◆ write() [1/2]

◆ write() [2/2]

Member Data Documentation

◆ guestFeaturesSelect

◆ hostFeaturesSelect

◆ interruptStatus

◆ MAGIC

◆ pageSize

◆ VENDOR_ID

◆ VERSION

◆ vio
