SingleDataRequest is used for requests that don't fragment. More...

#include <lsq.hh>

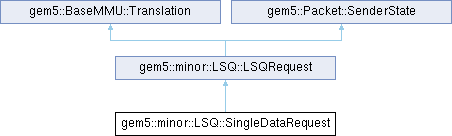

Inheritance diagram for gem5::minor::LSQ::SingleDataRequest:

Public Member Functions
void	startAddrTranslation ()
	Send single translation request.

PacketPtr	getHeadPacket ()
	Get the head packet as counted by numIssuedFragments.

void	stepToNextPacket ()
	Remember that the packet has been sent.

bool	hasPacketsInMemSystem ()
	Has packet been sent.

bool	sentAllPackets ()
	packetInFlight can become false again, so need to check packetSent

void	retireResponse (PacketPtr packet_)
	Keep the given packet as the response packet LSQRequest::packet.

	SingleDataRequest (LSQ &port_, MinorDynInstPtr inst_, bool isLoad_, PacketDataPtr data_=NULL, uint64_t *res_=NULL)

Public Member Functions inherited from gem5::minor::LSQ::LSQRequest
	LSQRequest (LSQ &port_, MinorDynInstPtr inst_, bool isLoad_, PacketDataPtr data_=NULL, uint64_t *res_=NULL)

virtual	~LSQRequest ()

void	makePacket ()
	Make a packet to use with the memory transaction.

bool	skippedMemAccess ()
	Was no memory access attempted for this request?

void	setSkipped ()
	Set this request as having been skipped before a memory transfer was attempt.

AddrRangeCoverage	containsAddrRangeOf (LSQRequest *other_request)
	Does this request's address range fully cover the range of other_request?

virtual void	startAddrTranslation ()=0
	Start the address translation process for this request.

virtual PacketPtr	getHeadPacket ()=0
	Get the next packet to issue for this request.

virtual void	stepToNextPacket ()=0
	Step to the next packet for the next call to getHeadPacket.

virtual bool	sentAllPackets ()=0
	Have all packets been sent?

virtual bool	hasPacketsInMemSystem ()=0
	True if this request has any issued packets in the memory system and so can't be interrupted until it gets responses.

virtual void	retireResponse (PacketPtr packet_)=0
	Retire a response packet into the LSQRequest packet possibly completing this transfer.

virtual bool	isBarrier ()
	Is this a request a barrier?

bool	needsToBeSentToStoreBuffer ()
	This request, once processed by the requests/transfers queues, will need to go to the store buffer.

void	setState (LSQRequestState new_state)
	Set state and output trace output.

bool	isComplete () const
	Has this request been completed.

void	reportData (std::ostream &os) const
	MinorTrace report interface.

Public Member Functions inherited from gem5::BaseMMU::Translation
virtual	~Translation ()

virtual void	markDelayed ()=0
	Signal that the translation has been delayed due to a hw page table walk.

virtual void	finish (const Fault &fault, const RequestPtr &req, ThreadContext *tc, BaseMMU::Mode mode)=0

virtual bool	squashed () const
	This function is used by the page table walker to determine if it should translate the a pending request or if the underlying request has been squashed.

Public Member Functions inherited from gem5::Packet::SenderState
	SenderState ()

virtual	~SenderState ()

Protected Member Functions
void	finish (const Fault &fault_, const RequestPtr &request_, ThreadContext *tc, BaseMMU::Mode mode)
	TLB interace.

Protected Member Functions inherited from gem5::minor::LSQ::LSQRequest
void	markDelayed ()
	BaseMMU::Translation interface.

void	tryToSuppressFault ()
	Instructions may want to suppress translation faults (e.g.

void	disableMemAccess ()

void	completeDisabledMemAccess ()

Protected Attributes
bool	packetInFlight
	Has my only packet been sent to the memory system but has not yet been responded to.

bool	packetSent
	Has the packet been at least sent to the memory system?

Additional Inherited Members
Public Types inherited from gem5::minor::LSQ::LSQRequest
enum	LSQRequestState { NotIssued , InTranslation , Translated , Failed , RequestIssuing , StoreToStoreBuffer , RequestNeedsRetry , StoreInStoreBuffer , StoreBufferIssuing , StoreBufferNeedsRetry , Complete }

Static Public Member Functions inherited from gem5::minor::LSQ::LSQRequest
static AddrRangeCoverage	containsAddrRangeOf (Addr req1_addr, unsigned int req1_size, Addr req2_addr, unsigned int req2_size)
	Does address range req1 (req1_addr to req1_addr + req1_size - 1) fully cover, partially cover or not cover at all the range req2.

Public Attributes inherited from gem5::minor::LSQ::LSQRequest
LSQ &	port
	Owning port.

MinorDynInstPtr	inst
	Instruction which made this request.

bool	isLoad
	Load/store indication used for building packet.

PacketDataPtr	data
	Dynamically allocated and populated data carried for building write packets.

PacketPtr	packet

RequestPtr	request
	The underlying request of this LSQRequest.

uint64_t *	res
	Res from pushRequest.

bool	skipped
	Was skipped.

bool	issuedToMemory
	This in an access other than a normal cacheable load that's visited the memory system.

bool	isTranslationDelayed
	Address translation is delayed due to table walk.

LSQRequestState	state

Public Attributes inherited from gem5::Packet::SenderState
SenderState *	predecessor

Detailed Description

SingleDataRequest is used for requests that don't fragment.

Definition at line 345 of file lsq.hh.

Constructor & Destructor Documentation

◆ SingleDataRequest()

gem5::minor::LSQ::SingleDataRequest::SingleDataRequest	(	LSQ &	port_,
		MinorDynInstPtr	inst_,
		bool	isLoad_,
		PacketDataPtr	data_ = `NULL`,
		uint64_t *	res_ = `NULL`
	)
