gem5::statistics::VectorDistribution Class Reference

A vector of distributions. More...

#include <statistics.hh>

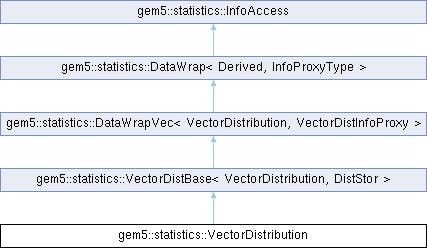

Inheritance diagram for gem5::statistics::VectorDistribution:

Public Member Functions
	VectorDistribution (Group *parent=nullptr)
	VectorDistribution (Group *parent, const char *name, const char *desc=nullptr)
	VectorDistribution (Group *parent, const char *name, const units::Base *unit, const char *desc=nullptr)
VectorDistribution &	init (size_type size, Counter min, Counter max, Counter bkt)
	Initialize storage and parameters for this distribution.
Public Member Functions inherited from gem5::statistics::VectorDistBase< VectorDistribution, DistStor >
	VectorDistBase (Group *parent, const char *name, const units::Base *unit, const char *desc)
	~VectorDistBase ()
Proxy	operator[] (off_type index)
size_type	size () const
bool	zero () const
void	prepare ()
bool	check () const
Public Member Functions inherited from gem5::statistics::DataWrapVec< Derived, InfoProxyType >
	DataWrapVec (Group *parent=nullptr, const char *name=nullptr, const units::Base *unit=units::Unspecified::get(), const char *desc=nullptr)
Derived &	subname (off_type index, const std::string &name)
	Set the subfield name for the given index, and marks this stat to print at the end of simulation.
Derived &	subdesc (off_type index, const std::string &desc)
	Set the subfield description for the given index and marks this stat to print at the end of simulation.
void	prepare ()
void	reset ()
Public Member Functions inherited from gem5::statistics::DataWrap< Derived, InfoProxyType >
const Info *	info () const
	DataWrap ()=delete
	DataWrap (const DataWrap &)=delete
DataWrap &	operator= (const DataWrap &)=delete
	DataWrap (Group *parent, const char *name, const units::Base *unit, const char *desc)
Derived &	name (const std::string &name)
	Set the name and marks this stat to print at the end of simulation.
const std::string &	name () const
Derived &	setSeparator (const std::string &_sep)
	Set the character(s) used between the name and vector number on vectors, dist, etc.
const std::string &	setSeparator () const
Derived &	unit (const units::Base *_unit)
	Set the unit of the stat.
Derived &	desc (const std::string &_desc)
	Set the description and marks this stat to print at the end of simulation.
Derived &	precision (int _precision)
	Set the precision and marks this stat to print at the end of simulation.
Derived &	flags (Flags _flags)
	Set the flags and marks this stat to print at the end of simulation.
template<class Stat >
Derived &	prereq (const Stat &prereq)
	Set the prerequisite stat and marks this stat to print at the end of simulation.
Public Member Functions inherited from gem5::statistics::InfoAccess
	InfoAccess ()
void	reset ()
	Reset the stat to the default state.
bool	zero () const
bool	check () const
	Check that this stat has been set up properly and is ready for use.

Additional Inherited Members
Public Types inherited from gem5::statistics::VectorDistBase< VectorDistribution, DistStor >
typedef VectorDistInfoProxy< VectorDistribution >	Info
typedef DistStor	Storage
typedef Stor::Params	Params
typedef DistProxy< VectorDistribution >	Proxy
Public Types inherited from gem5::statistics::DataWrapVec< Derived, InfoProxyType >
typedef InfoProxyType< Derived >	Info
Public Types inherited from gem5::statistics::DataWrap< Derived, InfoProxyType >
typedef InfoProxyType< Derived >	Info
Protected Member Functions inherited from gem5::statistics::VectorDistBase< VectorDistribution, DistStor >
Storage *	data (off_type index)
const Storage *	data (off_type index) const
void	doInit (size_type s)
Protected Member Functions inherited from gem5::statistics::DataWrap< Derived, InfoProxyType >
Derived &	self ()
Info *	info ()
Protected Member Functions inherited from gem5::statistics::InfoAccess
void	setInfo (Group *parent, Info *info)
	Set up an info class for this statistic.
void	setParams (const StorageParams *params)
	Save Storage class parameters if any.
void	setInit ()
	Save Storage class parameters if any.
Info *	info ()
	Grab the information class for this statistic.
const Info *	info () const
	Grab the information class for this statistic.
bool	newStyleStats () const
	Check if the info is new style stats.
Protected Attributes inherited from gem5::statistics::VectorDistBase< VectorDistribution, DistStor >
std::vector< Storage * >	storage

Detailed Description

A vector of distributions.

See also

VectorDistBase, DistStor

Definition at line 2244 of file statistics.hh.

Constructor & Destructor Documentation

VectorDistribution() [1/3]

gem5::statistics::VectorDistribution::VectorDistribution ( Group *  parent = nullptr )

inline

Definition at line 2247 of file statistics.hh.

VectorDistribution() [2/3]

gem5::statistics::VectorDistribution::VectorDistribution ( Group *  parent, const char *  name, const char *  desc = nullptr  )

inline

Definition at line 2253 of file statistics.hh.

VectorDistribution() [3/3]

gem5::statistics::VectorDistribution::VectorDistribution ( Group *  parent, const char *  name, const units::Base *  unit, const char *  desc = nullptr  )

inline

Definition at line 2260 of file statistics.hh.

Member Function Documentation

init()

VectorDistribution & gem5::statistics::VectorDistribution::init ( size_type  size, Counter  min, Counter  max, Counter  bkt  )

inline

Initialize storage and parameters for this distribution.

Parameters

size	The size of the vector (the number of distributions).
min	The minimum value of the distribution.
max	The maximum value of the distribution.
bkt	The number of values in each bucket.

Returns

A reference to this distribution.

Definition at line 2277 of file statistics.hh.

References gem5::statistics::VectorDistBase< VectorDistribution, DistStor >::doInit(), gem5::statistics::DataWrap< Derived, InfoProxyType >::self(), and gem5::statistics::InfoAccess::setParams().

Referenced by gem5::ComputeUnit::ComputeUnitStats::ComputeUnitStats().

---

The documentation for this class was generated from the following file:

• base/statistics.hh
