sc_gem5::DynamicSensitivityEventOrList Class Reference

#include <sensitivity.hh>

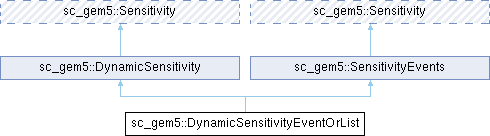

Inheritance diagram for sc_gem5::DynamicSensitivityEventOrList:

Private Member Functions
	DynamicSensitivityEventOrList (Process *p, const sc_core::sc_event_or_list *eol)
	~DynamicSensitivityEventOrList ()
bool	notifyWork (Event *e) override

Private Attributes
const sc_core::sc_event_or_list *	list

Friends
void	newDynamicSensitivityEventOrList (Process *p, const sc_core::sc_event_or_list *eol)

Additional Inherited Members
Public Types inherited from sc_gem5::Sensitivity
enum	Category { Static , Dynamic }
Public Member Functions inherited from sc_gem5::DynamicSensitivity
Category	category () override
Public Member Functions inherited from sc_gem5::Sensitivity
virtual void	clear ()=0
void	satisfy ()
virtual bool	notifyWork (Event *e)
bool	notify (Event *e)
virtual Category	category ()=0
bool	ofMethod ()
Public Member Functions inherited from sc_gem5::SensitivityEvents
void	clear () override
void	addEvent (const ::sc_core::sc_event *event)
Protected Member Functions inherited from sc_gem5::DynamicSensitivity
	DynamicSensitivity (Process *p)
void	addToEvent (const ::sc_core::sc_event *e) override
void	delFromEvent (const ::sc_core::sc_event *e) override
Protected Member Functions inherited from sc_gem5::Sensitivity
	Sensitivity (Process *p)
virtual	~Sensitivity ()
virtual void	addToEvent (const ::sc_core::sc_event *e)=0
virtual void	delFromEvent (const ::sc_core::sc_event *e)=0
Protected Member Functions inherited from sc_gem5::SensitivityEvents
	SensitivityEvents (Process *p)
	SensitivityEvents (Process *p, const std::set< const ::sc_core::sc_event * > &s)
Protected Attributes inherited from sc_gem5::Sensitivity
Process *	process
Protected Attributes inherited from sc_gem5::SensitivityEvents
std::set< const ::sc_core::sc_event * >	events

Detailed Description

Definition at line 268 of file sensitivity.hh.

Constructor & Destructor Documentation

DynamicSensitivityEventOrList()

sc_gem5::DynamicSensitivityEventOrList::DynamicSensitivityEventOrList ( Process *  p, const sc_core::sc_event_or_list *  eol  )

private

Definition at line 215 of file sensitivity.cc.

~DynamicSensitivityEventOrList()

sc_gem5::DynamicSensitivityEventOrList::~DynamicSensitivityEventOrList ( )

private

Definition at line 223 of file sensitivity.cc.

References sc_core::sc_event_or_list::autoDelete, sc_core::sc_event_or_list::busy, list, and panic_if.

Member Function Documentation

notifyWork()

bool sc_gem5::DynamicSensitivityEventOrList::notifyWork ( Event *  e )

overrideprivatevirtual

Reimplemented from sc_gem5::Sensitivity.

Definition at line 233 of file sensitivity.cc.

References sc_gem5::DynamicSensitivity::delFromEvent(), sc_gem5::SensitivityEvents::events, and sc_gem5::Sensitivity::satisfy().

Friends And Related Symbol Documentation

newDynamicSensitivityEventOrList

void newDynamicSensitivityEventOrList ( Process *  p, const sc_core::sc_event_or_list *  eol  )

friend

Definition at line 196 of file sensitivity.cc.

Member Data Documentation

list

const sc_core::sc_event_or_list* sc_gem5::DynamicSensitivityEventOrList::list

private

Definition at line 281 of file sensitivity.hh.

Referenced by ~DynamicSensitivityEventOrList().

---

The documentation for this class was generated from the following files:

• systemc/core/sensitivity.hh
• systemc/core/sensitivity.cc
