gem5::CacheEntry Class Reference

A CacheEntry is an entry containing a tag. More...

#include <cache_entry.hh>

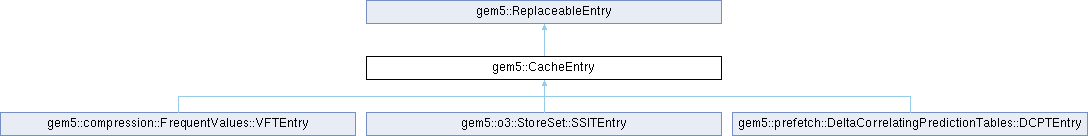

Inheritance diagram for gem5::CacheEntry:

Public Types
using	IndexingPolicy = BaseIndexingPolicy
using	KeyType = Addr
using	TagExtractor = std::function<Addr(Addr)>

Public Member Functions
	CacheEntry (TagExtractor ext)
	~CacheEntry ()=default
virtual bool	isValid () const
	Checks if the entry is valid.
virtual Addr	getTag () const
	Get tag associated to this block.
virtual bool	match (const Addr addr) const
	Checks if the given tag information corresponds to this entry's.
virtual void	insert (const Addr addr)
	Insert the block by assigning it a tag and marking it valid.
virtual void	invalidate ()
	Invalidate the block.
std::string	print () const override
	Prints relevant information about this entry.
Public Member Functions inherited from gem5::ReplaceableEntry
	ReplaceableEntry ()
virtual	~ReplaceableEntry ()=default
virtual void	setPosition (const uint32_t set, const uint32_t way)
	Set both the set and way.
uint32_t	getSet () const
	Get set number.
uint32_t	getWay () const
	Get way number.

Protected Member Functions
virtual void	setTag (Addr _tag)
	Set tag associated to this block.
virtual void	setValid ()
	Set valid bit.

Private Attributes
TagExtractor	extractTag
	Callback used to extract the tag from the entry.
bool	valid
	Valid bit.
Addr	tag
	The entry's tag.

Additional Inherited Members
Public Attributes inherited from gem5::ReplaceableEntry
std::shared_ptr< replacement_policy::ReplacementData >	replacementData
	Replacement data associated to this entry.
Protected Attributes inherited from gem5::ReplaceableEntry
uint32_t	_set
	Set to which this entry belongs.
uint32_t	_way
	Way (relative position within the set) to which this entry belongs.

Detailed Description

A CacheEntry is an entry containing a tag.

A tagged entry's contents are only relevant if it is marked as valid.

Definition at line 59 of file cache_entry.hh.

Member Typedef Documentation

IndexingPolicy

using gem5::CacheEntry::IndexingPolicy = BaseIndexingPolicy

Definition at line 62 of file cache_entry.hh.

KeyType

using gem5::CacheEntry::KeyType = Addr

Definition at line 63 of file cache_entry.hh.

TagExtractor

using gem5::CacheEntry::TagExtractor = std::function<Addr(Addr)>

Definition at line 64 of file cache_entry.hh.

Constructor & Destructor Documentation

CacheEntry()

gem5::CacheEntry::CacheEntry ( TagExtractor ext )

inline

Definition at line 66 of file cache_entry.hh.

References gem5::ArmISA::ext, extractTag, gem5::MaxAddr, tag, and valid.

Referenced by gem5::prefetch::DeltaCorrelatingPredictionTables::DCPTEntry::DCPTEntry(), gem5::o3::StoreSet::SSITEntry::SSITEntry(), and gem5::compression::FrequentValues::VFTEntry::VFTEntry().

~CacheEntry()

gem5::CacheEntry::~CacheEntry ( )

default

Member Function Documentation

getTag()

virtual Addr gem5::CacheEntry::getTag ( ) const

inlinevirtual

Get tag associated to this block.

Returns

The tag value.

Definition at line 83 of file cache_entry.hh.

References tag.

Referenced by match(), and print().

insert()

virtual void gem5::CacheEntry::insert ( const Addr addr )

inlinevirtual

Insert the block by assigning it a tag and marking it valid.

Touches block if it hadn't been touched previously.

Parameters

addr	The address value.

Definition at line 104 of file cache_entry.hh.

References gem5::X86ISA::addr, extractTag, setTag(), and setValid().

invalidate()

virtual void gem5::CacheEntry::invalidate ( )

inlinevirtual

Invalidate the block.

Its contents are no longer valid.

Reimplemented in gem5::compression::FrequentValues::VFTEntry, and gem5::prefetch::DeltaCorrelatingPredictionTables::DCPTEntry.

Definition at line 112 of file cache_entry.hh.

References gem5::MaxAddr, setTag(), and valid.

Referenced by gem5::compression::FrequentValues::VFTEntry::invalidate(), and gem5::prefetch::DeltaCorrelatingPredictionTables::DCPTEntry::invalidate().

isValid()

virtual bool gem5::CacheEntry::isValid ( ) const

inlinevirtual

Checks if the entry is valid.

Returns

True if the entry is valid.

Definition at line 76 of file cache_entry.hh.

References valid.

Referenced by match(), print(), and setValid().

match()

virtual bool gem5::CacheEntry::match ( const Addr addr ) const

inlinevirtual

Checks if the given tag information corresponds to this entry's.

Parameters

addr	The address value to be compared before tag is extracted

Returns

True if the tag information match this entry's.

Definition at line 92 of file cache_entry.hh.

References gem5::X86ISA::addr, extractTag, getTag(), and isValid().

print()

std::string gem5::CacheEntry::print ( ) const

inlineoverridevirtual

Prints relevant information about this entry.

Returns

A string containg the contents of this entry.

Reimplemented from gem5::ReplaceableEntry.

Definition at line 119 of file cache_entry.hh.

References gem5::csprintf(), getTag(), isValid(), and gem5::ReplaceableEntry::print().

setTag()

virtual void gem5::CacheEntry::setTag ( Addr _tag )

inlineprotectedvirtual

Set tag associated to this block.

Parameters

tag	The tag value.

Definition at line 131 of file cache_entry.hh.

References tag.

Referenced by insert(), and invalidate().

setValid()

virtual void gem5::CacheEntry::setValid ( )

inlineprotectedvirtual

Set valid bit.

The block must be invalid beforehand.

Definition at line 135 of file cache_entry.hh.

References isValid(), and valid.

Referenced by insert().

Member Data Documentation

extractTag

TagExtractor gem5::CacheEntry::extractTag

private

Callback used to extract the tag from the entry.

Definition at line 143 of file cache_entry.hh.

Referenced by CacheEntry(), insert(), and match().

tag

Addr gem5::CacheEntry::tag

private

The entry's tag.

Definition at line 153 of file cache_entry.hh.

Referenced by CacheEntry(), getTag(), and setTag().

valid

bool gem5::CacheEntry::valid

private

Valid bit.

The contents of this entry are only valid if this bit is set.

See also

invalidate()

insert()

Definition at line 150 of file cache_entry.hh.

Referenced by CacheEntry(), invalidate(), isValid(), and setValid().

---

The documentation for this class was generated from the following file:

• base/cache/cache_entry.hh
