sc_core::sc_signal_write_if< T > Class Template Reference

#include <sc_signal_inout_if.hh>

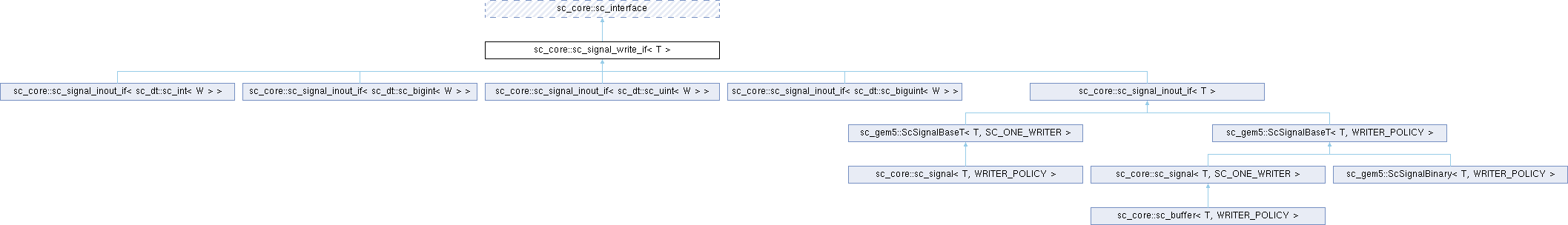

Inheritance diagram for sc_core::sc_signal_write_if< T >:

Public Member Functions
virtual sc_writer_policy	get_writer_policy () const
virtual void	write (const T &)=0
Public Member Functions inherited from sc_core::sc_interface
virtual void	register_port (sc_port_base &, const char *)
virtual const sc_event &	default_event () const
virtual	~sc_interface ()

Protected Member Functions
	sc_signal_write_if ()
Protected Member Functions inherited from sc_core::sc_interface
	sc_interface ()

Private Member Functions
	sc_signal_write_if (const sc_signal_write_if< T > &)
sc_signal_write_if< T > &	operator= (const sc_signal_write_if< T > &)

Detailed Description

template<class T>
class sc_core::sc_signal_write_if< T >

Definition at line 44 of file sc_signal_inout_if.hh.

Constructor & Destructor Documentation

sc_signal_write_if() [1/2]

template<class T>

sc_core::sc_signal_write_if< T >::sc_signal_write_if ( )

inlineprotected

Definition at line 55 of file sc_signal_inout_if.hh.

References sc_core::sc_interface::sc_interface().

Referenced by operator=(), sc_core::sc_signal_inout_if< sc_dt::sc_int< W > >::sc_signal_inout_if(), sc_core::sc_signal_inout_if< sc_dt::sc_int< W > >::sc_signal_inout_if(), and sc_signal_write_if().

sc_signal_write_if() [2/2]

template<class T>

sc_core::sc_signal_write_if< T >::sc_signal_write_if ( const sc_signal_write_if< T > & )

inlineprivate

Definition at line 59 of file sc_signal_inout_if.hh.

References sc_core::sc_interface::sc_interface(), and sc_signal_write_if().

Member Function Documentation

get_writer_policy()

template<class T>

virtual sc_writer_policy sc_core::sc_signal_write_if< T >::get_writer_policy ( ) const

inlinevirtual

Reimplemented in sc_gem5::ScSignalBaseT< T, WRITER_POLICY >, sc_gem5::ScSignalBaseT< bool, SC_ONE_WRITER >, sc_gem5::ScSignalBaseT< bool, WRITER_POLICY >, sc_gem5::ScSignalBaseT< sc_dt::sc_logic, WRITER_POLICY >, sc_gem5::ScSignalBaseT< sc_dt::sc_lv< W >, WRITER_POLICY >, and sc_gem5::ScSignalBaseT< T, SC_ONE_WRITER >.

Definition at line 48 of file sc_signal_inout_if.hh.

References sc_core::SC_ONE_WRITER.

operator=()

template<class T>

sc_signal_write_if< T > & sc_core::sc_signal_write_if< T >::operator= ( const sc_signal_write_if< T > & )

inlineprivate

Definition at line 61 of file sc_signal_inout_if.hh.

References sc_signal_write_if().

write()

template<class T>

virtual void sc_core::sc_signal_write_if< T >::write ( const T & )

pure virtual

Implemented in sc_buffer< T, WRITER_POLICY >, sc_clock, sc_core::sc_buffer< T, WRITER_POLICY >, sc_core::sc_clock, sc_core::sc_signal_resolved, sc_core::sc_signal_rv< W >, sc_gem5::ScSignalBaseT< T, WRITER_POLICY >, sc_gem5::ScSignalBaseT< bool, SC_ONE_WRITER >, sc_gem5::ScSignalBaseT< bool, WRITER_POLICY >, sc_gem5::ScSignalBaseT< sc_dt::sc_logic, WRITER_POLICY >, sc_gem5::ScSignalBaseT< sc_dt::sc_lv< W >, WRITER_POLICY >, sc_gem5::ScSignalBaseT< T, SC_ONE_WRITER >, sc_signal_resolved, and sc_signal_rv< W >.

---

The documentation for this class was generated from the following file:

• systemc/ext/channel/sc_signal_inout_if.hh
