tlm_utils::simple_initiator_socket_b< MODULE, BUSWIDTH, TYPES, POL >::process Class Reference

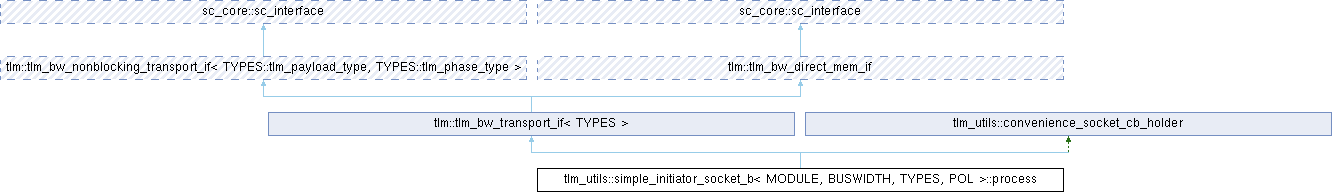

Inheritance diagram for tlm_utils::simple_initiator_socket_b< MODULE, BUSWIDTH, TYPES, POL >::process:

Public Types
typedef sync_enum_type(MODULE::*	TransportPtr) (transaction_type &, phase_type &, sc_core::sc_time &)
typedef void(MODULE::*	InvalidateDirectMemPtr) (sc_dt::uint64, sc_dt::uint64)

Public Member Functions
	process (simple_socket_base *owner)
void	set_transport_ptr (MODULE *mod, TransportPtr p)
void	set_invalidate_direct_mem_ptr (MODULE *mod, InvalidateDirectMemPtr p)
sync_enum_type	nb_transport_bw (transaction_type &trans, phase_type &phase, sc_core::sc_time &t)
void	invalidate_direct_mem_ptr (sc_dt::uint64 start_range, sc_dt::uint64 end_range)
Public Member Functions inherited from tlm::tlm_bw_nonblocking_transport_if< TRANS, PHASE >
virtual tlm_sync_enum	nb_transport_bw (TRANS &trans, PHASE &phase, sc_core::sc_time &t)=0
Public Member Functions inherited from sc_core::sc_interface
virtual void	register_port (sc_port_base &, const char *)
virtual const sc_event &	default_event () const
virtual	~sc_interface ()

Private Attributes
MODULE *	m_mod
TransportPtr	m_transport_ptr
InvalidateDirectMemPtr	m_invalidate_direct_mem_ptr

Additional Inherited Members
Protected Member Functions inherited from sc_core::sc_interface
	sc_interface ()
Protected Member Functions inherited from tlm_utils::convenience_socket_cb_holder
	convenience_socket_cb_holder (convenience_socket_base *owner)
void	display_warning (const char *msg) const
void	display_error (const char *msg) const

Detailed Description

template<typename MODULE, unsigned int BUSWIDTH, typename TYPES, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
class tlm_utils::simple_initiator_socket_b< MODULE, BUSWIDTH, TYPES, POL >::process

Definition at line 78 of file simple_initiator_socket.h.

Member Typedef Documentation

InvalidateDirectMemPtr

template<typename MODULE, unsigned int BUSWIDTH, typename TYPES, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>

typedef void(MODULE::* tlm_utils::simple_initiator_socket_b< MODULE, BUSWIDTH, TYPES, POL >::process::InvalidateDirectMemPtr) (sc_dt::uint64, sc_dt::uint64)

Definition at line 84 of file simple_initiator_socket.h.

TransportPtr

template<typename MODULE, unsigned int BUSWIDTH, typename TYPES, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>

typedef sync_enum_type(MODULE::* tlm_utils::simple_initiator_socket_b< MODULE, BUSWIDTH, TYPES, POL >::process::TransportPtr) (transaction_type &, phase_type &, sc_core::sc_time &)

Definition at line 82 of file simple_initiator_socket.h.

Constructor & Destructor Documentation

process()

template<typename MODULE, unsigned int BUSWIDTH, typename TYPES, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>

tlm_utils::simple_initiator_socket_b< MODULE, BUSWIDTH, TYPES, POL >::process::process ( simple_socket_base * owner )

inlineexplicit

Definition at line 87 of file simple_initiator_socket.h.

References tlm_utils::convenience_socket_cb_holder::convenience_socket_cb_holder(), m_invalidate_direct_mem_ptr, m_mod, and m_transport_ptr.

Member Function Documentation

invalidate_direct_mem_ptr()

template<typename MODULE, unsigned int BUSWIDTH, typename TYPES, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>

void tlm_utils::simple_initiator_socket_b< MODULE, BUSWIDTH, TYPES, POL >::process::invalidate_direct_mem_ptr ( sc_dt::uint64 start_range, sc_dt::uint64 end_range )

inlinevirtual

Implements tlm::tlm_bw_direct_mem_if.

Definition at line 130 of file simple_initiator_socket.h.

References m_invalidate_direct_mem_ptr, m_mod, and sc_assert.

nb_transport_bw()

template<typename MODULE, unsigned int BUSWIDTH, typename TYPES, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>

sync_enum_type tlm_utils::simple_initiator_socket_b< MODULE, BUSWIDTH, TYPES, POL >::process::nb_transport_bw ( transaction_type & trans, phase_type & phase, sc_core::sc_time & t )

inline

Definition at line 117 of file simple_initiator_socket.h.

References tlm_utils::convenience_socket_cb_holder::display_error(), m_mod, m_transport_ptr, sc_assert, and tlm::TLM_COMPLETED.

set_invalidate_direct_mem_ptr()

template<typename MODULE, unsigned int BUSWIDTH, typename TYPES, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>

void tlm_utils::simple_initiator_socket_b< MODULE, BUSWIDTH, TYPES, POL >::process::set_invalidate_direct_mem_ptr ( MODULE * mod, InvalidateDirectMemPtr p )

inline

Definition at line 105 of file simple_initiator_socket.h.

References tlm_utils::convenience_socket_cb_holder::display_warning(), m_invalidate_direct_mem_ptr, m_mod, and sc_assert.

set_transport_ptr()

template<typename MODULE, unsigned int BUSWIDTH, typename TYPES, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>

void tlm_utils::simple_initiator_socket_b< MODULE, BUSWIDTH, TYPES, POL >::process::set_transport_ptr ( MODULE * mod, TransportPtr p )

inline

Definition at line 93 of file simple_initiator_socket.h.

References tlm_utils::convenience_socket_cb_holder::display_warning(), m_mod, m_transport_ptr, and sc_assert.

Member Data Documentation

m_invalidate_direct_mem_ptr

template<typename MODULE, unsigned int BUSWIDTH, typename TYPES, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>

InvalidateDirectMemPtr tlm_utils::simple_initiator_socket_b< MODULE, BUSWIDTH, TYPES, POL >::process::m_invalidate_direct_mem_ptr

private

Definition at line 144 of file simple_initiator_socket.h.

Referenced by invalidate_direct_mem_ptr(), process(), and set_invalidate_direct_mem_ptr().

m_mod

template<typename MODULE, unsigned int BUSWIDTH, typename TYPES, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>

MODULE* tlm_utils::simple_initiator_socket_b< MODULE, BUSWIDTH, TYPES, POL >::process::m_mod

private

Definition at line 142 of file simple_initiator_socket.h.

Referenced by invalidate_direct_mem_ptr(), nb_transport_bw(), process(), set_invalidate_direct_mem_ptr(), and set_transport_ptr().

m_transport_ptr

template<typename MODULE, unsigned int BUSWIDTH, typename TYPES, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>

TransportPtr tlm_utils::simple_initiator_socket_b< MODULE, BUSWIDTH, TYPES, POL >::process::m_transport_ptr

private

Definition at line 143 of file simple_initiator_socket.h.

Referenced by nb_transport_bw(), process(), and set_transport_ptr().

---

The documentation for this class was generated from the following file:

• systemc/ext/tlm_utils/simple_initiator_socket.h
