Register entry for v8 records. More...

#include <tarmac_record_v8.hh>

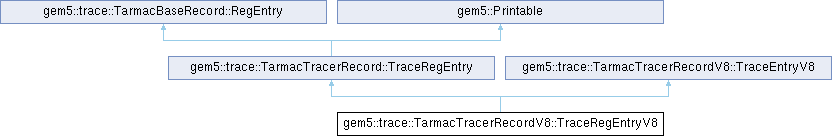

Inheritance diagram for gem5::trace::TarmacTracerRecordV8::TraceRegEntryV8:

Public Member Functions
	TraceRegEntryV8 (const TarmacContext &tarmCtx, const RegId &reg)

virtual void	print (std::ostream &outs, int verbosity=0, const std::string &prefix="") const override

Public Member Functions inherited from gem5::trace::TarmacTracerRecord::TraceRegEntry
	TraceRegEntry (const TarmacContext &tarmCtx, const RegId &reg)

void	update (const TarmacContext &tarmCtx)
	This updates the register entry using the update table.

Public Member Functions inherited from gem5::trace::TarmacBaseRecord::RegEntry
	RegEntry ()=default

	RegEntry (const PCStateBase &pc)

Public Member Functions inherited from gem5::Printable
	Printable ()

virtual	~Printable ()

Public Member Functions inherited from gem5::trace::TarmacTracerRecordV8::TraceEntryV8
	TraceEntryV8 (std::string _cpuName)

Protected Member Functions
void	updateInt (const TarmacContext &tarmCtx) override

void	updateMisc (const TarmacContext &tarmCtx) override
	Register update functions.

void	updateVec (const TarmacContext &tarmCtx) override

void	updatePred (const TarmacContext &tarmCtx) override

std::string	formatReg () const
	Returning a string which contains the formatted register value: transformed in hex, 0 padded or/and split in chunks separated by underscores in case of vector register.

Protected Member Functions inherited from gem5::trace::TarmacTracerRecord::TraceRegEntry
virtual void	updateCC (const TarmacContext &tarmCtx)

virtual void	updateFloat (const TarmacContext &tarmCtx)

Protected Attributes
uint16_t	regWidth
	Size in bits of arch register.

Protected Attributes inherited from gem5::trace::TarmacTracerRecordV8::TraceEntryV8
std::string	cpuName

Additional Inherited Members
Public Types inherited from gem5::trace::TarmacBaseRecord::RegEntry
enum	RegElement { Lo = 0 , Hi = 1 , Max = 32 }

Public Attributes inherited from gem5::trace::TarmacTracerRecord::TraceRegEntry
bool	regValid
	True if register entry is valid.

RegId	regId
	Register ID.

std::string	regName
	Register name to be printed.

Public Attributes inherited from gem5::trace::TarmacBaseRecord::RegEntry
RegType	type

RegIndex	index

ISetState	isetstate

std::vector< uint64_t >	values

Detailed Description

Register entry for v8 records.

Definition at line 96 of file tarmac_record_v8.hh.

Constructor & Destructor Documentation

◆ TraceRegEntryV8()

gem5::trace::TarmacTracerRecordV8::TraceRegEntryV8::TraceRegEntryV8	(	const TarmacContext &	tarmCtx,
		const RegId &	reg )

Definition at line 83 of file tarmac_record_v8.cc.

References gem5::X86ISA::reg, regWidth, gem5::trace::TarmacTracerRecordV8::TraceEntryV8::TraceEntryV8(), and gem5::trace::TarmacTracerRecord::TraceRegEntry::TraceRegEntry().

Member Function Documentation

◆ formatReg()

std::string gem5::trace::TarmacTracerRecordV8::TraceRegEntryV8::formatReg ( ) const

protected

Returning a string which contains the formatted register value: transformed in hex, 0 padded or/and split in chunks separated by underscores in case of vector register.
