gem5::ArmISA::SoftwareStepFault Class Reference

#include <faults.hh>

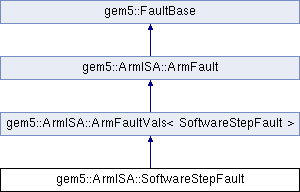

Inheritance diagram for gem5::ArmISA::SoftwareStepFault:
gem5::ArmISA::ArmFaultVals< SoftwareStepFault > gem5::ArmISA::ArmFault gem5::FaultBase

Public Member Functions

 SoftwareStepFault (ExtMachInst _mach_inst, bool is_ldx, bool stepped)

bool routeToHyp (ThreadContext *tc) const override

uint32_t iss () const override

ExceptionClass ec (ThreadContext *tc) const override

- Public Member Functions inherited from gem5::ArmISA::ArmFaultVals< SoftwareStepFault >
 ArmFaultVals (ExtMachInst _machInst=0, uint32_t _iss=0)

FaultName name () const override

FaultStat & countStat () override

FaultOffset offset (ThreadContext *tc) override

FaultOffset offset64 (ThreadContext *tc) override

OperatingMode nextMode () override

virtual bool routeToMonitor (ThreadContext *tc) const override

uint8_t armPcOffset (bool isHyp) override

uint8_t thumbPcOffset (bool isHyp) override

uint8_t armPcElrOffset () override

uint8_t thumbPcElrOffset () override

bool abortDisable (ThreadContext *tc) override

bool fiqDisable (ThreadContext *tc) override

ExceptionClass ec (ThreadContext *tc) const override

uint32_t iss () const override

- Public Member Functions inherited from gem5::ArmISA::ArmFault
 ArmFault (ExtMachInst _machInst=0, uint32_t _iss=0)

MiscRegIndex getSyndromeReg64 () const

MiscRegIndex getFaultAddrReg64 () const

void invoke (ThreadContext *tc, const StaticInstPtr &inst=nullStaticInstPtr) override

void invoke64 (ThreadContext *tc, const StaticInstPtr &inst=nullStaticInstPtr)

void update (ThreadContext *tc)

bool isResetSPSR ()

bool vectorCatch (ThreadContext *tc, const StaticInstPtr &inst)

ArmStaticInst * instrAnnotate (const StaticInstPtr &inst)

virtual void annotate (AnnotationIDs id, uint64_t val)

virtual uint32_t vectorCatchFlag () const

virtual bool isStage2 () const

virtual FSR getFsr (ThreadContext *tc) const

virtual void setSyndrome (ThreadContext *tc, MiscRegIndex syndrome_reg)

virtual bool getFaultVAddr (Addr &va) const

OperatingMode getToMode () const

- Public Member Functions inherited from gem5::FaultBase
virtual FaultName name () const =0

virtual ~FaultBase ()


Private Attributes

bool isldx

bool stepped


Additional Inherited Members

- Public Types inherited from gem5::ArmISA::ArmFault
enum  FaultSource {
  AlignmentFault = 0, InstructionCacheMaintenance, SynchExtAbtOnTranslTableWalkLL, SynchPtyErrOnTranslTableWalkLL = SynchExtAbtOnTranslTableWalkLL + 4,
  TranslationLL = SynchPtyErrOnTranslTableWalkLL + 4, AccessFlagLL = TranslationLL + 4, DomainLL = AccessFlagLL + 4, PermissionLL = DomainLL + 4,
  DebugEvent = PermissionLL + 4, SynchronousExternalAbort, TLBConflictAbort, SynchPtyErrOnMemoryAccess,
  AsynchronousExternalAbort, AsynchPtyErrOnMemoryAccess, AddressSizeLL, PrefetchTLBMiss = AddressSizeLL + 4,
  PrefetchUncacheable, NumFaultSources, FaultSourceInvalid = 0xff
}
 Generic fault source enums used to index into {short/long/aarch64}DescFaultSources[] to get the actual encodings based on the current register width state and the translation table format in use. More...

enum  AnnotationIDs {
  S1PTW, OVA, SAS, SSE,
  SRT, CM, OFA, SF,
  AR
}

enum  TranMethod { LpaeTran, VmsaTran, UnknownTran }

enum  DebugType {
  NODEBUG = 0, BRKPOINT, VECTORCATCH, WPOINT_CM,
  WPOINT_NOCM
}

- Static Public Attributes inherited from gem5::ArmISA::ArmFault
static uint8_t shortDescFaultSources [NumFaultSources]
 Encodings of the fault sources when the short-desc. More...

static uint8_t longDescFaultSources [NumFaultSources]
 Encodings of the fault sources when the long-desc. More...

static uint8_t aarch64FaultSources [NumFaultSources]
 Encodings of the fault sources in AArch64 state. More...

- Protected Member Functions inherited from gem5::ArmISA::ArmFaultVals< SoftwareStepFault >
ArmFault::FaultVals vals ("Reset", 0x000, 0x000, 0x000, 0x000, 0x000, MODE_SVC, 0, 0, 0, 0, false, true, true, EC_UNKNOWN)

ArmFault::FaultVals vals ("Undefined Instruction", 0x004, 0x000, 0x200, 0x400, 0x600, MODE_UNDEFINED, 4, 2, 0, 0, true, false, false, EC_UNKNOWN)

ArmFault::FaultVals vals ("Supervisor Call", 0x008, 0x000, 0x200, 0x400, 0x600, MODE_SVC, 4, 2, 4, 2, true, false, false, EC_SVC_TO_HYP)

ArmFault::FaultVals vals ("Secure Monitor Call", 0x008, 0x000, 0x200, 0x400, 0x600, MODE_MON, 4, 4, 4, 4, false, true, true, EC_SMC_TO_HYP)

ArmFault::FaultVals vals ("Hypervisor Call", 0x008, 0x000, 0x200, 0x400, 0x600, MODE_HYP, 4, 4, 4, 4, true, false, false, EC_HVC)

ArmFault::FaultVals vals ("Prefetch Abort", 0x00C, 0x000, 0x200, 0x400, 0x600, MODE_ABORT, 4, 4, 0, 0, true, true, false, EC_PREFETCH_ABORT_TO_HYP)

ArmFault::FaultVals vals ("Data Abort", 0x010, 0x000, 0x200, 0x400, 0x600, MODE_ABORT, 8, 8, 0, 0, true, true, false, EC_DATA_ABORT_TO_HYP)

ArmFault::FaultVals vals ("Virtual Data Abort", 0x010, 0x000, 0x200, 0x400, 0x600, MODE_ABORT, 8, 8, 0, 0, true, true, false, EC_INVALID)

ArmFault::FaultVals vals ("Hypervisor Trap", 0x014, 0x000, 0x200, 0x400, 0x600, MODE_HYP, 0, 0, 0, 0, false, false, false, EC_UNKNOWN)

ArmFault::FaultVals vals ("Secure Monitor Trap", 0x004, 0x000, 0x200, 0x400, 0x600, MODE_MON, 4, 2, 0, 0, false, false, false, EC_UNKNOWN)

ArmFault::FaultVals vals ("IRQ", 0x018, 0x080, 0x280, 0x480, 0x680, MODE_IRQ, 4, 4, 0, 0, false, true, false, EC_UNKNOWN)

ArmFault::FaultVals vals ("Virtual IRQ", 0x018, 0x080, 0x280, 0x480, 0x680, MODE_IRQ, 4, 4, 0, 0, false, true, false, EC_INVALID)

ArmFault::FaultVals vals ("FIQ", 0x01C, 0x100, 0x300, 0x500, 0x700, MODE_FIQ, 4, 4, 0, 0, false, true, true, EC_UNKNOWN)

ArmFault::FaultVals vals ("Virtual FIQ", 0x01C, 0x100, 0x300, 0x500, 0x700, MODE_FIQ, 4, 4, 0, 0, false, true, true, EC_INVALID)

ArmFault::FaultVals vals ("Illegal Inst Set State Fault", 0x004, 0x000, 0x200, 0x400, 0x600, MODE_UNDEFINED, 4, 2, 0, 0, true, false, false, EC_ILLEGAL_INST)

ArmFault::FaultVals vals ("Supervisor Trap", 0x014, 0x000, 0x200, 0x400, 0x600, MODE_SVC, 0, 0, 0, 0, false, false, false, EC_UNKNOWN)

ArmFault::FaultVals vals ("PC Alignment Fault", 0x000, 0x000, 0x200, 0x400, 0x600, MODE_SVC, 0, 0, 0, 0, true, false, false, EC_PC_ALIGNMENT)

ArmFault::FaultVals vals ("SP Alignment Fault", 0x000, 0x000, 0x200, 0x400, 0x600, MODE_SVC, 0, 0, 0, 0, true, false, false, EC_STACK_PTR_ALIGNMENT)

ArmFault::FaultVals vals ("SError", 0x000, 0x180, 0x380, 0x580, 0x780, MODE_SVC, 0, 0, 0, 0, false, true, true, EC_SERROR)

ArmFault::FaultVals vals ("Software Breakpoint", 0x000, 0x000, 0x200, 0x400, 0x600, MODE_SVC, 0, 0, 0, 0, true, false, false, EC_SOFTWARE_BREAKPOINT)

ArmFault::FaultVals vals ("Hardware Breakpoint", 0x000, 0x000, 0x200, 0x400, 0x600, MODE_SVC, 0, 0, 0, 0, true, false, false, EC_HW_BREAKPOINT)

ArmFault::FaultVals vals ("Watchpoint", 0x000, 0x000, 0x200, 0x400, 0x600, MODE_SVC, 0, 0, 0, 0, true, false, false, EC_WATCHPOINT)

ArmFault::FaultVals vals ("SoftwareStep", 0x000, 0x000, 0x200, 0x400, 0x600, MODE_SVC, 0, 0, 0, 0, true, false, false, EC_SOFTWARE_STEP)

ArmFault::FaultVals vals ("ArmSev Flush", 0x000, 0x000, 0x000, 0x000, 0x000, MODE_SVC, 0, 0, 0, 0, false, true, true, EC_UNKNOWN)

ArmFault::FaultVals vals

ArmFault::FaultVals vals

ArmFault::FaultVals vals

ArmFault::FaultVals vals

ArmFault::FaultVals vals

ArmFault::FaultVals vals

ArmFault::FaultVals vals

ArmFault::FaultVals vals

ArmFault::FaultVals vals

ArmFault::FaultVals vals

ArmFault::FaultVals vals

ArmFault::FaultVals vals

ArmFault::FaultVals vals

ArmFault::FaultVals vals

ArmFault::FaultVals vals

ArmFault::FaultVals vals

ArmFault::FaultVals vals

ArmFault::FaultVals vals

ArmFault::FaultVals vals

ArmFault::FaultVals vals

ArmFault::FaultVals vals

ArmFault::FaultVals vals

ArmFault::FaultVals vals

ArmFault::FaultVals vals

- Protected Member Functions inherited from gem5::ArmISA::ArmFault
virtual Addr getVector (ThreadContext *tc)

Addr getVector64 (ThreadContext *tc)

- Protected Attributes inherited from gem5::ArmISA::ArmFault
ExtMachInst machInst

uint32_t issRaw

bool bStep

bool from64

bool to64

ExceptionLevel fromEL

ExceptionLevel toEL

OperatingMode fromMode

OperatingMode toMode

bool faultUpdated

bool hypRouted

bool span

- Static Protected Attributes inherited from gem5::ArmISA::ArmFaultVals< SoftwareStepFault >
static FaultVals vals


Detailed Description

Definition at line 660 of file faults.hh.

Constructor & Destructor Documentation

◆ SoftwareStepFault()

gem5::ArmISA::SoftwareStepFault::SoftwareStepFault ( ExtMachInst  _mach_inst,
bool  is_ldx,
bool  stepped
)

Definition at line 1734 of file faults.cc.

References gem5::ArmISA::ArmFault::bStep.

Member Function Documentation

◆ ec()

ExceptionClass gem5::ArmISA::SoftwareStepFault::ec ( ThreadContext *  tc) const
overridevirtual

Implements gem5::ArmISA::ArmFault.

Definition at line 1753 of file faults.cc.

References gem5::ArmISA::EC_SOFTWARE_STEP_CURR_EL, gem5::ArmISA::EC_SOFTWARE_STEP_LOWER_EL, gem5::ArmISA::ArmFault::fromEL, and gem5::ArmISA::ArmFault::toEL.

◆ iss()

uint32_t gem5::ArmISA::SoftwareStepFault::iss ( ) const
overridevirtual

Implements gem5::ArmISA::ArmFault.

Definition at line 1763 of file faults.cc.

References isldx, and stepped.

◆ routeToHyp()

bool gem5::ArmISA::SoftwareStepFault::routeToHyp ( ThreadContext *  tc) const
overridevirtual

Reimplemented from gem5::ArmISA::ArmFault.

Definition at line 1743 of file faults.cc.

References gem5::ArmISA::EL1, gem5::ArmISA::EL2, gem5::ArmISA::EL2Enabled(), gem5::ArmISA::ArmFault::fromEL, gem5::ArmISA::MISCREG_HCR_EL2, gem5::ArmISA::MISCREG_MDCR_EL2, and gem5::ThreadContext::readMiscRegNoEffect().

Member Data Documentation

◆ isldx

bool gem5::ArmISA::SoftwareStepFault::isldx
private

Definition at line 663 of file faults.hh.

Referenced by iss().

◆ stepped

bool gem5::ArmISA::SoftwareStepFault::stepped
private

Definition at line 664 of file faults.hh.

Referenced by iss().

The documentation for this class was generated from the following files:
