#include <pcstate.hh>

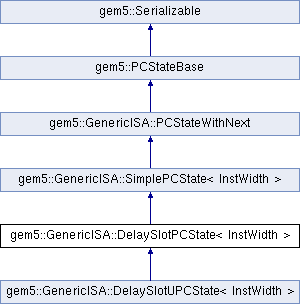

Inheritance diagram for gem5::GenericISA::DelaySlotPCState< InstWidth >:

Public Member Functions
void	output (std::ostream &os) const override

PCStateBase *	clone () const override

void	update (const PCStateBase &other) override

Addr	nnpc () const

void	nnpc (Addr val)

void	set (Addr val)

	DelaySlotPCState (const DelaySlotPCState &other)

DelaySlotPCState &	operator= (const DelaySlotPCState &other)=default

	DelaySlotPCState ()

	DelaySlotPCState (Addr val)

bool	branching () const override

void	advance () override

bool	equals (const PCStateBase &other) const override

void	serialize (CheckpointOut &cp) const override
	Serialize an object. More...

void	unserialize (CheckpointIn &cp) override
	Unserialize an object. More...

Public Member Functions inherited from gem5::GenericISA::SimplePCState< InstWidth >
	SimplePCState (const SimplePCState &other)

SimplePCState &	operator= (const SimplePCState &other)=default

	SimplePCState ()

	SimplePCState (Addr val)

void	set (Addr val)
	Force this PC to reflect a particular value, resetting all its other fields around it. More...

Public Member Functions inherited from gem5::GenericISA::PCStateWithNext
Addr	pc () const

void	pc (Addr val)

Addr	npc () const

void	npc (Addr val)

MicroPC	upc () const

void	upc (MicroPC val)

MicroPC	nupc () const

void	nupc (MicroPC val)

void	uReset () override

void	setNPC (Addr val)

Public Member Functions inherited from gem5::PCStateBase
virtual	~PCStateBase ()=default

template<class Target >
Target &	as ()

template<class Target >
const Target &	as () const

void	update (const PCStateBase *ptr)

Addr	instAddr () const
	Returns the memory address of the instruction this PC points to. More...

MicroPC	microPC () const
	Returns the current micropc. More...

Public Member Functions inherited from gem5::Serializable
	Serializable ()

virtual	~Serializable ()

void	serializeSection (CheckpointOut &cp, const char *name) const
	Serialize an object into a new section. More...

void	serializeSection (CheckpointOut &cp, const std::string &name) const

void	unserializeSection (CheckpointIn &cp, const char *name)
	Unserialize an a child object. More...

void	unserializeSection (CheckpointIn &cp, const std::string &name)

Protected Types
typedef SimplePCState< InstWidth >	Base

Protected Types inherited from gem5::GenericISA::SimplePCState< InstWidth >
typedef PCStateWithNext	Base

Protected Attributes
Addr	_nnpc

Protected Attributes inherited from gem5::GenericISA::PCStateWithNext
Addr	_npc = 0

MicroPC	_nupc = 1

Protected Attributes inherited from gem5::PCStateBase
Addr	_pc = 0

MicroPC	_upc = 0

Additional Inherited Members
Static Public Member Functions inherited from gem5::Serializable
static const std::string &	currentSection ()
	Gets the fully-qualified name of the active section. More...

static void	generateCheckpointOut (const std::string &cpt_dir, std::ofstream &outstream)
	Generate a checkpoint file so that the serialization can be routed to it. More...

Protected Member Functions inherited from gem5::GenericISA::PCStateWithNext
	PCStateWithNext (const PCStateWithNext &other)

PCStateWithNext &	operator= (const PCStateWithNext &other)=default

	PCStateWithNext ()

Protected Member Functions inherited from gem5::PCStateBase
	PCStateBase (const PCStateBase &other)

PCStateBase &	operator= (const PCStateBase &other)=default

	PCStateBase ()

Detailed Description

template<int InstWidth>
class gem5::GenericISA::DelaySlotPCState< InstWidth >

Definition at line 444 of file pcstate.hh.

Member Typedef Documentation

◆ Base

template<int InstWidth>

typedef SimplePCState<InstWidth> gem5::GenericISA::DelaySlotPCState< InstWidth >::Base

protected

Definition at line 447 of file pcstate.hh.

Constructor & Destructor Documentation

◆ DelaySlotPCState() [1/3]

template<int InstWidth>

gem5::GenericISA::DelaySlotPCState< InstWidth >::DelaySlotPCState ( const DelaySlotPCState< InstWidth > & other )

inline

Definition at line 482 of file pcstate.hh.

◆ DelaySlotPCState() [2/3]

template<int InstWidth>

gem5::GenericISA::DelaySlotPCState< InstWidth >::DelaySlotPCState ( )

inline

Definition at line 486 of file pcstate.hh.

◆ DelaySlotPCState() [3/3]

template<int InstWidth>

gem5::GenericISA::DelaySlotPCState< InstWidth >::DelaySlotPCState ( Addr val )

inlineexplicit

Definition at line 487 of file pcstate.hh.

Member Function Documentation

◆ advance()

template<int InstWidth>

void gem5::GenericISA::DelaySlotPCState< InstWidth >::advance ( )

inlineoverridevirtual

Reimplemented from gem5::GenericISA::SimplePCState< InstWidth >.

Definition at line 499 of file pcstate.hh.

Referenced by gem5::GenericISA::DelaySlotUPCState< InstWidth >::uEnd().

◆ branching()

template<int InstWidth>

bool gem5::GenericISA::DelaySlotPCState< InstWidth >::branching ( ) const

inlineoverridevirtual

Reimplemented from gem5::GenericISA::SimplePCState< InstWidth >.

Reimplemented in gem5::GenericISA::DelaySlotUPCState< InstWidth >.

Definition at line 490 of file pcstate.hh.

Referenced by gem5::GenericISA::DelaySlotUPCState< InstWidth >::branching().

◆ clone()

template<int InstWidth>

PCStateBase* gem5::GenericISA::DelaySlotPCState< InstWidth >::clone ( ) const

inlineoverridevirtual

Reimplemented from gem5::GenericISA::SimplePCState< InstWidth >.

Reimplemented in gem5::GenericISA::DelaySlotUPCState< InstWidth >.

Definition at line 459 of file pcstate.hh.

◆ equals()

template<int InstWidth>

bool gem5::GenericISA::DelaySlotPCState< InstWidth >::equals ( const PCStateBase & other ) const

inlineoverridevirtual

Reimplemented from gem5::GenericISA::PCStateWithNext.

Definition at line 507 of file pcstate.hh.

◆ nnpc() [1/2]

template<int InstWidth>

Addr gem5::GenericISA::DelaySlotPCState< InstWidth >::nnpc ( ) const

inline

Definition at line 472 of file pcstate.hh.

Referenced by gem5::GenericISA::DelaySlotPCState< 4 >::branching(), gem5::GenericISA::DelaySlotPCState< 4 >::output(), and gem5::GenericISA::DelaySlotPCState< 4 >::set().

◆ nnpc() [2/2]

template<int InstWidth>

void gem5::GenericISA::DelaySlotPCState< InstWidth >::nnpc ( Addr val )

inline

Definition at line 473 of file pcstate.hh.

◆ operator=()

template<int InstWidth>

DelaySlotPCState& gem5::GenericISA::DelaySlotPCState< InstWidth >::operator= ( const DelaySlotPCState< InstWidth > & other )

default

◆ output()

template<int InstWidth>

void gem5::GenericISA::DelaySlotPCState< InstWidth >::output ( std::ostream & os ) const

inlineoverridevirtual

Reimplemented from gem5::GenericISA::PCStateWithNext.

Reimplemented in gem5::GenericISA::DelaySlotUPCState< InstWidth >.

Definition at line 453 of file pcstate.hh.

Referenced by gem5::GenericISA::DelaySlotUPCState< InstWidth >::output().

◆ serialize()

template<int InstWidth>

void gem5::GenericISA::DelaySlotPCState< InstWidth >::serialize ( CheckpointOut & cp ) const

inlineoverridevirtual

Serialize an object.

Output an object's state into the current checkpoint section.

Parameters

cp	Checkpoint state

Reimplemented from gem5::GenericISA::PCStateWithNext.

Definition at line 514 of file pcstate.hh.

◆ set()

template<int InstWidth>

void gem5::GenericISA::DelaySlotPCState< InstWidth >::set ( Addr val )

inline

Definition at line 476 of file pcstate.hh.

Referenced by gem5::GenericISA::DelaySlotPCState< 4 >::DelaySlotPCState(), and gem5::GenericISA::DelaySlotUPCState< InstWidth >::set().

◆ unserialize()

template<int InstWidth>

void gem5::GenericISA::DelaySlotPCState< InstWidth >::unserialize ( CheckpointIn & cp )

inlineoverridevirtual

Unserialize an object.

Read an object's state from the current checkpoint section.

Parameters

cp	Checkpoint state

Reimplemented from gem5::GenericISA::PCStateWithNext.

Definition at line 521 of file pcstate.hh.

◆ update()

template<int InstWidth>

void gem5::GenericISA::DelaySlotPCState< InstWidth >::update ( const PCStateBase & other )

inlineoverridevirtual

Reimplemented from gem5::GenericISA::PCStateWithNext.

Definition at line 465 of file pcstate.hh.

Member Data Documentation

◆ _nnpc

template<int InstWidth>

Addr gem5::GenericISA::DelaySlotPCState< InstWidth >::_nnpc

protected

Definition at line 449 of file pcstate.hh.

Referenced by gem5::GenericISA::DelaySlotPCState< 4 >::advance(), gem5::GenericISA::DelaySlotPCState< 4 >::equals(), gem5::GenericISA::DelaySlotPCState< 4 >::nnpc(), gem5::GenericISA::DelaySlotPCState< 4 >::serialize(), gem5::GenericISA::DelaySlotPCState< 4 >::unserialize(), and gem5::GenericISA::DelaySlotPCState< 4 >::update().

The documentation for this class was generated from the following file:

arch/generic/pcstate.hh
