gem5::GenericISA::PCStateWithNext Class Reference

#include <pcstate.hh>

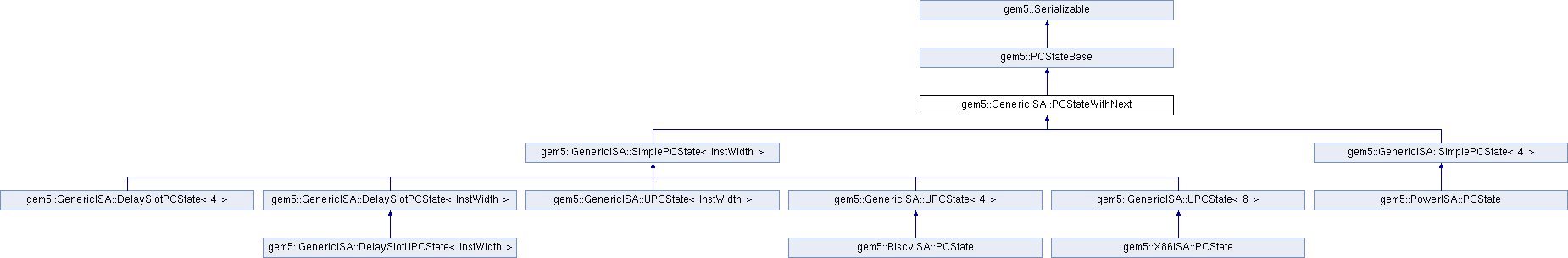

Inheritance diagram for gem5::GenericISA::PCStateWithNext:

Public Member Functions
Addr	pc () const
void	pc (Addr val)
Addr	npc () const
void	npc (Addr val)
MicroPC	upc () const
void	upc (MicroPC val)
MicroPC	nupc () const
void	nupc (MicroPC val)
void	uReset () override
void	setNPC (Addr val)
void	output (std::ostream &os) const override
void	update (const PCStateBase &other) override
bool	equals (const PCStateBase &other) const override
void	serialize (CheckpointOut &cp) const override
	Serialize an object. More...
void	unserialize (CheckpointIn &cp) override
	Unserialize an object. More...
Public Member Functions inherited from gem5::PCStateBase
virtual	~PCStateBase ()=default
template<class Target >
Target &	as ()
template<class Target >
const Target &	as () const
virtual PCStateBase *	clone () const =0
void	update (const PCStateBase *ptr)
Addr	instAddr () const
	Returns the memory address of the instruction this PC points to. More...
MicroPC	microPC () const
	Returns the current micropc. More...
virtual void	advance ()=0
virtual bool	branching () const =0
Public Member Functions inherited from gem5::Serializable
	Serializable ()
virtual	~Serializable ()
void	serializeSection (CheckpointOut &cp, const char *name) const
	Serialize an object into a new section. More...
void	serializeSection (CheckpointOut &cp, const std::string &name) const
void	unserializeSection (CheckpointIn &cp, const char *name)
	Unserialize an a child object. More...
void	unserializeSection (CheckpointIn &cp, const std::string &name)

Protected Member Functions
	PCStateWithNext (const PCStateWithNext &other)
PCStateWithNext &	operator= (const PCStateWithNext &other)=default
	PCStateWithNext ()
Protected Member Functions inherited from gem5::PCStateBase
	PCStateBase (const PCStateBase &other)
PCStateBase &	operator= (const PCStateBase &other)=default
	PCStateBase ()

Protected Attributes
Addr	_npc = 0
MicroPC	_nupc = 1
Protected Attributes inherited from gem5::PCStateBase
Addr	_pc = 0
MicroPC	_upc = 0

Additional Inherited Members
Static Public Member Functions inherited from gem5::Serializable
static const std::string &	currentSection ()
	Gets the fully-qualified name of the active section. More...
static void	generateCheckpointOut (const std::string &cpt_dir, std::ofstream &outstream)
	Generate a checkpoint file so that the serialization can be routed to it. More...

Detailed Description

Definition at line 249 of file pcstate.hh.

Constructor & Destructor Documentation

PCStateWithNext() [1/2]

gem5::GenericISA::PCStateWithNext::PCStateWithNext ( const PCStateWithNext &  other )

inlineprotected

Definition at line 256 of file pcstate.hh.

PCStateWithNext() [2/2]

gem5::GenericISA::PCStateWithNext::PCStateWithNext ( )

inlineprotected

Definition at line 260 of file pcstate.hh.

Member Function Documentation

equals()

bool gem5::GenericISA::PCStateWithNext::equals ( const PCStateBase &  other ) const

inlineoverridevirtual

Reimplemented from gem5::PCStateBase.

Reimplemented in gem5::GenericISA::DelaySlotPCState< InstWidth >, and gem5::GenericISA::DelaySlotPCState< 4 >.

Definition at line 305 of file pcstate.hh.

References _npc, _nupc, gem5::PCStateBase::as(), gem5::PCStateBase::equals(), and gem5::ArmISA::ps.

Referenced by gem5::GenericISA::DelaySlotPCState< 4 >::equals().

npc() [1/2]

Addr gem5::GenericISA::PCStateWithNext::npc ( ) const

inline

Definition at line 266 of file pcstate.hh.

References _npc.

Referenced by gem5::RiscvISA::PCState::branching(), gem5::X86ISA::PCState::branching(), gem5::GenericISA::SimplePCState< 4 >::branching(), gem5::GenericISA::UPCState< 8 >::branching(), gem5::GenericISA::DelaySlotPCState< 4 >::branching(), gem5::X86ISA::X86MicroopBase::branchTarget(), gem5::RiscvISA::RiscvStaticInst::buildRetPC(), gem5::SparcISA::SparcStaticInst::buildRetPC(), gem5::Trace::ArmNativeTrace::check(), gem5::RiscvISA::Decoder::decode(), output(), gem5::GenericISA::DelaySlotPCState< 4 >::output(), gem5::GenericISA::SimplePCState< 4 >::set(), gem5::RiscvISA::ISA::setMiscReg(), setNPC(), and gem5::X86ISA::Decoder::updateNPC().

npc() [2/2]

void gem5::GenericISA::PCStateWithNext::npc ( Addr  val )

inline

Definition at line 267 of file pcstate.hh.

References _npc, and gem5::X86ISA::val.

nupc() [1/2]

MicroPC gem5::GenericISA::PCStateWithNext::nupc ( ) const

inline

Definition at line 272 of file pcstate.hh.

References _nupc.

Referenced by gem5::RiscvISA::PCState::branching(), gem5::X86ISA::PCState::branching(), gem5::GenericISA::UPCState< 8 >::branching(), gem5::GenericISA::DelaySlotUPCState< InstWidth >::branching(), gem5::GenericISA::UPCState< 8 >::output(), gem5::GenericISA::DelaySlotUPCState< InstWidth >::output(), gem5::GenericISA::UPCState< 8 >::set(), gem5::GenericISA::DelaySlotUPCState< InstWidth >::set(), gem5::GenericISA::UPCState< 8 >::uAdvance(), and gem5::GenericISA::UPCState< 8 >::uEnd().

nupc() [2/2]

void gem5::GenericISA::PCStateWithNext::nupc ( MicroPC  val )

inline

Definition at line 273 of file pcstate.hh.

References _nupc, and gem5::X86ISA::val.

operator=()

PCStateWithNext& gem5::GenericISA::PCStateWithNext::operator= ( const PCStateWithNext &  other )

protecteddefault

output()

void gem5::GenericISA::PCStateWithNext::output ( std::ostream &  os ) const

inlineoverridevirtual

Implements gem5::PCStateBase.

Reimplemented in gem5::GenericISA::DelaySlotUPCState< InstWidth >, gem5::GenericISA::DelaySlotPCState< InstWidth >, gem5::GenericISA::DelaySlotPCState< 4 >, gem5::GenericISA::UPCState< InstWidth >, gem5::GenericISA::UPCState< 4 >, and gem5::GenericISA::UPCState< 8 >.

Definition at line 290 of file pcstate.hh.

References gem5::ccprintf(), npc(), gem5::X86ISA::os, and pc().

Referenced by gem5::GenericISA::UPCState< 8 >::output().

pc() [1/2]

Addr gem5::GenericISA::PCStateWithNext::pc ( ) const

inline

Definition at line 263 of file pcstate.hh.

References gem5::PCStateBase::_pc.

Referenced by gem5::RiscvISA::PCState::branching(), gem5::X86ISA::PCState::branching(), gem5::GenericISA::SimplePCState< 4 >::branching(), gem5::GenericISA::UPCState< 8 >::branching(), gem5::GenericISA::DelaySlotPCState< 4 >::branching(), output(), gem5::GenericISA::DelaySlotPCState< 4 >::output(), gem5::GenericISA::SimplePCState< 4 >::set(), gem5::ArmISA::SelfDebug::testBreakPoints(), gem5::RiscvISA::BreakpointFault::trap_value(), and gem5::X86ISA::Decoder::updateNPC().

pc() [2/2]

void gem5::GenericISA::PCStateWithNext::pc ( Addr  val )

inline

Definition at line 264 of file pcstate.hh.

References gem5::PCStateBase::_pc, and gem5::X86ISA::val.

serialize()

void gem5::GenericISA::PCStateWithNext::serialize ( CheckpointOut &  cp ) const

inlineoverridevirtual

Serialize an object.

Output an object's state into the current checkpoint section.

Parameters

cp	Checkpoint state

Reimplemented from gem5::PCStateBase.

Reimplemented in gem5::GenericISA::DelaySlotPCState< InstWidth >, gem5::GenericISA::DelaySlotPCState< 4 >, and gem5::X86ISA::PCState.

Definition at line 313 of file pcstate.hh.

References _npc, _nupc, gem5::PCStateBase::serialize(), and SERIALIZE_SCALAR.

Referenced by gem5::X86ISA::PCState::serialize(), and gem5::GenericISA::DelaySlotPCState< 4 >::serialize().

setNPC()

void gem5::GenericISA::PCStateWithNext::setNPC ( Addr  val )

inline

Definition at line 284 of file pcstate.hh.

References npc(), and gem5::X86ISA::val.

Referenced by gem5::X86ISA::PCState::setNPC().

unserialize()

void gem5::GenericISA::PCStateWithNext::unserialize ( CheckpointIn &  cp )

inlineoverridevirtual

Unserialize an object.

Read an object's state from the current checkpoint section.

Parameters

cp	Checkpoint state

Reimplemented from gem5::PCStateBase.

Reimplemented in gem5::GenericISA::DelaySlotPCState< InstWidth >, gem5::GenericISA::DelaySlotPCState< 4 >, and gem5::X86ISA::PCState.

Definition at line 321 of file pcstate.hh.

References _npc, _nupc, gem5::PCStateBase::unserialize(), and UNSERIALIZE_SCALAR.

Referenced by gem5::X86ISA::PCState::unserialize(), and gem5::GenericISA::DelaySlotPCState< 4 >::unserialize().

upc() [1/2]

MicroPC gem5::GenericISA::PCStateWithNext::upc ( ) const

inline

Definition at line 269 of file pcstate.hh.

References gem5::PCStateBase::_upc.

Referenced by gem5::RiscvISA::PCState::branching(), gem5::X86ISA::PCState::branching(), gem5::GenericISA::UPCState< 8 >::branching(), gem5::GenericISA::DelaySlotUPCState< InstWidth >::branching(), gem5::GenericISA::UPCState< 8 >::output(), gem5::GenericISA::DelaySlotUPCState< InstWidth >::output(), gem5::GenericISA::UPCState< 8 >::set(), gem5::GenericISA::DelaySlotUPCState< InstWidth >::set(), gem5::GenericISA::UPCState< 8 >::uAdvance(), and gem5::GenericISA::UPCState< 8 >::uEnd().

upc() [2/2]

void gem5::GenericISA::PCStateWithNext::upc ( MicroPC  val )

inline

Definition at line 270 of file pcstate.hh.

References gem5::PCStateBase::_upc, and gem5::X86ISA::val.

update()

void gem5::GenericISA::PCStateWithNext::update ( const PCStateBase &  other )

inlineoverridevirtual

Reimplemented from gem5::PCStateBase.

Reimplemented in gem5::GenericISA::DelaySlotPCState< InstWidth >, gem5::GenericISA::DelaySlotPCState< 4 >, gem5::RiscvISA::PCState, gem5::X86ISA::PCState, and gem5::PowerISA::PCState.

Definition at line 296 of file pcstate.hh.

References _npc, _nupc, gem5::PCStateBase::as(), and gem5::PCStateBase::update().

Referenced by gem5::PowerISA::PCState::update(), gem5::X86ISA::PCState::update(), gem5::RiscvISA::PCState::update(), and gem5::GenericISA::DelaySlotPCState< 4 >::update().

uReset()

void gem5::GenericISA::PCStateWithNext::uReset ( )

inlineoverridevirtual

Reimplemented from gem5::PCStateBase.

Definition at line 277 of file pcstate.hh.

References _nupc, and gem5::PCStateBase::uReset().

Member Data Documentation

_npc

Addr gem5::GenericISA::PCStateWithNext::_npc = 0

protected

Definition at line 252 of file pcstate.hh.

Referenced by gem5::GenericISA::SimplePCState< 4 >::advance(), gem5::GenericISA::DelaySlotPCState< 4 >::advance(), equals(), npc(), serialize(), unserialize(), and update().

_nupc

MicroPC gem5::GenericISA::PCStateWithNext::_nupc = 1

protected

Definition at line 254 of file pcstate.hh.

Referenced by equals(), nupc(), serialize(), gem5::GenericISA::DelaySlotUPCState< InstWidth >::uAdvance(), gem5::GenericISA::DelaySlotUPCState< InstWidth >::uEnd(), unserialize(), update(), and uReset().

---

The documentation for this class was generated from the following file:

• arch/generic/pcstate.hh
