#include <fs_workload.hh>

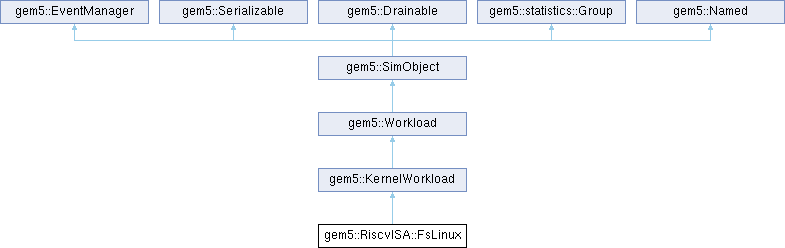

Inheritance diagram for gem5::RiscvISA::FsLinux:
Public Member Functions | |
| PARAMS (RiscvLinux) | |
| FsLinux (const Params &p) | |
| void | initState () override |
| initState() is called on each SimObject when not restoring from a checkpoint. | |
| void | setSystem (System *sys) override |
| ByteOrder | byteOrder () const override |
 Public Member Functions inherited from gem5::KernelWorkload | |
| PARAMS (KernelWorkload) | |
| Addr | start () const |
| Addr | end () const |
| Addr | loadAddrMask () const |
| Addr | loadAddrOffset () const |
| KernelWorkload (const Params &p) | |
| Addr | getEntry () const override |
| ByteOrder | byteOrder () const override |
| loader::Arch | getArch () const override |
| const loader::SymbolTable & | symtab (ThreadContext *tc) override |
| bool | insertSymbol (const loader::Symbol &symbol) override |
| void | initState () override |
| initState() is called on each SimObject when not restoring from a checkpoint. | |
| void | serialize (CheckpointOut &cp) const override |
| Serialize an object. | |
| void | unserialize (CheckpointIn &cp) override |
| Unserialize an object. | |
| template<class T , typename... Args> | |
| T * | addKernelFuncEvent (const char *lbl, Args... args) |
| Add a function-based event to a kernel symbol. | |
| template<class T , typename... Args> | |
| T * | addKernelFuncEventOrPanic (const char *lbl, Args... args) |
| Public Member Functions inherited from gem5::Workload | |
| Workload (const WorkloadParams ¶ms) | |
| virtual void | setSystem (System *sys) |
| void | recordQuiesce () |
| void | recordArm () |
| bool | trapToGdb (GDBSignal sig, ContextID ctx_id) |
| bool | sendToGdb (std::string msg) |
| virtual void | registerThreadContext (ThreadContext *tc) |
| virtual void | replaceThreadContext (ThreadContext *tc) |
| void | startup () override |
| startup() is the final initialization call before simulation. | |
| virtual Addr | getEntry () const =0 |
| virtual ByteOrder | byteOrder () const =0 |
| virtual loader::Arch | getArch () const =0 |
| virtual const loader::SymbolTable & | symtab (ThreadContext *tc)=0 |
| virtual bool | insertSymbol (const loader::Symbol &symbol)=0 |
| virtual void | syscall (ThreadContext *tc) |
| virtual void | event (ThreadContext *tc) |
| template<class T , typename... Args> | |
| T * | addFuncEvent (const loader::SymbolTable &symtab, const char *lbl, const std::string &desc, Args... args) |
| Add a function-based event to the given function, to be looked up in the specified symbol table. | |
| template<class T > | |
| T * | addFuncEvent (const loader::SymbolTable &symtab, const char *lbl) |
| template<class T , typename... Args> | |
| T * | addFuncEventOrPanic (const loader::SymbolTable &symtab, const char *lbl, Args... args) |
| Public Member Functions inherited from gem5::SimObject | |
| const Params & | params () const |
| SimObject (const Params &p) | |
| virtual | ~SimObject () |
| virtual void | init () |
| init() is called after all C++ SimObjects have been created and all ports are connected. | |
| virtual void | loadState (CheckpointIn &cp) |
| loadState() is called on each SimObject when restoring from a checkpoint. | |
| virtual void | initState () |
| initState() is called on each SimObject when not restoring from a checkpoint. | |
| virtual void | regProbePoints () |
| Register probe points for this object. | |
| virtual void | regProbeListeners () |
| Register probe listeners for this object. | |
| ProbeManager * | getProbeManager () |
| Get the probe manager for this object. | |
| virtual Port & | getPort (const std::string &if_name, PortID idx=InvalidPortID) |
| Get a port with a given name and index. | |
| virtual void | startup () |
| startup() is the final initialization call before simulation. | |
| DrainState | drain () override |
| Provide a default implementation of the drain interface for objects that don't need draining. | |
| virtual void | memWriteback () |
| Write back dirty buffers to memory using functional writes. | |
| virtual void | memInvalidate () |
| Invalidate the contents of memory buffers. | |
| void | serialize (CheckpointOut &cp) const override |
| Serialize an object. | |
| void | unserialize (CheckpointIn &cp) override |
| Unserialize an object. | |
| Public Member Functions inherited from gem5::EventManager | |
| EventQueue * | eventQueue () const |
| void | schedule (Event &event, Tick when) |
| void | deschedule (Event &event) |
| void | reschedule (Event &event, Tick when, bool always=false) |
| void | schedule (Event *event, Tick when) |
| void | deschedule (Event *event) |
| void | reschedule (Event *event, Tick when, bool always=false) |
| void | wakeupEventQueue (Tick when=(Tick) -1) |
| This function is not needed by the usual gem5 event loop but may be necessary in derived EventQueues which host gem5 on other schedulers. | |
| void | setCurTick (Tick newVal) |
| EventManager (EventManager &em) | |
| Event manger manages events in the event queue. | |
| EventManager (EventManager *em) | |
| EventManager (EventQueue *eq) | |
| Public Member Functions inherited from gem5::Serializable | |
| Serializable () | |
| virtual | ~Serializable () |
| virtual void | serialize (CheckpointOut &cp) const =0 |
| Serialize an object. | |
| virtual void | unserialize (CheckpointIn &cp)=0 |
| Unserialize an object. | |
| void | serializeSection (CheckpointOut &cp, const char *name) const |
| Serialize an object into a new section. | |
| void | serializeSection (CheckpointOut &cp, const std::string &name) const |
| void | unserializeSection (CheckpointIn &cp, const char *name) |
| Unserialize an a child object. | |
| void | unserializeSection (CheckpointIn &cp, const std::string &name) |
| Public Member Functions inherited from gem5::Drainable | |
| DrainState | drainState () const |
| Return the current drain state of an object. | |
| virtual void | notifyFork () |
| Notify a child process of a fork. | |
| Public Member Functions inherited from gem5::statistics::Group | |
| Group (Group *parent, const char *name=nullptr) | |
| Construct a new statistics group. | |
| virtual | ~Group () |
| virtual void | regStats () |
| Callback to set stat parameters. | |
| virtual void | resetStats () |
| Callback to reset stats. | |
| virtual void | preDumpStats () |
| Callback before stats are dumped. | |
| void | addStat (statistics::Info *info) |
| Register a stat with this group. | |
| const std::map< std::string, Group * > & | getStatGroups () const |
| Get all child groups associated with this object. | |
| const std::vector< Info * > & | getStats () const |
| Get all stats associated with this object. | |
| void | addStatGroup (const char *name, Group *block) |
| Add a stat block as a child of this block. | |
| const Info * | resolveStat (std::string name) const |
| Resolve a stat by its name within this group. | |
| void | mergeStatGroup (Group *block) |
| Merge the contents (stats & children) of a block to this block. | |
| Group (const Group &)=delete | |
| Group & | operator= (const Group &)=delete |
| Public Member Functions inherited from gem5::Named | |
| Named (const std::string &name_) | |
| virtual | ~Named ()=default |
| virtual std::string | name () const |
Additional Inherited Members | |
| Public Types inherited from gem5::SimObject | |
| typedef SimObjectParams | Params |
| Static Public Member Functions inherited from gem5::SimObject | |
| static void | serializeAll (const std::string &cpt_dir) |
| Create a checkpoint by serializing all SimObjects in the system. | |
| static SimObject * | find (const char *name) |
| Find the SimObject with the given name and return a pointer to it. | |
| static void | setSimObjectResolver (SimObjectResolver *resolver) |
| There is a single object name resolver, and it is only set when simulation is restoring from checkpoints. | |
| static SimObjectResolver * | getSimObjectResolver () |
| There is a single object name resolver, and it is only set when simulation is restoring from checkpoints. | |
| Static Public Member Functions inherited from gem5::Serializable | |
| static const std::string & | currentSection () |
| Gets the fully-qualified name of the active section. | |
| static void | generateCheckpointOut (const std::string &cpt_dir, std::ofstream &outstream) |
| Generate a checkpoint file so that the serialization can be routed to it. | |
| Protected Member Functions inherited from gem5::Workload | |
| virtual Addr | fixFuncEventAddr (Addr addr) const |
| Protected Member Functions inherited from gem5::Drainable | |
| Drainable () | |
| virtual | ~Drainable () |
| virtual DrainState | drain ()=0 |
| Draining is the process of clearing out the states of SimObjects.These are the SimObjects that are partially executed or are partially in flight. | |
| virtual void | drainResume () |
| Resume execution after a successful drain. | |
| void | signalDrainDone () const |
| Signal that an object is drained. | |
| Protected Attributes inherited from gem5::KernelWorkload | |
| loader::MemoryImage | image |
| Addr | _loadAddrMask |
| Mask that should be anded for binary/symbol loading. | |
| Addr | _loadAddrOffset |
| Offset that should be used for binary/symbol loading. | |
| Addr | _start |
| Addr | _end |
| std::vector< loader::ObjectFile * > | extras |
| loader::ObjectFile * | kernelObj = nullptr |
| loader::SymbolTable | kernelSymtab |
| const std::string | commandLine |
| Protected Attributes inherited from gem5::Workload | |
| gem5::Workload::WorkloadStats | stats |
| BaseRemoteGDB * | gdb = nullptr |
| bool | waitForRemoteGDB = false |
| std::set< ThreadContext * > | threads |
| System * | system = nullptr |
| Protected Attributes inherited from gem5::SimObject | |
| const SimObjectParams & | _params |
| Cached copy of the object parameters. | |
| Protected Attributes inherited from gem5::EventManager | |
| EventQueue * | eventq |
| A pointer to this object's event queue. | |
Detailed Description
Definition at line 42 of file fs_workload.hh.
Constructor & Destructor Documentation
◆ FsLinux()
|
inline |
Definition at line 46 of file fs_workload.hh.
Member Function Documentation
◆ byteOrder()
|
inlineoverridevirtual |
Implements gem5::Workload.
Definition at line 58 of file fs_workload.hh.
◆ initState()
|
overridevirtual |
initState() is called on each SimObject when not restoring from a checkpoint.
This provides a hook for state initializations that are only required for a "cold start".
Reimplemented from gem5::SimObject.
Definition at line 45 of file fs_workload.cc.
References gem5::RiscvISA::int_reg::A1, gem5::KernelWorkload::commandLine, inform, gem5::KernelWorkload::initState(), gem5::RiscvISA::Reset::invoke(), gem5::SimObject::params(), gem5::System::physProxy, gem5::Workload::system, gem5::System::threads, and warn.
◆ PARAMS()
| gem5::RiscvISA::FsLinux::PARAMS | ( | RiscvLinux | ) |
◆ setSystem()
|
inlineoverridevirtual |
Reimplemented from gem5::Workload.
Definition at line 51 of file fs_workload.hh.
References gem5::Workload::gdb, gem5::SimObject::params(), gem5::Workload::setSystem(), and gem5::Workload::system.
The documentation for this class was generated from the following files:
- arch/riscv/linux/fs_workload.hh
- arch/riscv/linux/fs_workload.cc
