#include <sc_signal.hh>

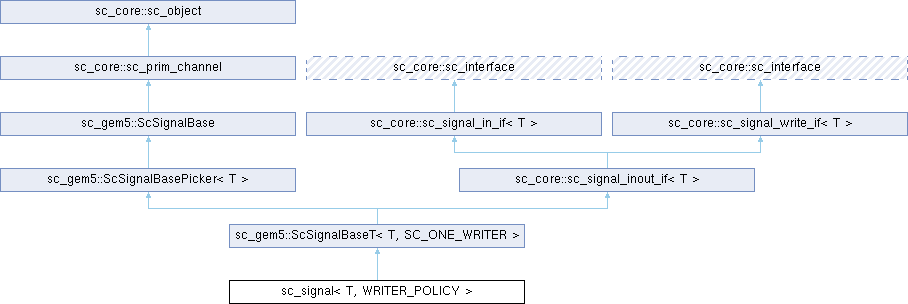

Inheritance diagram for sc_signal< T, WRITER_POLICY >:

Public Member Functions
	sc_signal ()

	sc_signal (const char *name)

	sc_signal (const char *name, const T &initial_value)

virtual	~sc_signal ()

sc_signal< T, WRITER_POLICY > &	operator= (const T &t)

sc_signal< T, WRITER_POLICY > &	operator= (const sc_signal< T, WRITER_POLICY > &s)

Public Member Functions inherited from sc_gem5::ScSignalBaseT< T, SC_ONE_WRITER >
	ScSignalBaseT (const char *_name)

	ScSignalBaseT (const char *_name, const T &initial_value)

virtual	~ScSignalBaseT ()

virtual void	register_port (sc_core::sc_port_base &port, const char *iface_type_name)

virtual const T &	read () const

	operator const T & () const

virtual void	write (const T &t)

virtual const sc_core::sc_event &	default_event () const

virtual const sc_core::sc_event &	value_changed_event () const

virtual void	print (std::ostream &os=std::cout) const

virtual void	dump (std::ostream &os=std::cout) const

virtual bool	event () const

virtual sc_core::sc_writer_policy	get_writer_policy () const

Public Member Functions inherited from sc_gem5::ScSignalBase
virtual const char *	kind () const

Public Member Functions inherited from sc_core::sc_object
const char *	name () const

const char *	basename () const

virtual const std::vector< sc_object * > &	get_child_objects () const

virtual const std::vector< sc_event * > &	get_child_events () const

sc_object *	get_parent_object () const

bool	add_attribute (sc_attr_base &)

sc_attr_base *	get_attribute (const std::string &)

sc_attr_base *	remove_attribute (const std::string &)

void	remove_all_attributes ()

int	num_attributes () const

sc_attr_cltn &	attr_cltn ()

const sc_attr_cltn &	attr_cltn () const

sc_simcontext *	simcontext () const

Public Member Functions inherited from sc_core::sc_interface
virtual	~sc_interface ()

Protected Member Functions
virtual void	update ()

Protected Member Functions inherited from sc_gem5::ScSignalBasePicker< T >
	ScSignalBasePicker (const char *_name)

Protected Member Functions inherited from sc_gem5::ScSignalBase
	ScSignalBase (const char *_name)

virtual	~ScSignalBase ()

const sc_core::sc_event &	defaultEvent () const

const sc_core::sc_event &	valueChangedEvent () const

bool	event () const

void	_signalChange ()

Protected Member Functions inherited from sc_core::sc_prim_channel
	sc_prim_channel ()

	sc_prim_channel (const char *)

virtual	~sc_prim_channel ()

void	request_update ()

void	async_request_update ()

void	next_trigger ()

void	next_trigger (const sc_event &)

void	next_trigger (const sc_event_or_list &)

void	next_trigger (const sc_event_and_list &)

void	next_trigger (const sc_time &)

void	next_trigger (double, sc_time_unit)

void	next_trigger (const sc_time &, const sc_event &)

void	next_trigger (double, sc_time_unit, const sc_event &)

void	next_trigger (const sc_time &, const sc_event_or_list &)

void	next_trigger (double, sc_time_unit, const sc_event_or_list &)

void	next_trigger (const sc_time &, const sc_event_and_list &)

void	next_trigger (double, sc_time_unit, const sc_event_and_list &)

bool	timed_out ()

void	wait ()

void	wait (int)

void	wait (const sc_event &)

void	wait (const sc_event_or_list &)

void	wait (const sc_event_and_list &)

void	wait (const sc_time &)

void	wait (double, sc_time_unit)

void	wait (const sc_time &, const sc_event &)

void	wait (double, sc_time_unit, const sc_event &)

void	wait (const sc_time &, const sc_event_or_list &)

void	wait (double, sc_time_unit, const sc_event_or_list &)

void	wait (const sc_time &, const sc_event_and_list &)

void	wait (double, sc_time_unit, const sc_event_and_list &)

virtual void	before_end_of_elaboration ()

virtual void	end_of_elaboration ()

virtual void	start_of_simulation ()

virtual void	end_of_simulation ()

Protected Member Functions inherited from sc_core::sc_object
	sc_object ()

	sc_object (const char *)

	sc_object (const sc_object &)

sc_object &	operator= (const sc_object &)

virtual	~sc_object ()

Protected Member Functions inherited from sc_core::sc_signal_inout_if< T >
	sc_signal_inout_if ()

Protected Member Functions inherited from sc_core::sc_signal_in_if< T >
	sc_signal_in_if ()

Protected Member Functions inherited from sc_core::sc_interface
	sc_interface ()

Protected Member Functions inherited from sc_core::sc_signal_write_if< T >
	sc_signal_write_if ()

Private Member Functions
	sc_signal (const sc_signal< T, WRITER_POLICY > &)

Additional Inherited Members
Protected Attributes inherited from sc_gem5::ScSignalBaseT< T, SC_ONE_WRITER >
T	m_cur_val

T	m_new_val

WriteChecker< WRITER_POLICY >	_checker

Protected Attributes inherited from sc_gem5::ScSignalBase
InternalScEvent	_valueChangedEvent

uint64_t	_changeStamp

sc_core::sc_port_base *	_gem5WriterPort

Detailed Description

template<class T, sc_writer_policy WRITER_POLICY = SC_ONE_WRITER>
class sc_signal< T, WRITER_POLICY >

Definition at line 272 of file sc_signal.hh.
